Used Small Wood Chipper/disk Wood Chipper

Used Small Wood Chipper/disk Wood Chipper photo-1

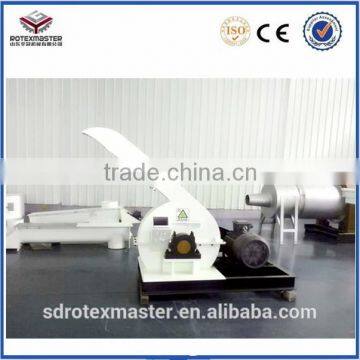

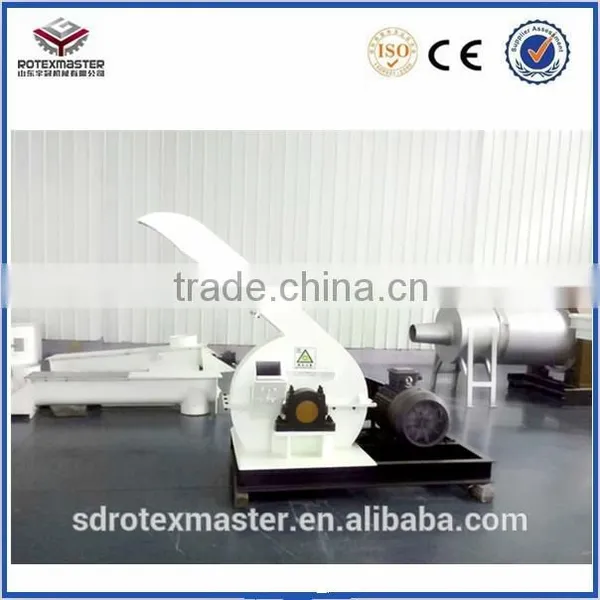

Used Small Wood Chipper/disk Wood Chipper photo-2

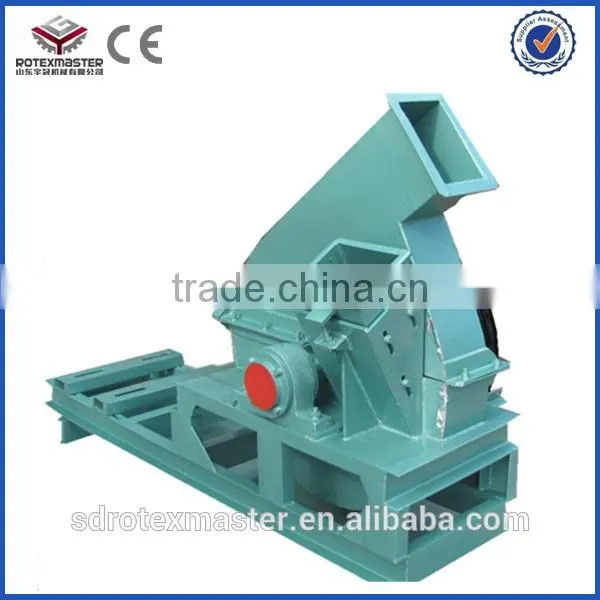

Used Small Wood Chipper/disk Wood Chipper photo-3

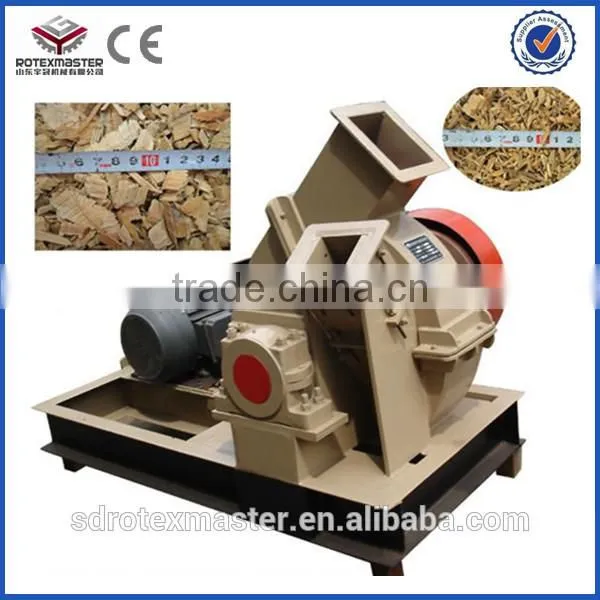

Used Small Wood Chipper/disk Wood Chipper photo-4
Used Small Wood Chipper/disk Wood Chipper photo-5

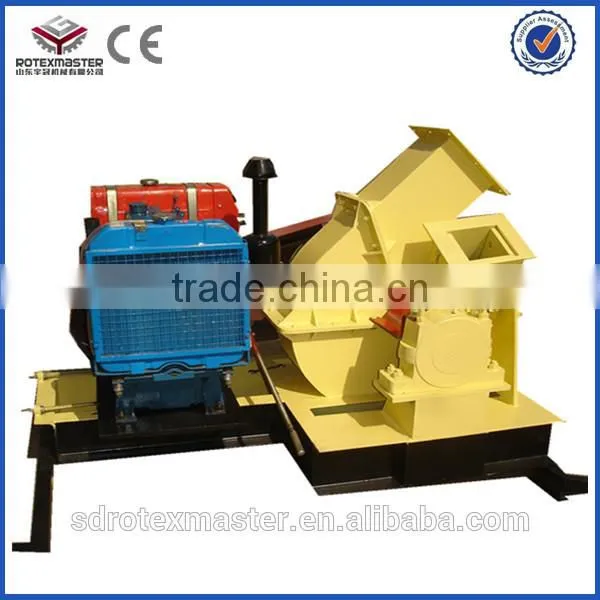

Used Small Wood Chipper/disk Wood Chipper photo-6
US$ 8,600 - 8,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Making Wood Shavings
Production Capacity:
2-4t/h
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Making Wood Shavings
Production Capacity 2-4t/h
Place of Origin Shandong, China
Brand Name ROTEXMASTER
Model Number YPX35-160
Voltage 380V
Power(W) 55kw
Certification CE & ISO9001 & SGS
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

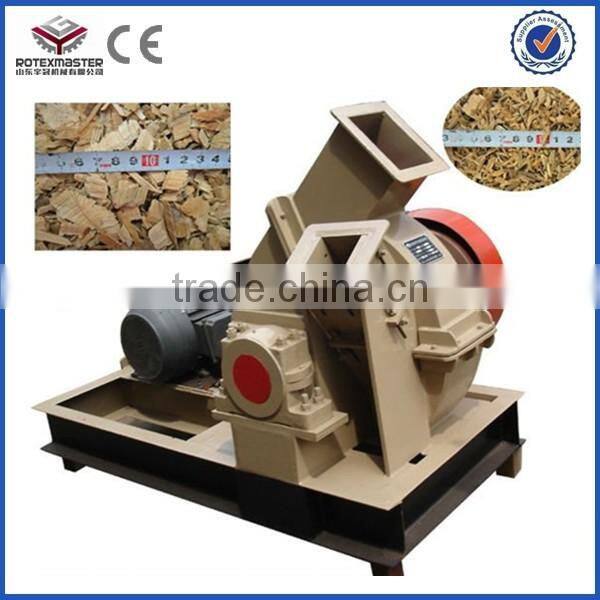

Used small wood chipper/disk wood chipper



Products Introduction of disc wood chipper:



(1)This series wood chipper has the different output, the customer can select YPX15-80,YPX35-160,YPX45-250 Disc Wood Chipper  according to their own needs.







 (2)Wood chipper series are special equipment , which is used to produce high quality chips, widely used in the preparation department of the industry production for pellet making,paper making, flake-board MDF, and single wood chips production base, and use log as cutting material.





(3)Chipping and pulverizing wood, tree trunk, stalk, bamboo, wooden blocks, tree branches, tree leaves, tree bark, animal feed, chemical raw material etc. This machine can use electric motor, diesel engine, gasoline engine etc. as driving force.





Used small wood chipper/disk wood chipper







Technical Parameters of disc wood shredder:





                Model

  YPX15-80

  YPX35-160

  YPX45-250

        Feeder size (cm)

      15*15

       35*35

      45*45

 Rotary blade quantity (pcs)

            3

              6

            6

     Cutter speed (r/min)

           661

            400

          270

   Max wood diameter( mm)

           150

            350

          450

      Output(ton/h)

            1-2

           2-4

         6-8

    Main motor power( Kw)

            22

             75

          132

    Weight ( Ton)

           1.25

            2.7

           5.2

    External size(mm)

1800*946*1285

3150*1500*1800

4600*2200*2900







Advantages

  • Firm and reasonable structure;
  • Easy to install;
  • Convenient to operate and maintain;
  • High production capacity;
  • Final wood chip has fine quality;
  • Length of the wood chips can be adjusted freely in the defined limits.

   Used small wood chipper/disk wood chipper





After-sales Service:



We abide by the principle of service first,quality first,brand first,reputation first,supply the best, professional service to solve your problem.

We promise:

1. Provide one-year warranty.
2. The price of wearing parts will not higher than the market price.

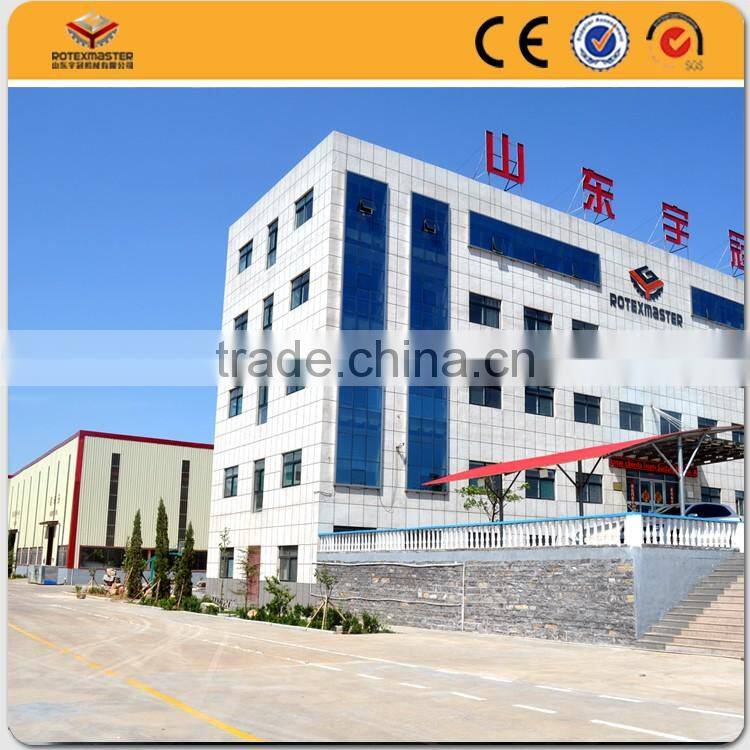

Company Information





Shandong Rotex Machinery.,Co.Ltd, Which located in Jinan , Capital of Shandong Province.  We are doing biomass fuel machinery, fodder farming ma,chinery, and supporting the auxiliary equipment of drying, cooling,dust removal equipment and other machinery products, the main products:Flat Die Pellet Machine , Ring Die Wood Pellet Machine , Drum Wood Chipper and Hammer Mill two series ; Air Flow, Rotary Dryer ,Cooling Equipment and other two series of Screener, Belt Conveyors and other equipments .




 Used small wood chipper/disk wood chipperUsed small wood chipper/disk wood chipperUsed small wood chipper/disk wood chipper
