128MB Fast Speed High Precise A4 & A3 Vinyl Laser Cutting Plotter

128MB Fast Speed High Precise A4 & A3 Vinyl Laser Cutting Plotter photo-1

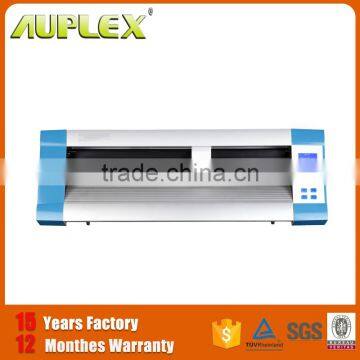

128MB Fast Speed High Precise A4 & A3 Vinyl Laser Cutting Plotter photo-2
128MB Fast Speed High Precise A4 & A3 Vinyl Laser Cutting Plotter photo-3

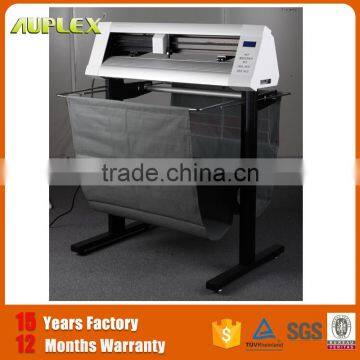

128MB Fast Speed High Precise A4 & A3 Vinyl Laser Cutting Plotter photo-4

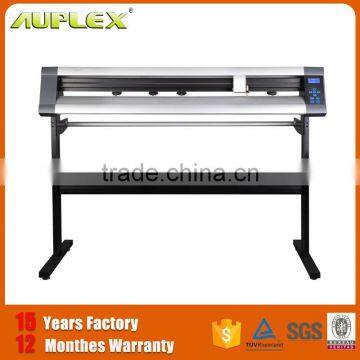

128MB Fast Speed High Precise A4 & A3 Vinyl Laser Cutting Plotter photo-5
US$ 300 - 700 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Teneth
Model Number:
APH330/APH630/APH1200/APH1500
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Teneth
Model Number APH330/APH630/APH1200/APH1500
Voltage 110V/220V
Cache Capacity 128MB
Paper Feed Width 430mm/730mm/1300mm/1600mm
Cutter Pressure 0-500g
Cutting Width 330mm/630mm/1200mm/1500mm
Cutting Speed 650mm/s
Driver High Speed Step Motor, High speed stepping motor, micro-step driver
Cutting Length Unlimited Length
Repeat Cutting 0.1mm
Size 1045*330*395mm
Product Description

Features:

1. 128MB Memory
2. High precision steel roller: guarantee 5 meters without diviation of paper feeding
3. Low noise: Work in quiet
4. High performance 32-bit processor
5. Support to cut 2mm letters
6.Can work with U disc directly

Parameters:

MODEL
APH330
APH630
APH1200
APH1500
Maximum Paper Feed Width
430mm
730mm
1300mm
1600mm
Maximum Cutting Width
330mm
630mm
1200mm
1500mm
Packing Size
745X330X375
1045X330X375
1590X330X375
1890X330X375
Weight
15kg
23kg
33kg
45kg
Main Board
High-performance & intelligent ARM 32 CPU; 128MB memory
Driver
High speed stepping motor, micro-step driver
Maximum Cutting Speed
650mm/s
Cutting Force
0-500g (digital adjustment)
Max Cutting Thickness
0.5mm
Mechanical Precision
0.02mm
Repeatable Precision
< +-0.05mm
Plotter Instruction
DM-PL/HP-GL Automatic Identification
Interfaces
USB / Serial port, U-disc port
Power Supply
110V /220V±10%, 50Hz/60Hz
Laser point Positioning
Contour cutting function; Compatible with Flexi10, Artcut, Signcut, signmaster, coreldraw (Should buy laser sensor contour function)
Noise at Work
≤65 DB

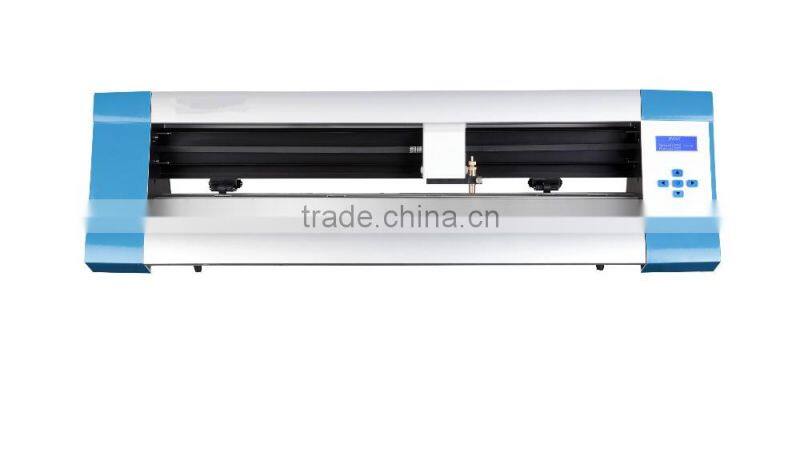

APH330 & APH630 Without floor stand:

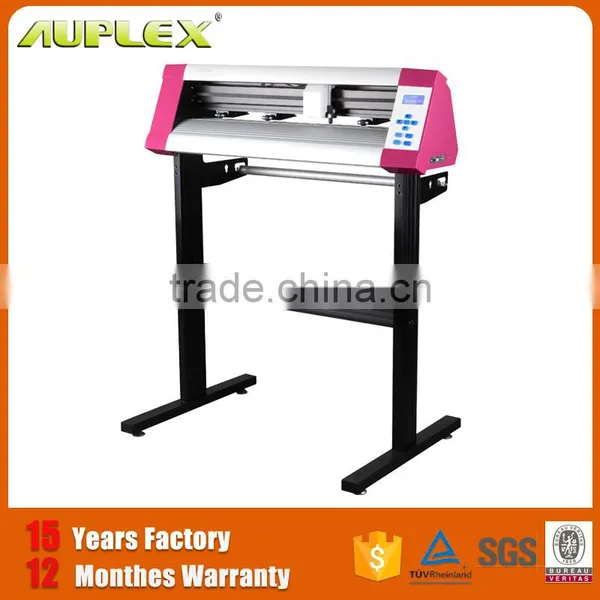

APH330& APH630 with floor stand:

MODEL
APH330
APH630
Maximum Paper Feed Width
430mm
730mm
Maximum Cutting Width
330mm
630mm

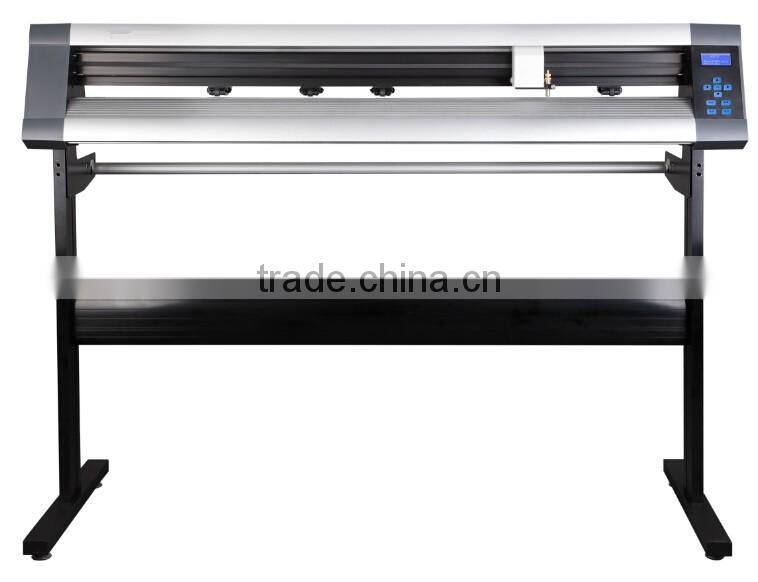

APH1200& APH1500:

MODEL
APH1200
APH1500
Maximum Paper Feed Width
1300mm
1600mm
Maximum Cutting Width
1200mm
1500mm

Free Accessory:

 1 x Power
1 x Manual (Instruction and drive)
1 x Blade holder
3 x Blade
1 x Pen holder
1 x RS232 data cable
1 x USB data cable

Related Products

  Top Grade PU Vinyl Transfer Vinyl

        Rotary Manual Heat press Printer

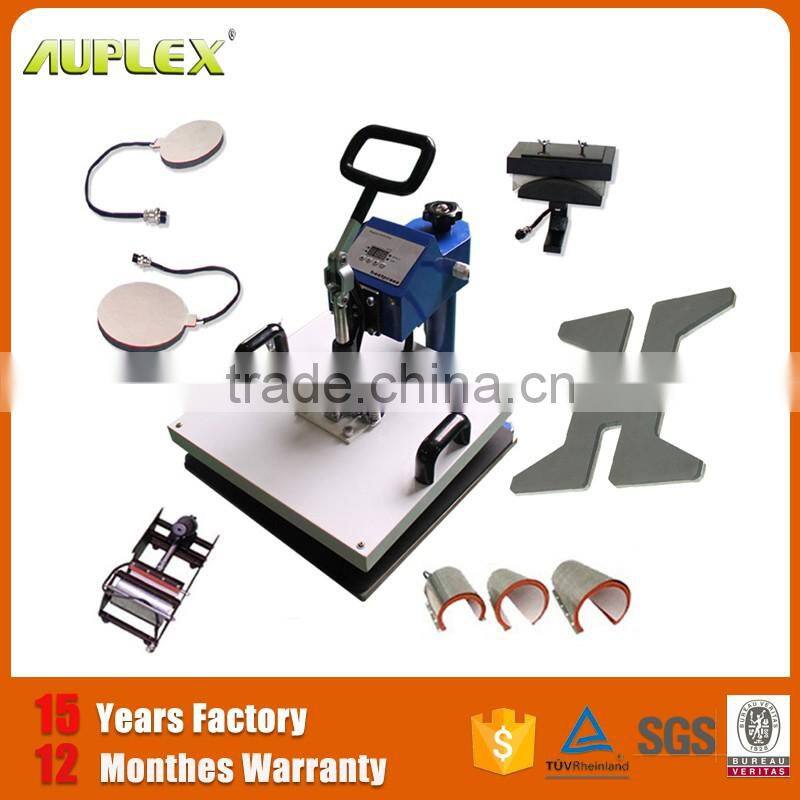

    9 In 1 Combo Heat Press Machine

Packaging & Shipping

Packaging:
The packing is very important when transporting the goods.
We have the excellent packing to make sure the goods will safely arrive to your hand.
Inner packing: with PE foam bag to protection the product.
Outer packing: hard carton.


Shipping:
» The small quantity order we will use FEDEX, UPS or DHL to shipping the goods, delivery in 7-10 days.
»The large quantity order we will send by sea, we can accept EXW, FOB and CIF.
» We will ship out your order within 2-3 working days after verification of the payment and confirmation of the order.
» We always try our best to ship as fast as we can, in case of any delay, we let you know in advance.
» The items price and / or shipping cost does not include any import taxes, customs fees, brokerage fees, import duties and any other.
» The buyer is responsible for any import taxes, customs fees, brokerage fees, import duties and any other taxes.
» We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may result in the delay of your parcels.
