Home > Products > Cutting Plotter > Standard 360mm Vinly paper Cutting Plotter (PC-360C)

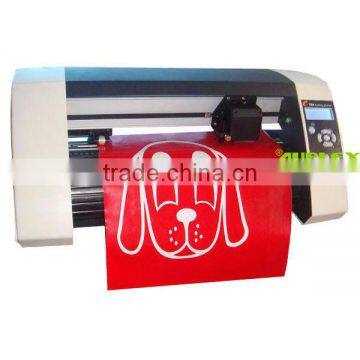

Standard 360mm Vinly paper Cutting Plotter (PC-360C)
- 3200 Piece / Pieces per Month
- Fuzhou Guangzhou Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Hot Sale vinyl cutting plotter for vinyl sticker(1600mm / 1300mm /750mm /450mm cutting size available)
- Factory Supply 1300mm Paper Vinyl Sticker Graphic Cutting Plotter Machine for sale (450mm/750mm/1600mm option)
- laser vinyl plotter /laser vinyl cutter/laser plotter paper
- USB driver contour vinyl cutting plotter
- Factory direct sell 28'' Vinyl Cutter Plotter Machine with Artcut or signmaster Software 2 Pinch Rollers
- Color Inject Printer
Product Details
Place of Origin: | Fujian, China | Brand Name: | AUPLEX | Model Number: | PC-360C |
Voltage: | 220V/110V | Paper Feed Width: | 360mm | Cutter Pressure: | 50-500g |
Cutting Width: | 300mm | Cutting Speed: | 50-800mm/s | Size: | 67*35*35cm |
Product Description
Specifications
Standard 360mm Vinly Paper Cutting Plotter (PC-360C)1.max paper width:360mm
2.max cut width:300mm
3.size:67*35*35cm
Standard 360mm Vinly Paper Cutting Plotter (PC-360C)
Basic Info.
name: cutter plotter
model: PC-360C
max paper width:360mm
max cut width:300mm
Motor | Original imported high speed stepper Motor | |||||
Cutting pressure/Speed | 50-500g / 50-800mm/s | |||||
Cartriage(Whole Aluminum) | Whole aluminum Cartriage with Imported Gear inside. | |||||
Mechanical Resolution | 0.0254mm/Step(0.001"/step) | |||||
Stands | Yes, All comes with Stand besides PC-360C | |||||
Interface/EMS-memory | Serial+USB / 4M | |||||
Control language | DMPL/HPGL | |||||
Cutting test | Yes | |||||
Curve flat cutting | Yes | |||||
Power | AC90V--240V | |||||
Cutting knife soft loading | Yes | |||||
Working temperature | 5C°-35C° | |||||
Working humidity | 5%-95% (Non Condensing) | |||||
Type of cutter | Long longevity high-speed carbon alloy-steel cutter | |||||
Drawing instruction | PL/HT-GL(TM) |
What can be cut on this cutter plotter?
Sublimation paper
Vinyls (PU/PVC)
Usage of vinyls & paper
How to pack?
Carton with foam inside
1pc/carton
G.W.: 16kg
size:67*35*35cm
All machines already passed CE & SGS tests.
You can choose plug
After Sale Service
1.One year warranty on whole machine/parts
2.Free lifetime tecnology support on all orders
Fujian Auplex Appliance Co., Ltd have 12 years producing experience and 7000 square meters factory. We offer a wide range of quality heat press machines and related sublimation consuming materials. By better controlling product quality and after-sales our products sold all over the world. Our goal is to become NO.1 supplier for heat press machines and sublimation materials in the world, as we have strong R&D team, selling group and better after-sales system.
You could send email, fax or phone us, told us what informations you want (such as air/sea freight, prices and so on), we will reply you in time, then you will know better about our products and service.
2. Why we have to buy products from you?
We are one of the largest and best manufacture of heat press machines in China,we have many year’s experience in producing heat press equipments, the quality and prices of our machines/materials are superior to others. And we have specialized marketing group and technical team, we could provide the best service, advice, help to you.
3.How can I receive your goods?
If you order little quantities(below 100KG)you could use DHL, TNT, UPS or other air express company to delivery your goods, delivery time usually 3-4 working days, they will send the products you order to your address.
If you order large quantities, you could use sea delivery, and you need to go to your nearest seaport to take your goods, delivery time usually 30-40 days.
For more details, please contact with us.
4. Way of payment.
We only accept the T/T(means you need to pay your payment to our bank account) or Western Union, when we receive your payment, we will prepare your goods and send for you in time. If you order large quantities, you could pay 30% deposit to us, when all the goods ready, we will take photos, then you could check it. When we receive your rest payment, we delivery the goods at once. For more details, please contact with us.
5. How become your sole agent?
When you reach our request quantities, you could become our sole agent in your country. For more details, please contact with us.
....
