24V 12V buck switch turn 12V 36V 48V car power converter switch 12V2A DC-DC step-down module

Product Name: 24V 12V buck switch turn 12V 36V 48V car power converter switch 12V2A DC-DC step-down module

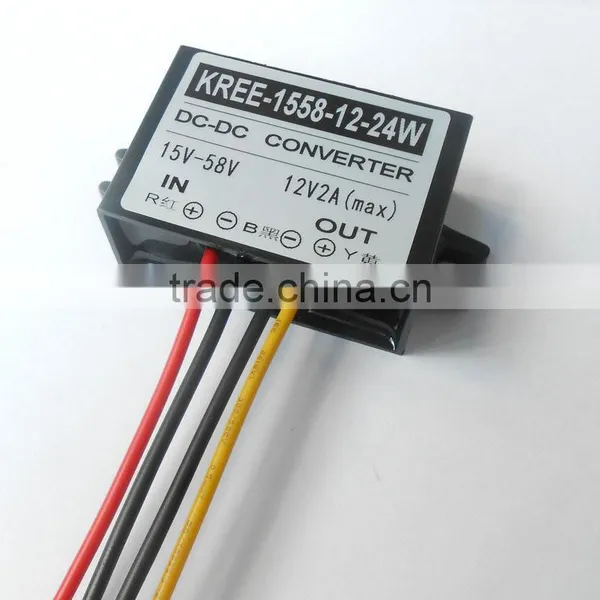

Product Type: KREE-1558-12-24W
Color classification:
Product details: Input voltage: (between DC15V-58V)
 Output voltage: DC12V
 Output Current: 2A
 Output Power: 24W
 Conversion efficiency: up to 96% of the output ripple: 50mV (MAX)
 Operating temperature: Industrial grade (-40 ℃ to + 85 ℃)
 Volume: 46 * 32 * 18mm
 Weight: 53 g

 Features

1. Imported integrated switching regulator module manufacturing.

2. synchronous rectification, the conversion rate of 96% or more, very low heat.

3. over-voltage, over-current, over-temperature, short circuit protection automatic braking function, and work after recovery conditions.

4. epoxy potting, waterproof, shock, moisture and dust.

5. The line length is about 15CM, slim, small size, easy installation.

6. Connection: Enter the red (+) black line (-), the output of the yellow line (+) black (-).

7. Scope: bus, CMB, large trucks, motor car, solar power, bus display, taxi advertising screen, absolute taxi radio without interference, car audio, LCD TVs, LED, intercom and monitoring systems .

Note:
1. Please strictly follow the characters wiring, otherwise it may damage the power supply module, the output voltage polarity is reversed may damage electrical equipment.
2. To ensure that the module can output enough voltage and power, make sure there is adequate input supply voltage and power.
3. Please average output of more output with load line, please hasty merger with load.
4. It should be noted the maximum current output value reached thermal power module (module to give the best to leave some of the current margin, which last longer, do not use the maximum possible)
