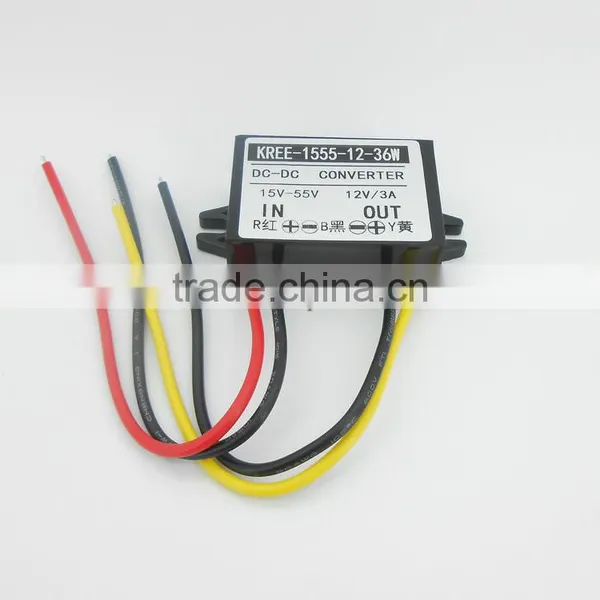

24V36V48V Turn 12V3A Power Converter Module DC-DC Buck Regulator 12V 15V to 55V

Product Name: 24V36V48V turn 12V3A power converter module DC-DC buck regulator 12V 15V to 55V

switch module
Product Type: KREE-1555-12-36W
Color classification:
Product details: The parameter table
Input voltage: (DC15V-55V between)
Output voltage: DC12V
Output Current: 3A
Output Power: 36W
Conversion efficiency: up to 96% of the output ripple: 50mV (MAX)
Operating temperature: Industrial grade (-40 ℃ to + 85 ℃)
Volume: 46 * 32 * 18mm
Weight: 53 g

Features

1. Imported integrated switching regulator module manufacturing.

2. synchronous rectification, the conversion rate of 96% or more, very low heat.

3. reverse polarity protection, over-voltage, over-current, over-temperature, short circuit protection

automatic braking function, and work in the conditions of recovery.

4. epoxy potting, waterproof, shock, moisture and dust.

5. The line length is about 15CM, slim, small size, easy installation.

6. Connection: Enter the red (+) black line (-), the output of the yellow line (+) black (-).

7. Scope: bus, CMB, large trucks, motor car, solar power, bus display, taxi advertising screen, absolute taxi

radio without interference, car audio, LCD TVs, LED, intercom and monitoring systems .
