24V 12V buck switch turn 12V 36V 48V car power converter switch 12V2A DC-DC step-down module

  Product Name: 24V36V48V turn 12V3A DC-DC step-down DC-DC power modules onboard vehicle power converters
Model: KREE-501203
Color classification:
Product details:
1. Nature: DC / DC non-isolated step-down power
2. Input voltage: 15-52v
3, the output voltage: 12v
4, the output current: 3A, 2A or less work in the long term
5, the conversion rate: more than 85%
6, wiring, wiring as follows:
Input: red (+) black line (-)
Output: the yellow line (+) black line (-)

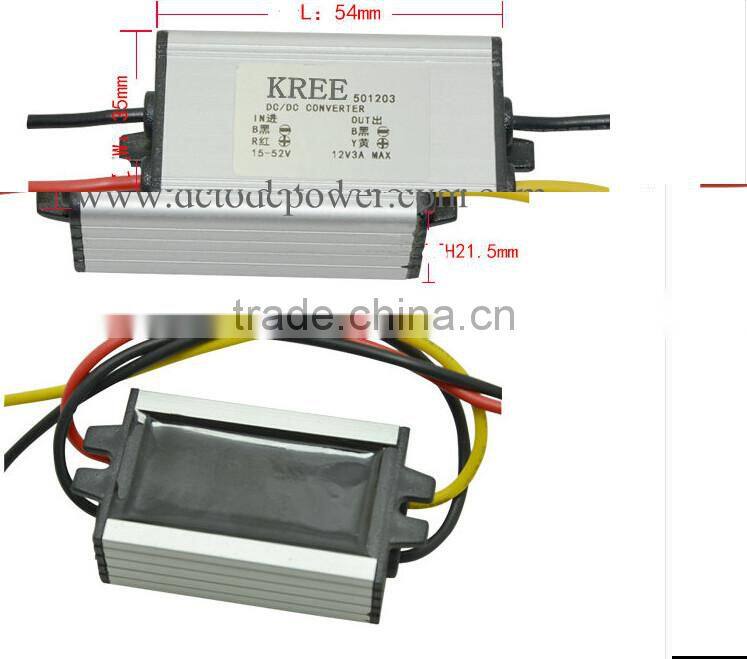

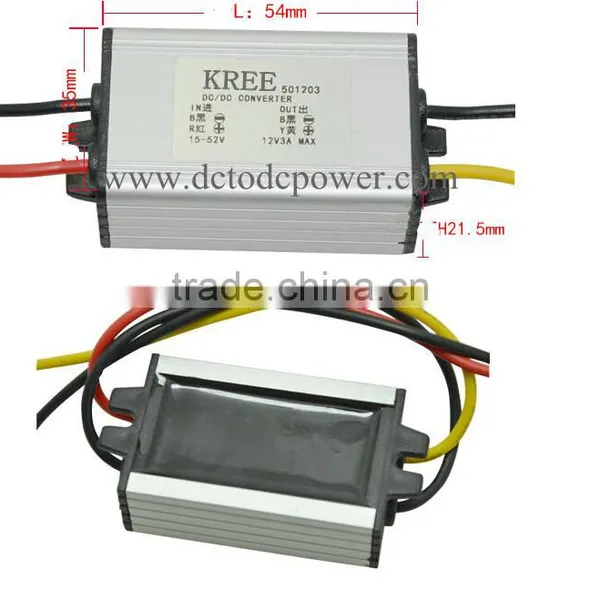

7, volume size: 54 * 35 * 21.5mm (L * W * H)
About 70g: 8, by weight
9, the protection function: input reverse polarity protection, over-current, over-temperature protection
10. Working temperature: -25-65, limit -40-80
11, the main features: imported components, stable performance, reliable, potting process, earthquake, moisture, dust, adapt to harsh environments
