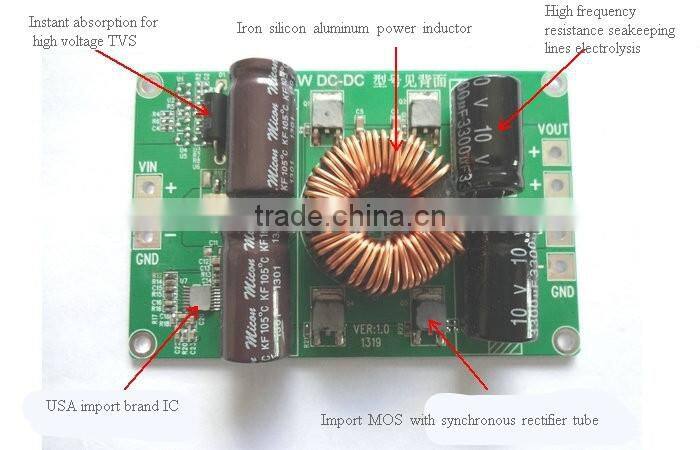

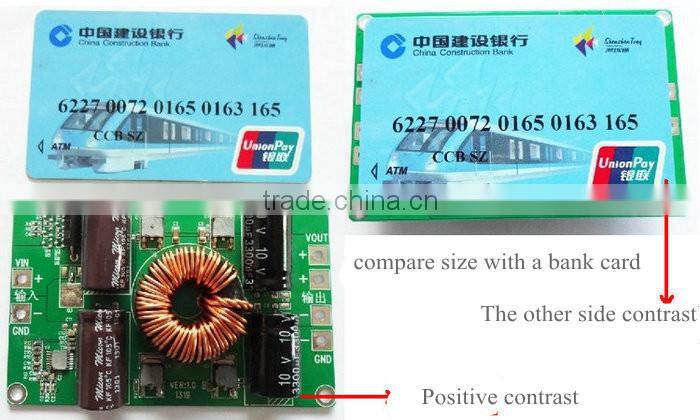

12V24V Turn 5V100W Power Converter 24V 12V Power Supply Board Display Turn 5V20A Turn 5V20A

Product Name: 12V24V turn 5V100W power converter 24V 12V power supply board display turn 5V20A turn 5V20A
Model: XW-12V24V-5V20A
Color classification:
Product details: Input voltage: DC12V / 24V / 36V (Wide Voltage 8.5V-40V)

Output Voltage: DC: 5V, Output current: 20A 100W

40A peak output current

Efficient conversion rate: more than 93%

Volume Specifications: 92 * 60 * 18MM (L * W * H)

Weight: 85 g / month

Imports of the main components, enough power, stable performance,

Welding wire mode, the connection as follows:
VIN: Enter the cathode;
VOUT: 5V output positive

GND: negative

The power supply is a set of input, two outputs

Protection:
Enter the high-voltage transient protection, output overcurrent protection, output short circuit protection, thermal protection chip.
Ripple: 100MV, working temperature: -40 ℃ ~ + 85 ℃ (Industrial Temperature)
Sale: One year warranty!
Penny, a half a point, we must compare the performance parameters compare prices at relatively the same time, there are a lot of car display power propaganda 20A 12A only real long-term work following publicity actually only 5A or 6A 10A on the market. Our 5V20A this power supply is absolutely enough publicity output, which is long-term 20A output no problems, long-term work with 8 cell plate, is the truth! Industry leader! Quality after-sale protection!
Fix a little common sense: Many customers are concerned with power 20A 20A can not be used on the following devices will burn it? I'm here to tell you, of course, can not burn, this power is our constant voltage output, the output current is adaptive, long-term work should not exceed 20A current on the line. No-load current is very small, your device needs to 10A on the 10A, 8A is a need 8A, that is, your device is 1A ,, 2A, 3A, 5A, 6A, 7A, 8A, 9A, 10A, 12A, 15A , 18A, 20A can be used, you can rest assured in 20A or less. Instead, your device then you need to choose the smaller the current power supply actually a little big more secure. Such power has margin, no heat, more secure, more reliable! I think I have said enough to understand, I hope you buy!
