AC12V24V Turn DC5V4A Car Power Adapter AC-DC Buck 12V24V Turn 5V4A3A2A1A

Product Name: AC12V24V turn DC5V4A car power adapter AC-DC buck 12V24V turn 5V4A3A2A1A

Keywords: power converter
Product Details
Brand: KREE
Model: KREE-AC24-DC5-20W
Parameters Table
? Input voltage: AC: 24V (wide voltage 16V-28V) or DC (wide voltage 8V-40V)
? Output Voltage: DC: 5V
? Output Current: 4A peak current MAX: 5A
? Output Power: 20W
? Efficient conversion rate: more than 96% Ripple: 80MV
? Working temperature: -40 ℃ ~ + 85 ℃

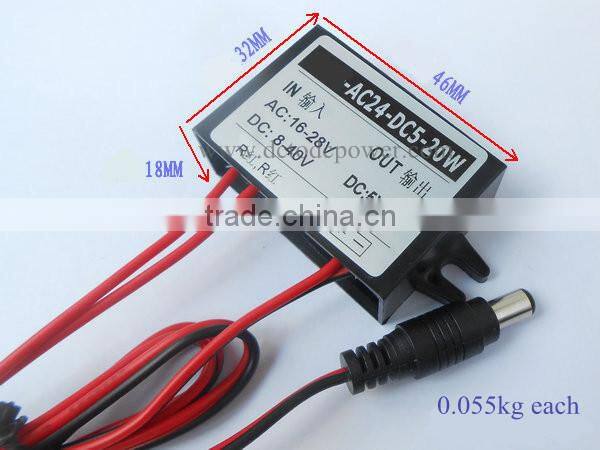

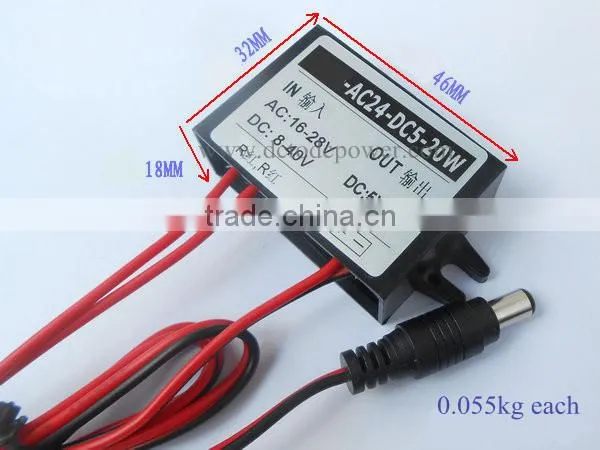

? Volume Specifications: 46 * 32 * 18MM (L * W * H)
? Weight: 0.055KG / a
Product Description:

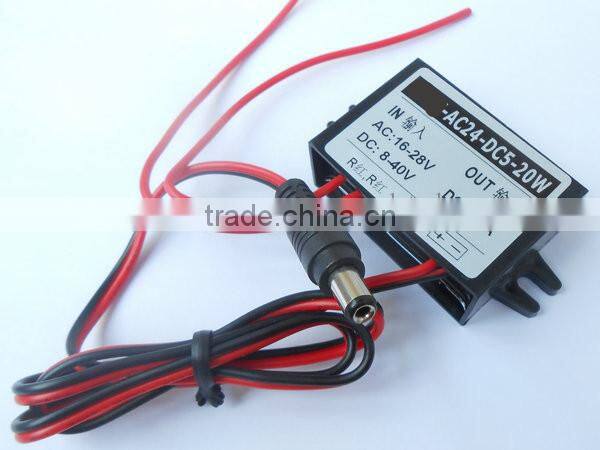

1, first you have to remember, this is a (AC or DC input may be) of the power conversion module (input, regardless of polarity), so the inputs are two red lines

2, the input AC: between the voltage range AC16V-28V, please do not do less than 16V higher than 28V. Input DC: voltage range between DC8V-40V, please do not do less than 8V higher than 40V.

3, Output: DC within the first positive and negative outside. Outer 5.5mm, the inner core 2.1mm, 20  red, black and copper wire, wire length 60CM (include DC head) pro Note contrast.

4, section baby can work long 4A peak 5A, which means you can load device 20W or less long-term stability without adding any heat sink. Performance is very stable, full power enough.

5, all components are imported, synchronous rectification, the plastic casing, waterproof, shock, moisture and dust.

6. Enter the high-voltage transient protection, output overcurrent protection, output short circuit protection, chip overheating protection.

7. Applications (Common Application): Surveillance cameras (CCD Camera); monitoring equipment (CCTV System); router (Gateway); any other applications to 12V electronic equipment, etc. ... ect
