No emission waste plastic to oil through pyrolysis system
- 30 Set / Sets per Month
- Qing Dao
- T/T L/C D/P D/A Credit Card PayPal
- New condition worn-out plastic /tyre/rubber pyrolysis machine
- Hot sale pyrolysis waste plastic
- 2013 lastest techinque waste Plastic disposal plant
- 2013 lastest techinque waste Plastic recycling device
- 2013 new design recycle machine making oil from waste tyre/ plastic/ rubber
- Chinese waste plastic plant,plastic waste to oil making plant
Product Details
Condition: | New | Type: | Tire Machine | Tire Machine Type: | Tire Recycling Machine |
Place of Origin: | Henan, China | Brand Name: | JINZHEN | Model Number: | JZB-12T |
Voltage: | 380V | Power(W): | 20KW | Dimension(L*W*H): | D2800*L6600 |
Weight: | 35T | Certification: | CE&ISO14001/9001 | Warranty: | 2 Years |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
2*40HQ container for 5ton equipment. 1*40 HQ container and one 40FR for 10tons&12tons equipment
Product Description
No emission waste plastic to oil through pyrolysis system

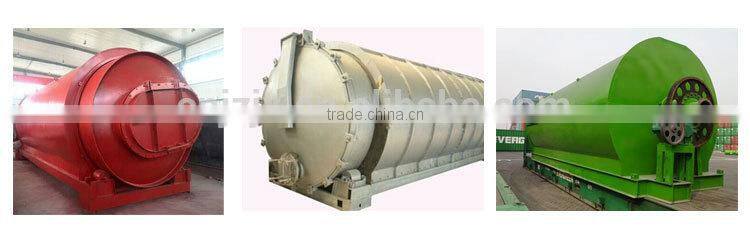

The type of pyrolysis machine
Item | Detail | |||
Type | JZ-05 | JZ-08 | JZ-10 | JZ-12 |
Raw material | Waste tyre ,plastic | Waste tyre ,plastic | Waste tyre ,plastic | Waste tyre ,plastic |
Capacity/day | 5t | 8t | 10t | 12t |
Inlet diameter | 1200mm | 1200mm | 1200mm | 1200mm |
Working | Batch-tyre | Batch-tyre | Batch-tyre | Batch-tyre |
Covering area | 150 | 160 | 180 | 200 |
Oil yield | 45%~50% | 45%~50% | 45%~50% | 45%~50% |
Labor force | 2-3 | 2-3 | 2-3 | 2-3 |
Reactor size | D2200mm*L5000mm | D2200mm*L5000mm | D2200mm*L5000mm | D2200mm*L5000mm |
Noise | ≤85dB | ≤85dB | ≤85dB | ≤85dB |
Tyre of cooling | Water-cooling | Water-cooling | Water-cooling | Water-cooling |
Weight | 24t | 28t | 31t | 33t |
Running time | 14-16h | 14-16h | 14-16h | 14-16h |
Fuel | Charcoal,wood,oil,and gas | Charcoal,wood,oil,and gas | Charcoal,wood,oil,and gas | Charcoal,wood,oil,and gas |
Carbon discharde | Slagging automatially | Slagging automatially | Slagging automatially | Slagging automatially |
Remark | It can be customized according to customer’s actual needs |

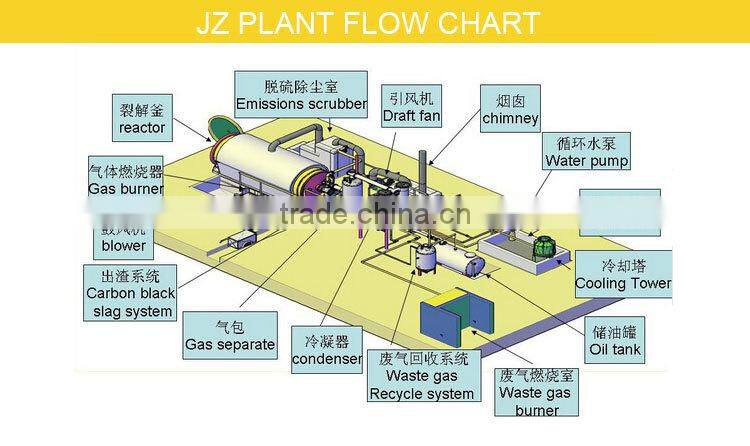

Work process of pyrolysis machine
Feed the reactor with raw materials through the feeding door by labor or machine and then close it tightly. Heat the reactor with coal, wood or other fuels. Some harmful smoke will come out along with the heating, but it can be removed by the desulfurization deduster and the water film cyclone. The smoke form the exhaust disposal system is no different from the air. The draft fan helps to inhale the smoke from the pipe and then release it into the sky more quickly.
The oil gas will travel from the reactor to the double catalyst tank, in which the heavy oil and impurities will depart from the gas due to the gravity. Then the gas will continue its journey into the oi-water separator for a second separation. After that , the cleaned oil gas will run into the cooling condensing pipes in the cooling pool, where the gas will convert to liquid, the oil, and then flow into the oil tank for storage.
There will be some waste gas in the oil tank. It will follow the pipe over the oil tank into the cooling pool for a second condensing so that the remained oil gas could turn to oil to improve the oil yield rate. As for the waste gas, that cannot transform to liquid will go to the water seal and then to the furnace for burning.
The main parts of pyrolysis machine

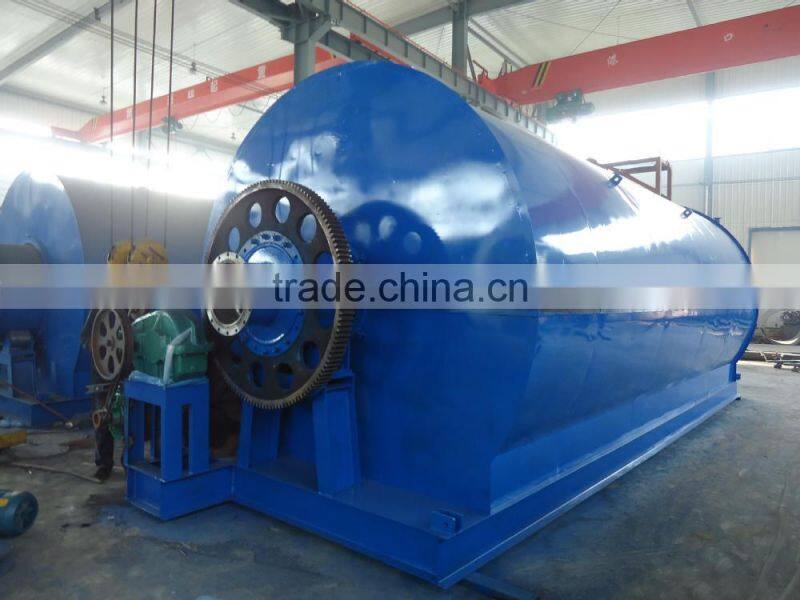

Reactor |
| 1.Made by Q345R boiler plate.Also can choose SS310,310S+Q345R 2.Auto-welding both inside and outside 3.With rock wool insulation board |
Catalyst chamber |
| 1.Improve oil yield and oil quality 2.Reduce the speed of oil gas so that it can be better cooled |
Oil-water separator |
| 1.Separate oil and water 2.Collect heavy oil 3.Water sealing design keep safety |
Condenser |
| 1.The oil gas is cooled separately by small pipes inside condenser 2.Light oil is collected here |
Vacuum device |
| Keeping machine running under normal pressure |
Anti-back fire device |
| 1.Recycle residual gas to furnace as fuel 2.Water sealing design prevent tempering |
Dust removal device |
| Dispose of flue gas caused by using coal,wood,oil or natural gas. |
The output product from pyrolysis machine
NO. | Name | Percentage | Use |
1 | Fuel oil | 40%-45% | Be widely used for fuel As raw materials for the refined diesel oil |
2 | Carbon black | 30%-35% | Can be sold as raw materials |
3 | Steel wire | 10%-15% | Be sold to steel and scrap dealers |
4 | Gas | 5%-10% | Can replace natural gas and propane when stored Can be used as energy resource in gas burners,also used in pyrolysis system |
Oil yield of available raw materials from pyrolysis machine
Raw materials | Oil yield |
Tires | 45%-50% |
PE | 95% |
PP | 90% |
PS | 90% |
ABS | 40% |
Plastic bag | 50% |
Submarine cable | 75% |
House garbage | 35%-50% |
Leftovers of paper | Wet15%-20% dry60% |
Installation
The seller should send technicians to install and adjust the machines, and our workers are also responsible for the training of the buyer's employees. The buyer is in charge of each of our technicians accommodation, meals, round-trip tickets, self-security and salary per day.

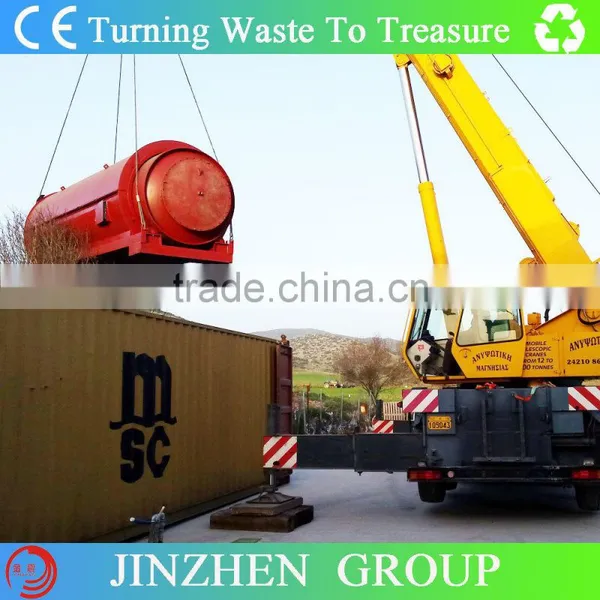

Shipping of pyrolysis machine
Part exporting country
Company Profile
Xinxiang City Jinzhen Machinery Manufacturing Co.,ltd Is a joint-stock industrial enterprises, mainly engaged in "source" brand electric hoist, single, double beam cranes, bridge, gantry and so on five big series 80 varieties of crane manufacturing, sales.Our company is a member of China crane industry association and China's heavy industry association governing units.With electric hoist, single, double beam crane production licenses and manufacturing, installation, maintenance and safety approval certificate and 320 t bridge, gantry crane, and 280 t ladle crane manufacturing safety approval certificate.
The company covers an area of 680000 square meters, staff 2300 people, with annual sales of 2.3 billion yuan, has more than 380 sales service agencies radiation at home and abroad, built his own new technology, new product development center.Have all kinds of processing equipment 1300 (set), can independently accomplish the car, milling, planing, grinding, pulling, boring, rolling, drilling, punching, cutting, bending, plate bending, welding, testing and heat treatment, etc. All process.
My company technical force is abundant, has middle and senior engineering and technical personnel more than 180 people, for the whole product development design work, and play an important role in the process of manufacturing test.
Company already passed GB/T19001-2008 / ISO9001:2008 quality system certification, GB/T24001-2004 / ISO14001:2004 environmental management system certification, GB/T28001-2001 occupational health and safety management system certification, with perfect quality assurance system, strict management system, strong production capacity and advanced detection means, in ensuring the high quality of the products, highly productive at the same time also has the strong market competition ability.The product key protection products in henan province.
