Help Center2013 New Design Recycle Machine Making Oil From Waste Tyre/ Plastic/ Rubber
Related Products
-
Chinese Waste Plastic Plant,plastic Waste to Oil Making PlantUS$ 40,000 - 48,000MOQ: 1 Set -
Chinese Waste Plastic Board Recycling MachineUS$ 40,000 - 48,000MOQ: 1 Set
-
5~12tons Capacity/ Day Scrap Plastic to OilUS$ 40,000 - 48,000MOQ: 1 Set
-
5~12tons Capacity/ Day Used Plastic Recycling to DieselUS$ 40,000 - 48,000MOQ: 1 Set
-
5~12tons Capacity/ Day Scrap Plastic Recycling to OilUS$ 40,000 - 48,000MOQ: 1 Set
Specifications
High oil rate 45%-50%Safty & non-pollution
Automatic & steady operation
Attractive & durable
Cooling fast & high effective
Oil refining equipment: 7th Generation Waste Plastic Pyrolysis Plant
round door in center:
Oval and half-open door:

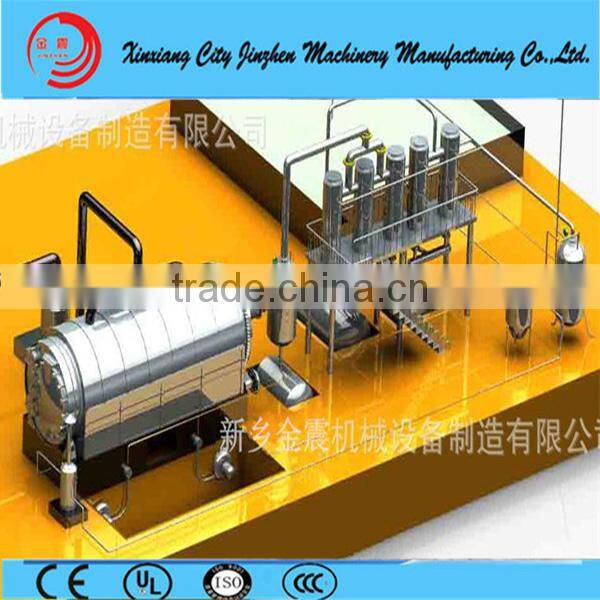

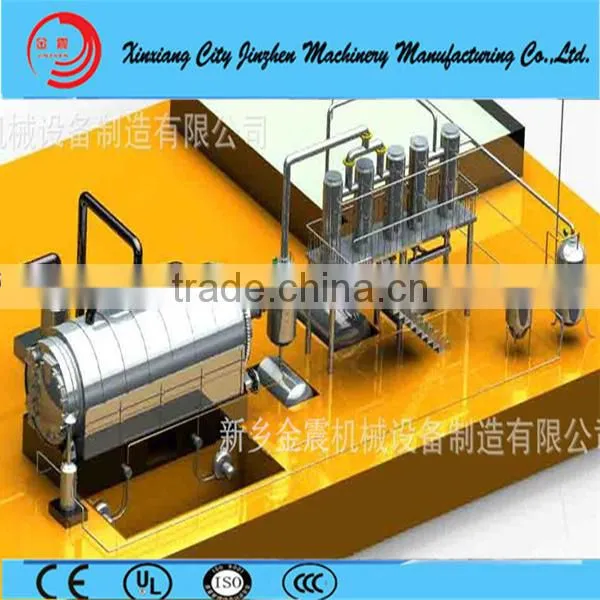

3D Flow Chart of oil making machine:
Introduction of main parts & Product function
system |
components |
purposes |
Pyrolysis system |
Automatic slagging system |
It can take the carbon black out of the reactor automatically. |

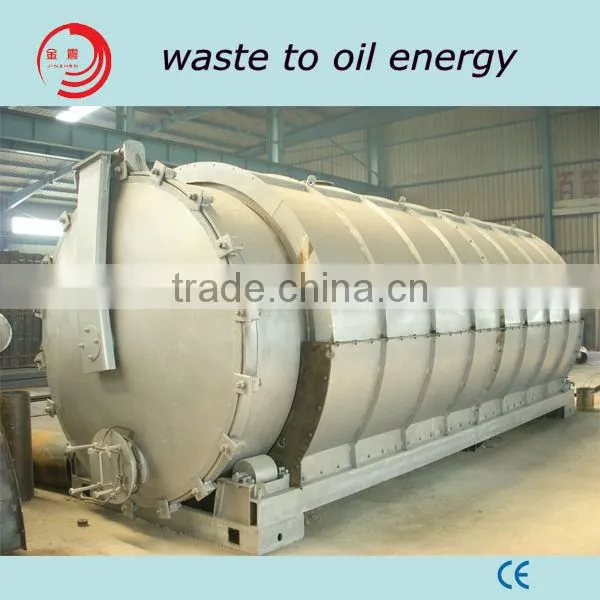

Cracking reactor |
The raw materials are pyrolyzed in the reactor, made of 245R boiler steel. |
|
double catalyst chamber |
Oil gas from reactor can react chemical reaction to improve oil quality. |
|
Cooling system |
Water jet flue pipe |
To transport oil gas and cooling down for first time. |
Oil water separator |
To separate gas and oil, producing most oil. |
|
Two horizontal condensers |
Cooling area is 52 square meters with high cooling efficiency to improve oil yield. |
|
Wind condenser |
Cooling the waste gas before burning and to further improve oil yield. |
|
Waste gas recycle system |
|
1. It can recycle the waste gas to be the fuel of heating reactor. 2. It can be used as a fire-resistant machine. |
Water seal |
Fire-resistant and ensure safety |
|
Spray gun |
Recovered gas burned by spray gun to save energy and heat up the reactor. |
|
Blower |
Inhale air into furnace to increase the combustion of the fuel. |
|
Furnace |
It is placed for fuel like wood, coal and charcoal. |
|
Deduster system |
Spraying deduster |
To desulfurize and dedust from waste gas. |
Draft fan |
It can inhale the smoke and dust in the furnace into the deduster system. |
|
Chimney |
The white smoke without pollution release into the air |
Input & Output:
Successful Case
