Low Capacity Movable Type Scrap Plastic to Diesel Oil Pyrolysis Plant

Low Capacity Movable Type Scrap Plastic to Diesel Oil Pyrolysis Plant thumbnail-1
Low Capacity Movable Type Scrap Plastic to Diesel Oil Pyrolysis Plant photo-1
US$ 30,000 - 58,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tire Machine
Tire Machine Type:
Tire Recycling Machine
Contact Supplier Request Quote Chat Now
Xinxiang City Jinzhen Machinery Manufacturing Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tire Machine
Tire Machine Type Tire Recycling Machine
Place of Origin Henan, China
Brand Name JINZHEN
Model Number JZ-RQ
Voltage 380V
Power(W) 11KW
Dimension(L*W*H) D2600mm*L6600mm
Weight 30T
Certification CE&ISO14001/9001
Warranty 12months
After-sales Service Provided Engineers available to service machinery overseas

Welcome to Jinzhen!

The professional manufacturer of waste tyre pyrolysis plant

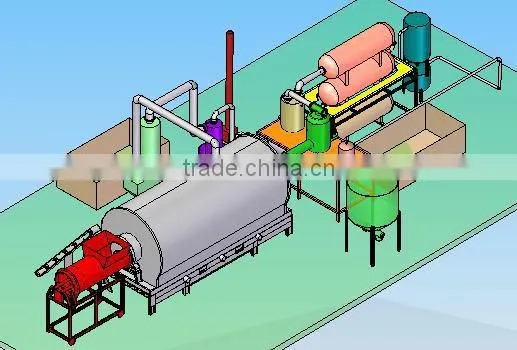

1. 3D Flow Chart of waste tyre pyrolysis to oil plant low capacity movable type scrap plastic to diesel oil pyrolysis plant



2. The tire pyrolysis machine working process

Feed raw material (auto-feeder)-- heat(reactor)-- oil gas comes into being-- impurity

deposits(gas separator)-- heavy oil deposits(oil waster separator)-- cooling down(cooling condenser)

- get light oil(light oil tank)-- flammable gas reheat reactor-- take out carbon black(screw conveyor)

3. Safety

1) Auto welding, X-ray detection room is special for welding seam

2) 2 alarms+ 3 safety valves+ 2 temperature gauges+ 2 pressure gauges= security system

3) Water seal shall prevent backfire and special design can reduce corrosion to reactor

4) Waste flammable gas reheat the reactor, guarantee safety

4. Energy Saving

1) The whole reactor can be heated, so the raw material can be fully pyrolysis

2) Fire road is designed as spiral, fuel shalled be fully burned

3) Need no circulating water, save electricity power

4) Special design for gas separate to seep up pyrolysis process

5. High profits

1) 70% light oil, 30% heavy oil

2) The oil you get without water

3) Jinzhen pyrolysis machine Feasibility Analysis Report

Jinzhen Feasibility Analysis Report

1set 10 tons capacity machine as an example

NO.

Item

Cost of per batch

1

10 tons of waste tire

10T* 260$/T= 2,600$

2

0.3 tons of caol

0.3* 97.6$/T= 29.28$

3

water

0.4$

4

electricity

15.6$

5

workers

4* 16.3$= 65.2$

Total cost

2710.48$

NO.

Item

Income

1

Crude oil (40%-45%)

10T* 45%* 715.5$/T= 3,219.75$

2

Carbon black (30%-35)

10T* 30%* 73$/T= 219$

3

Steel wire (10%-15%)

10T* 10%* 300$/T= 300$

4

Gross profit

3,738.75$

5

Daily net profit

1,028.27$

6

Monthly net profit

25,706.75$

7

Yearly net profit

308481$





6. The Output Products

Fuel oil

45%

Get diesel or gasoline though oil distillation machine

As fuel

As direct product on sale

Carbon black

30%

Fine carbon though carbon black refining machine

Carbon pellet/ Carbon rod

As direct product on sale

Steel wire

10%

Steel bloom though hydraulic press-packing

As direct product on sale

waste flammable gas

5%

As fuel to reheat the reactor

water

10%







7. Brief Introduction of tire rubber pyrolysis machine

7.1 Model and Specification

Item

Contents

Raw Material

Waste tires/ scrap plastic/ waste rubber

Structure Form

Horizontal

Model

JZ-8T

JZ-10T

JZ-12T

Size of Reactor (mm)

D2200*L6600

D2600*L6600

D2800*L6600

Volume

25.1

30.0

40.6

24-hour capacity

8 tons

10 tons

12 tons

Operating pressure

Constant pressure

Heating material

Coal/ charcoal/ fuel gas/ fuel oil

Average out-put oil rate

45%-50%

Material of reactor

Q245R/ Q345R boiler plate

Thickness of reactor

16mm/ 18mm

Rotate speed of reactor

0.4 turn/minute

Mode of cooling

Water cooling

Working mode

Continuous feeding

Delivery time

20 days after receiving deposit



7.2 High Configuration

@ The material of the reactor is Q345R boiler steel with 16 mm thickness

@ Stainless steel material for the tube of the gas burner

@ Stainless steel material for draft fan

@ 74 pipes with 219 mm diameter for cooling condenser



7.3 Delivery Time

20---30 days after deposit receiving



7.4 Shipment container

2200*6000

40HQ container*2

2200*6600

2600*6000

2600*6600

40FR open container*1

+ 40HQ container*1

2800*6000

2800*6600



7.5 FOB Port(China)

Qingdao, Tianjin...or according to your requirement



7.6 After Service

1) Foundation drawing shall be sent to you after contract signing

2) Send engineer to installation and give you instruction

3) CE, ISO certification

4) 1 year warranty

5) we will inform you our new technology

8. Picture Show

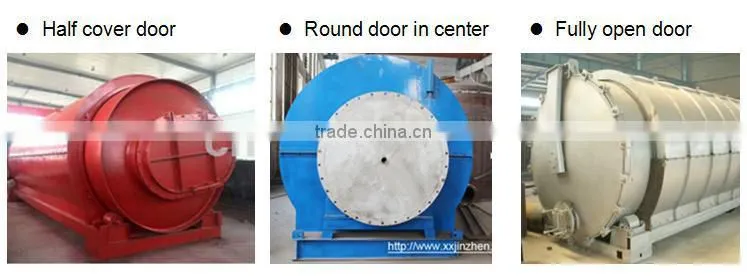

3 kinds of reactors

low capacity movable type scrap plastic to diesel oil pyrolysis plant

3 Furnace total

low capacity movable type scrap plastic to diesel oil pyrolysis plant

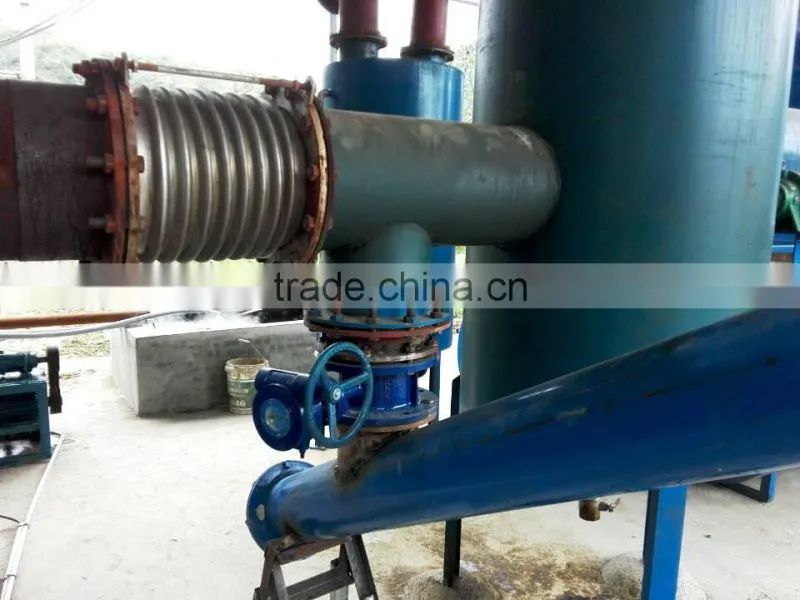

Stir& static sealing and compensator

low capacity movable type scrap plastic to diesel oil pyrolysis plant

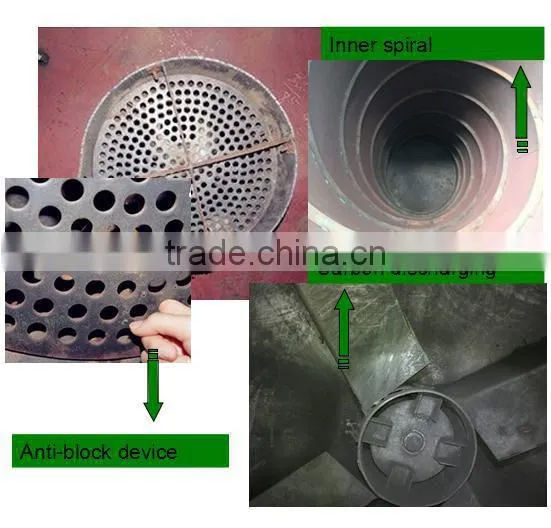

Anti-block device& inner spiral& carbon discharging route

low capacity movable type scrap plastic to diesel oil pyrolysis plant

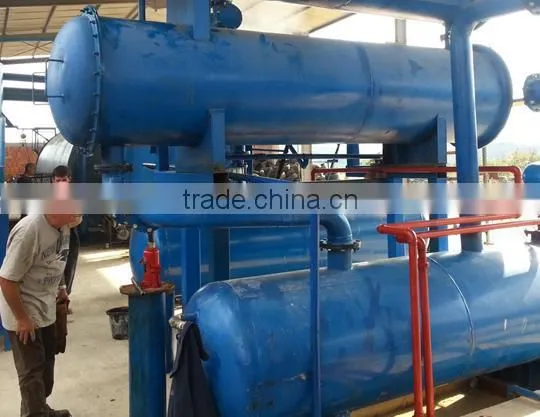

Gas separator& oil water separator

low capacity movable type scrap plastic to diesel oil pyrolysis plant

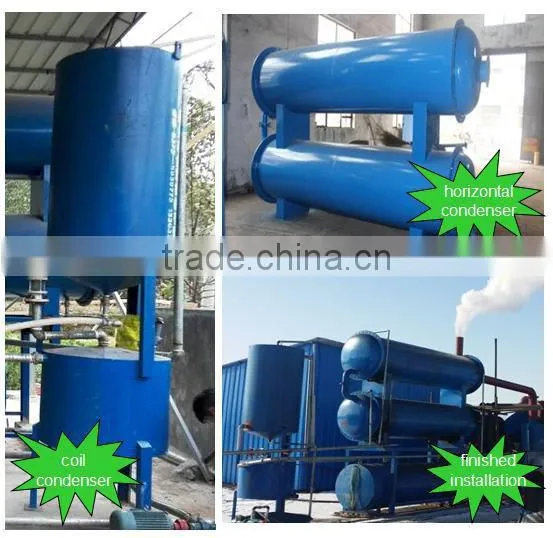

Cooling system

low capacity movable type scrap plastic to diesel oil pyrolysis plant

Oil tank

low capacity movable type scrap plastic to diesel oil pyrolysis plant

Dedusting system

low capacity movable type scrap plastic to diesel oil pyrolysis plant

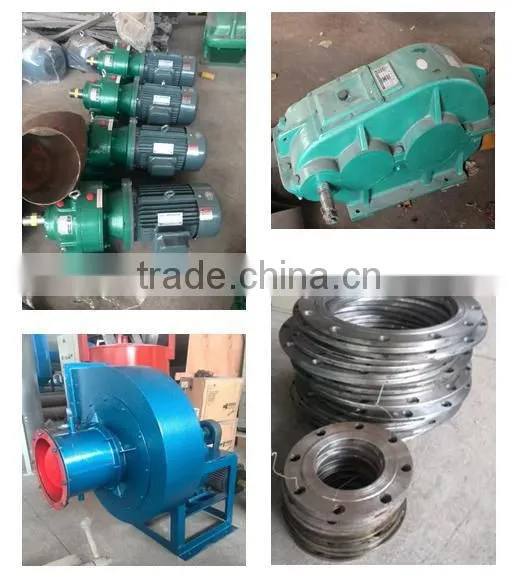

Detail parts

low capacity movable type scrap plastic to diesel oil pyrolysis plant

Shipping

low capacity movable type scrap plastic to diesel oil pyrolysis plant

Customer all around the world!!

low capacity movable type scrap plastic to diesel oil pyrolysis plant
