Specifications
the lengthways veneer slicer is widely used for making floor.the veneer slicer save 30-50% timber than frame saw and band saw.Product Description
Technical specifications of the lengthways veneer slicer
| Name/model | HB20V | HB25T | HB35T |
| Max cut wid | 200mm | 250mm | 350mm |
| max cut thinkness | 200mm | 250mm | 350mm |
| feeding spead | 58m/min | 58m/min | 60m/min |
| total power | 12kw | 19.6kw | 33.75kw |
| overall dimension | 2420x1350x2000mm | 3360x1630x2000mm | 4600x2000x2000mm |
| net weight | 4000kg | 8500kg | 15000kg |
this is the video of our machine working
/watch?v=PGVJ2c4DfeM&feature=plcp
usage of the lengthways veneer slicer
our veneer slicer is designed to cur venner out of high valued wood with good grain and colour for surface coating. the veneers can be widely used in the following field:door making ,window blind,decoration and panel furniture.
advantage of the lengthways veneer slicer
1. compared with frame saw and horizontal bandsaw , our machine can save wood by 30%-50%.with the popularity of artifical boards and booming furniture industry , the vener produced from our machine will play a more and more important role of the international market.
2. our machine have high quality . if you oprate the machine under the machine instruction, it is hardly for our machine to have any problem. our machine have a long life span. in case the machne has some problems,no matter causing by wrong operation or irresistable factors,our machine is easy to repaire atn a short time because all assimble units are standard parts and accessories.
key parts of the lengthways veneer slicer
1. Swiss ABB motor or German Simens motor that you can choose to use which one and both meet European latestcritaria EFF2. the motor can save power by 13% .genarate small heating and have long life span.
2. the slicing knife is manufactured by Japan,cut the veneer with high precision and the knife has a long life span.
3. Japan -made OMROM sensor to keep reliale performance.
4. south-korea AUTONICS encoder
5. selection of siemens man-machine panel ,convenient operation control
6. electric braking system indepedent developed by our engineers,very efficient and reliable.
7. French Shineider electric components
8. Italy-made professional feeding belt.
machine body of the lengthways veneer slicer
1. made of cast iron,ensuring work stability.
2. chromed columns,preventing wearing off
3. well ground guideway,guarenteeing high performance
4. Roll feeding style, get small friction and ensure the life of conveyor belt.
Performance of the lengthways veneer slicer
1. About 25 pcs of veneers per minute (based on 2 meter wood and cycle feeding system)
2. Cutting thickness shown in number, it can be as accurate as 0.01mm
3. Working table lifting controlled manually and automatically.
4. Equipped with wireless foot switch
5. Veneer output can be indicated by a counter
6. Automatic feeding speed can be adjusted by PLC
7. Veneer thickness can be from 0.5mm to 8mm according to wood harness
8. Veneer thickness error falls in ±0.05mm

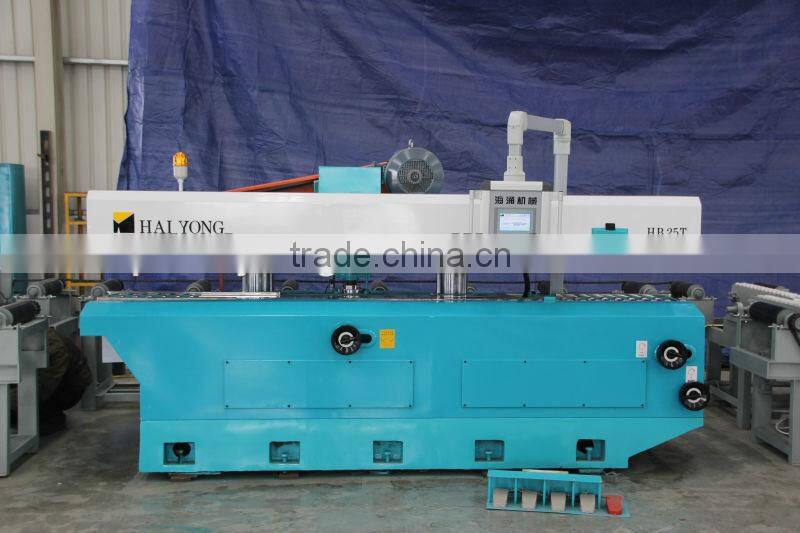

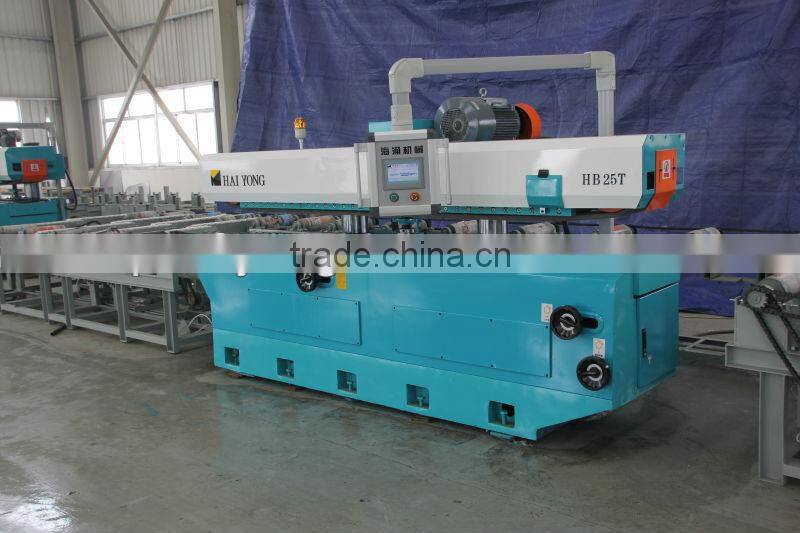

the picture of the lengthways veneer slicer
