Home > Products > Veneer Slicer > Longitudinal Wood Veneer Slicer
Longitudinal Wood Veneer Slicer
- QINGDAO
- T/T
You May Like
Product Details
| Type | Other, slicer | |||
| Place of Origin | Shandong, China | Brand Name | HAIYONG | |
| Model Number | HB25T | Voltage | 380v normally | |
| Power(W) | 19.6KW | Dimension(L*W*H) | 3360x1630x2000mm | |
| Weight | 8500kg | Certification | ISO9001 BV | |
| Warranty | i year | After-sales Service Provided | Overseas service center available |
Product Description
wood veneer slicer
1 wood cooking machine
2 veneer slicer machine
3 veneer drier machine.
4 veneer cutting machine
5 knife grinding machine

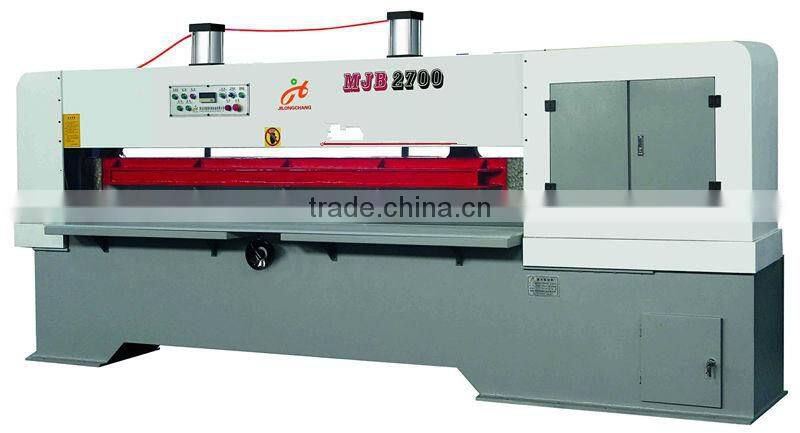

picture of the machine

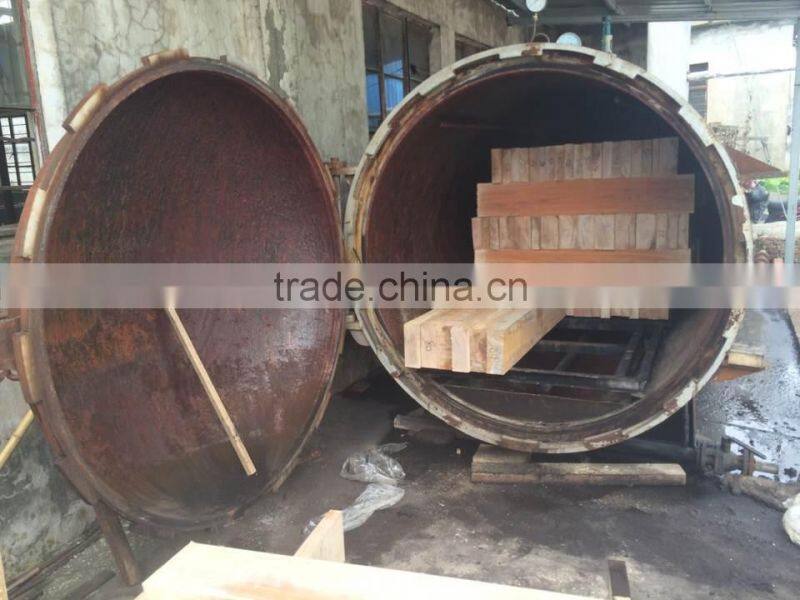

1 wood cooking machine

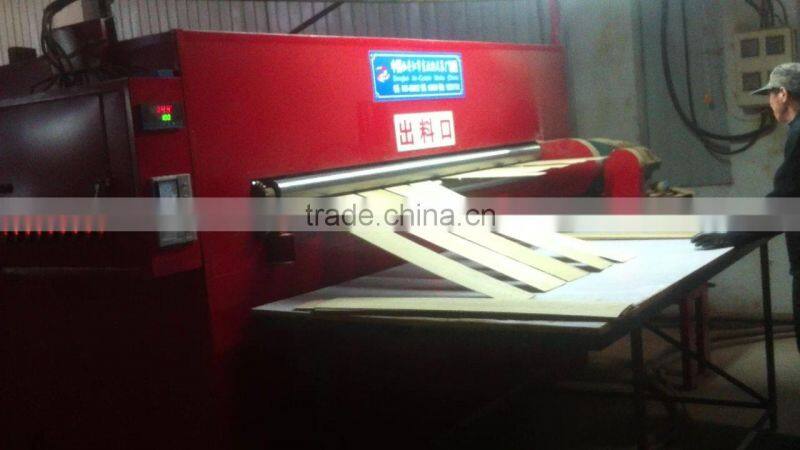

2 wood veneer slicer

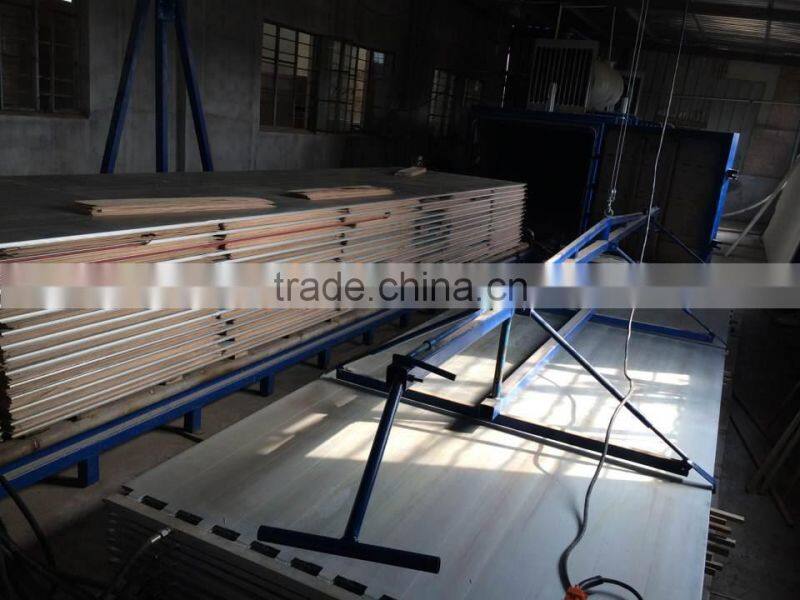

3 veneer drier machine

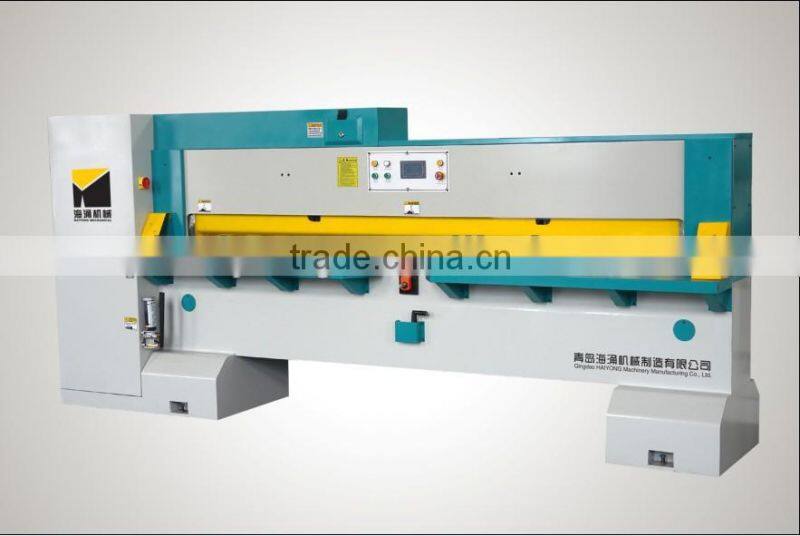

4 veneer cutting machine

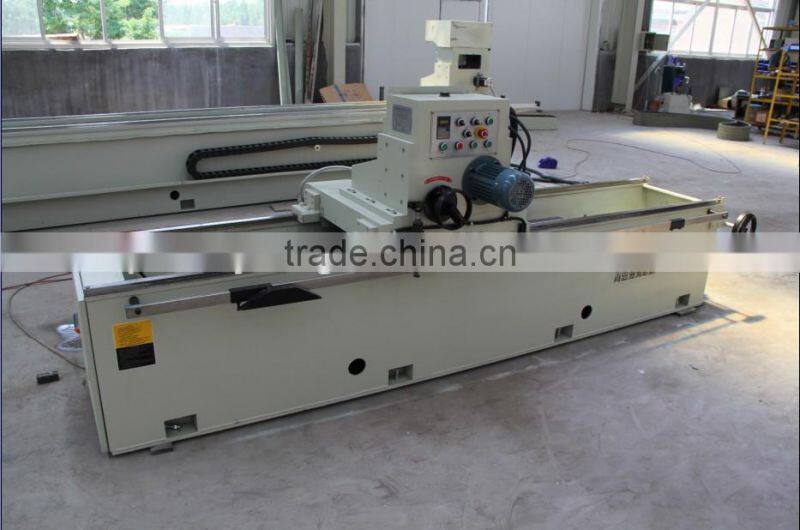

5 knife grinding machine
Technical specifications of the veneer slicer
| Name/model | HB20V | HB25T | HB35T |
| Max cut wid | 200mm | 250mm | 350mm |
| max cut thinkness | 200mm | 250mm | 350mm |
| feeding spead | 58m/min | 58m/min | 60m/min |
| total power | 12kw | 19.6kw | 33.75kw |
| overall dimension | 2420x1350x2000mm | 3360x1630x2000mm | 4600x2000x2000mm |
| net weight | 4000kg | 8500kg | 15000kg |
this is the video of veneer slicer
/watch?v=PGVJ2c4DfeM&feature=plcp
technical specification of the veneer cutting machine
Model | MQJ160 | MQJ260 | MQJ310 | MQJ350 |
Max cutting length | 1600 | 2600 | 3100 | 3500 |
Max cutting thickness | 50 | 50 | 50 | 50 |
Oil pump power | 4 | 4 | 4 | 4 |
Feeding motor power | 0.1 | 0.18 | 0.18 | 0.18 |
Max working pressure | 10 | 10 | 10 | 10 |
Overall dimension | 2470*1450*1600 | 3680*1680*1600 | 4180*1680*1600 | 4580*1680*1600 |
Net weight | 2000 | 2350 | 2650 | 3300 |
technical specification of the knife grinding machine
Name/ model | HMZ1815 | HMZ1830 | HMZ1835 | HMZ1842 |
Max grinding length | 1500mm | 3000mm | 3500mm | 4200mm |
Width of the working table | 180mm | 180mm | 180mm | 180mm |
Grinding head power | 4kw | 4kw | 4kw | 4kw |
Linear speed of grinding wheel | 0-20m/s | 0-20m/s | 0-20m/s | 0-20m/s |
Speed of the sliding plate | 15.2m/min | 12/18 m/min | 12/18 m/min | 12/18 m/min |
Tilting range of the working table | ±90° | ±90° | ±90° | ±90° |
the specification of the cooking machine
the capacity of the machine is 3-5 cubic meter every time.
the temperature is up to 150. °C
Our factory. We can guarantee the production time and quality. Our price is
more competitive than trading company.
Our engineer. We have professional knowledge. We can slove all the question you
meet in the prrocess of installing and opreating the machine
Our trading team .We are familiar with the machine. We will do our best
to serve the customer. We are the bridge between factory and customer.
we have our own factory that mean we can produce the machine as your requirement.
our company produce this machine in chia for years.our machine has been saled to many probince in china ad many country in the world.
