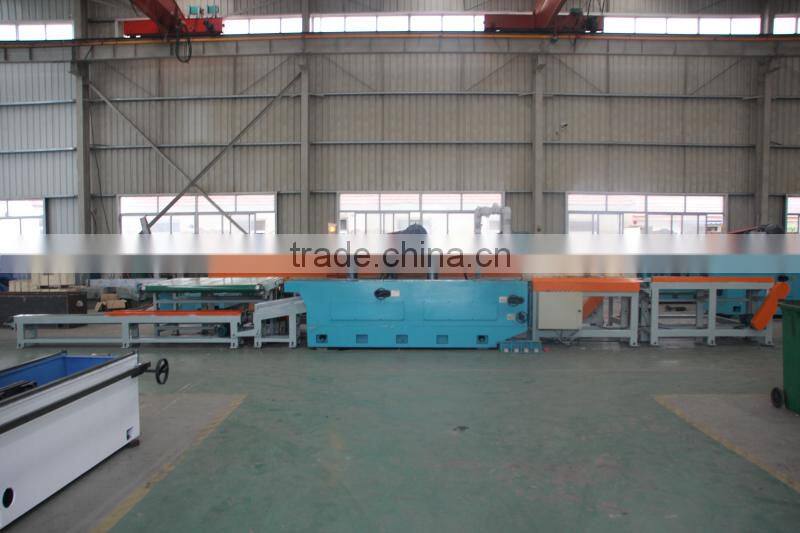

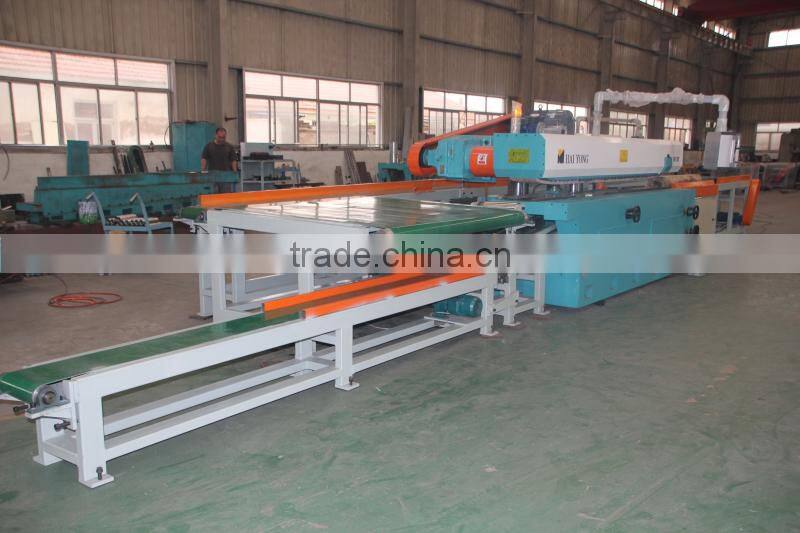

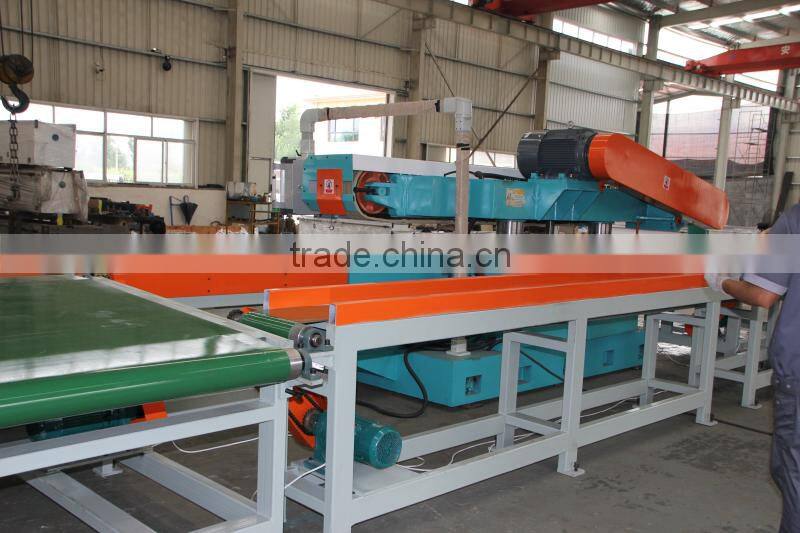

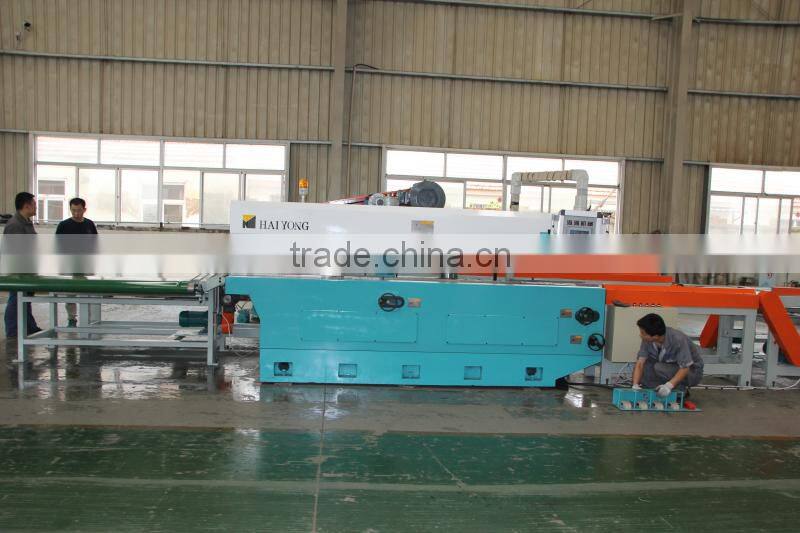

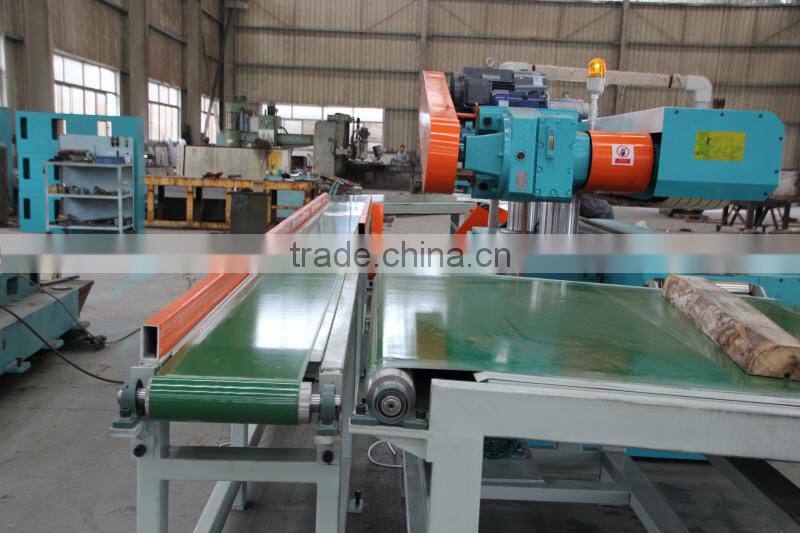

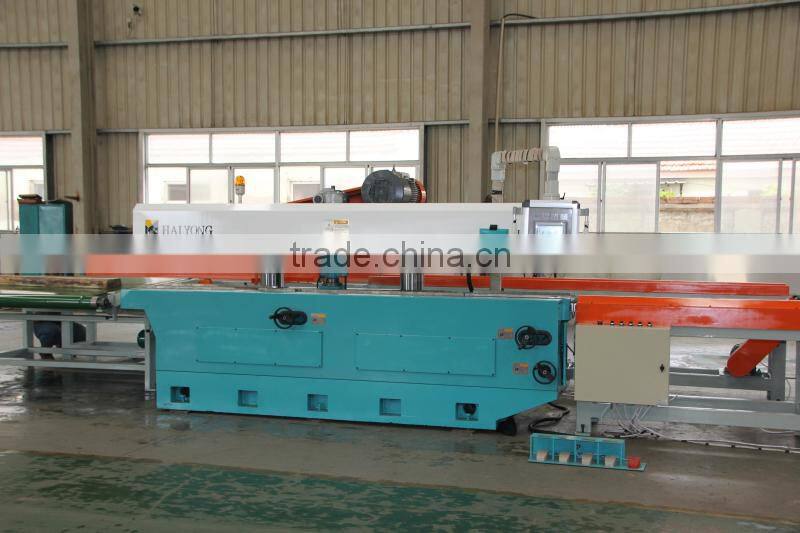

veneer slicer machine

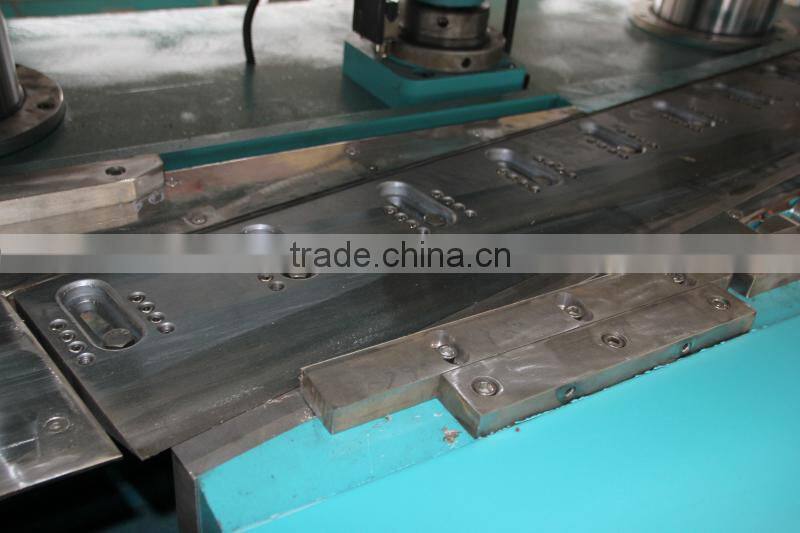

Machine body of veneer slicer machine:
1. Made of cast iron, ensuring work stability
2. Chromed columns, preventing wearing off
3. Well ground guideway
Key parts of veneer slicer machine:
1. Swiss ABB motor or German Siemens motor that meets European latest criteria EFF2, saving power by 13%, enjoying small heating and long life span.

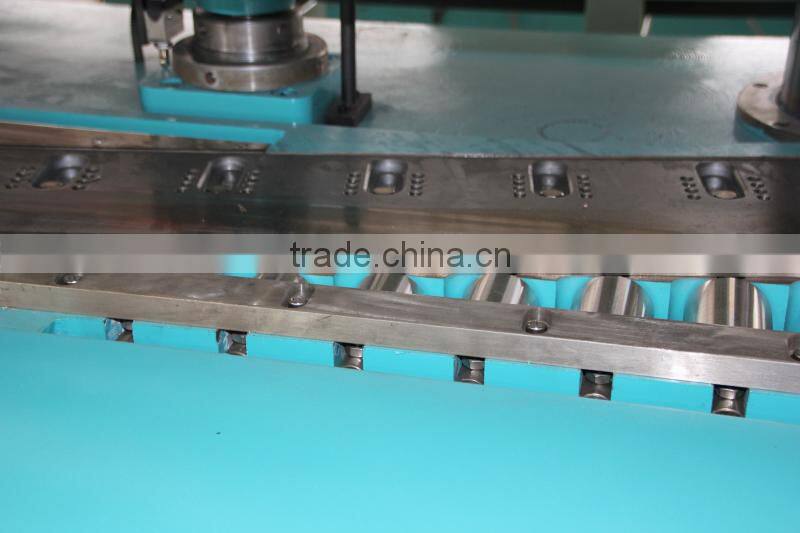

2. Japan-made professional slicing knife, ensuring good quality veneers.
3. Japan-made OMRON sensor to keep reliable performance.
4. AUTONICS encoder imported from South-Korea.
5. Selection of Siemens man-machine interface, convenient operation control.
6. Electric braking system independent developed by our engineers, very efficient and reliable
7. French Schneider electric
8. Italy-made professional feeding belt.
Performance of veneer slicer machine:
1. Veneer output can be indicated by a counter
2. Automatic feeding speed can be adjusted by PLC
3. Veneer thickness can be from 0.5mm to 8mm according to wood harness
4. Veneer thickness error falls in ±0.05mm
Technical specification of veneer slicer machine:
Name/ model | HB 20V | HB 25T | HB 35T |
Max cut width | 200mm | 250mm | 350mm |
Max cut thickness | 200mm | 250mm | 350mm |
Feeding speed | 58m/min | 58m/min | 60m/min |
Total power | 12kw | 19.6kw | 33.75kw |
Overall dimension | 2420*1350*2000mm | 3360*1630*2000mm | 4600*2000*2000mm |
N.W. | 4000kg | 8500kg | 15000kg |
Welcome to visit our website: /watch?v=PGVJ2c4DfeM&feature=plcp
