log peeling machine
the basic information of the log peeling machine
1 the max cutting length is 1350,2000,2600mm. the longer one need to special making.
2 the standard cutting diameter is 300mm. the bigger one we can produce as your requirement.
3 the standard veneer thickness is 0.8 to 3mm. the special thickness need to inform in advance.we also can produce.
4 the final veneer log is 26mm.
5 the machine can cut all kind of wood, soft and hard.
6 the machine body is heavy and treated by heat treatment.
7the accurrcy of the machine is 0.1mm.
8 we have the fast speed model , max produce speed is 60m/min.
technical specifications of the log peeling machine
Model | BHX1815 | BHX1822 | BHX1827 |
Max cutting length (mm) | 1350 | 2000 | 2600 |
Max cutting diameter (mm) | Φ300 | Φ300 | Φ300 |
Log-core diameter (mm) | Φ26 | Φ26 | Φ26 |
Cutting thickness (mm) | 0.8-3.0 | 0.8-3.0 | 0.8-3.0 |
Veneer output speed (m/min) | 42 | 42 | 42 |
Power (kw) | 19.75 | 21.75 | 25.75 |
Overall dimension (mm) | 3320*1800*1260 | 3700*1800*1490 | 4585*1800*1560 |
N.W (kg) | 3500 | 5500 | 7000 |
welcome to watch the video of this machine
/watch?v=ZjQD9C1eP5Q&feature=youtu.be

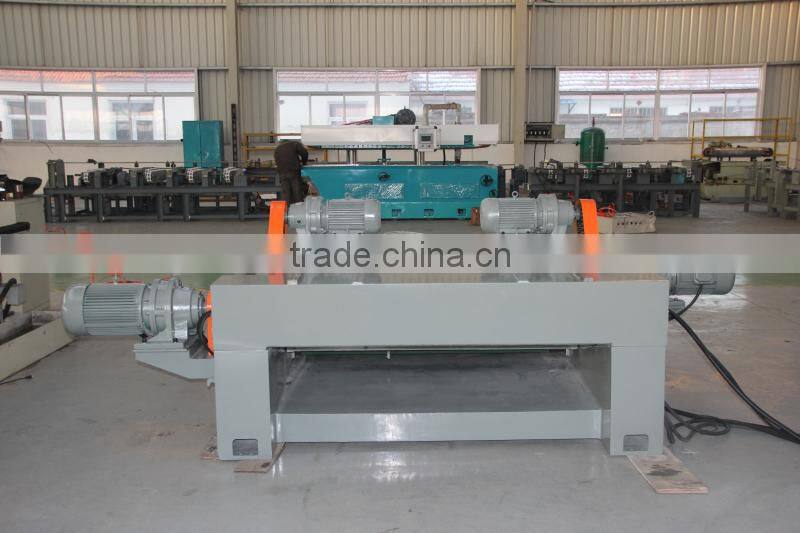

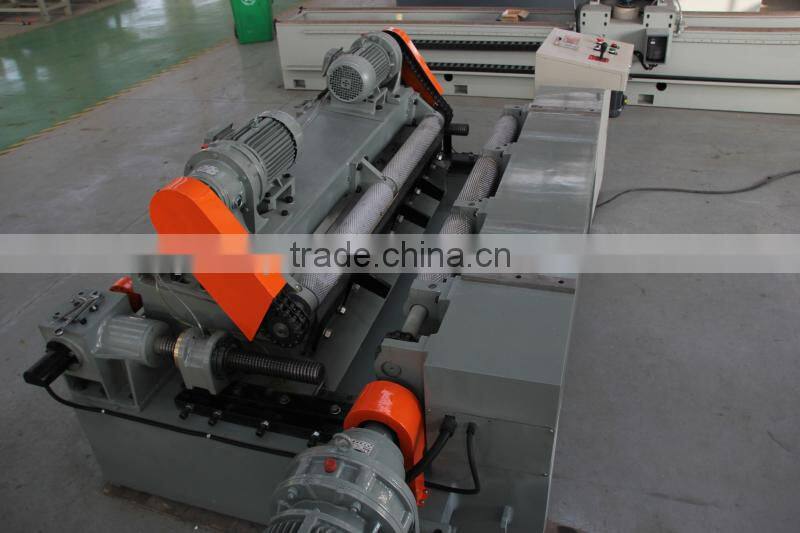

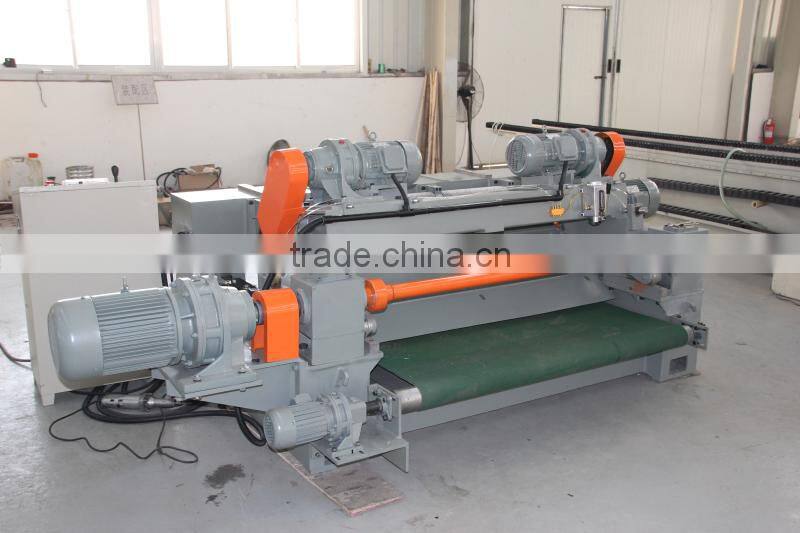

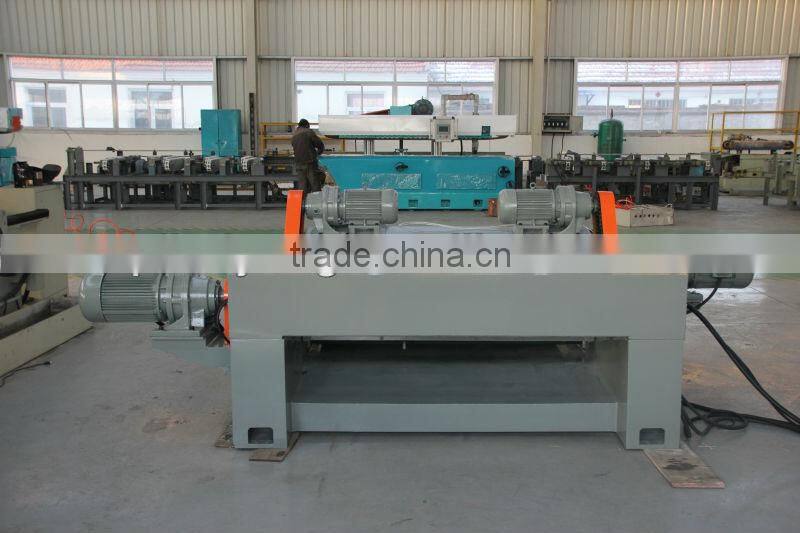

photo of the machine
