Help CenterWoodworking Rotary Peeling Machine
Related Products
Specifications
the max cutting length is 1350mmthe max cutting diameter is 300mm

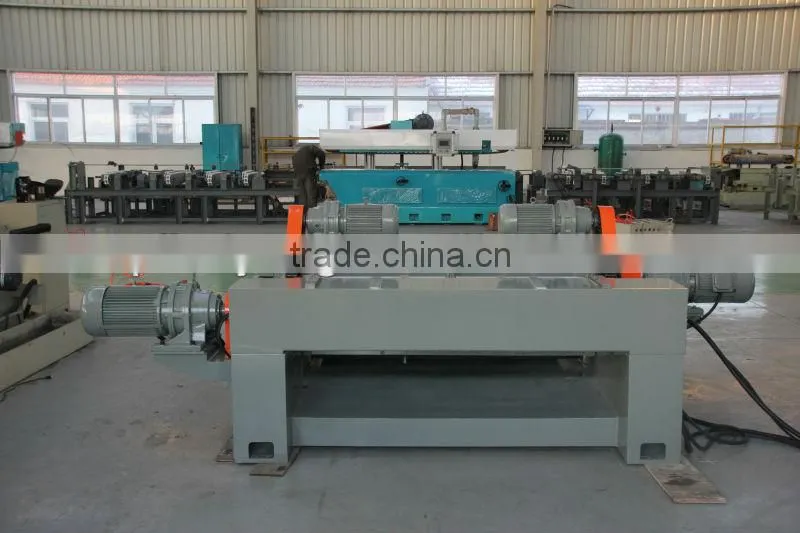

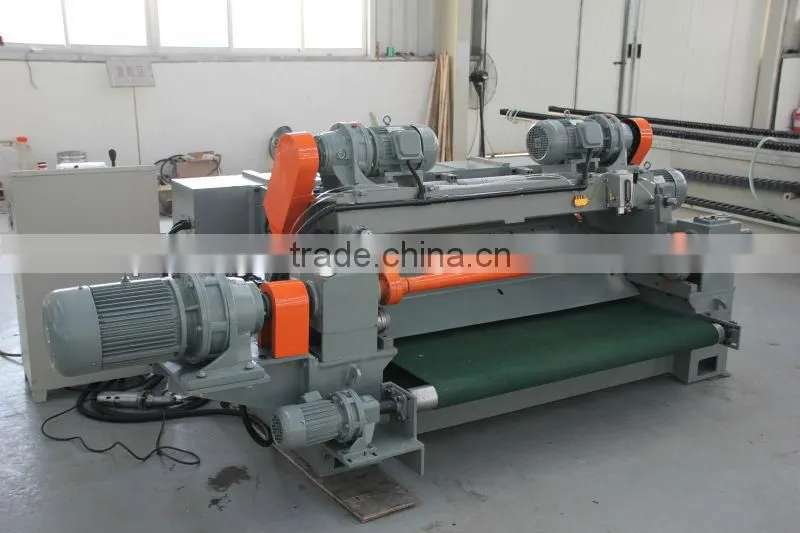

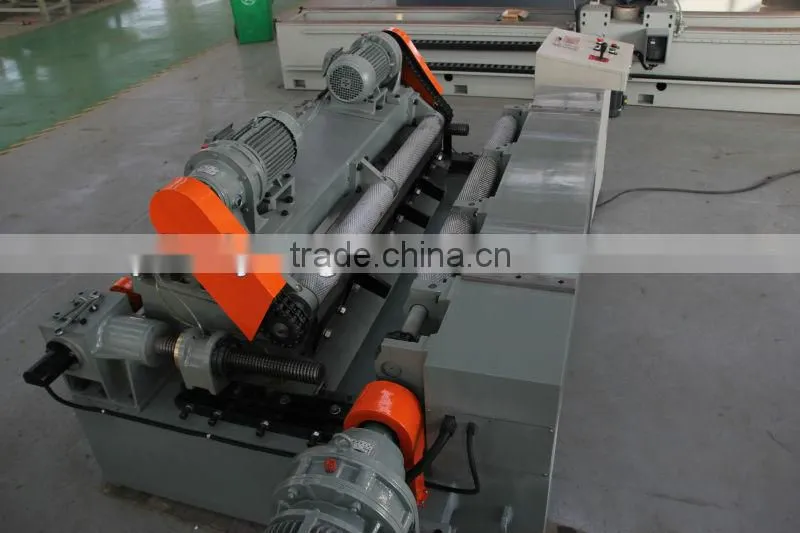

The basic information of the rotary lathe
this machine is widely used in plywood producing field. beacuse this machine can peeling the log which diameter less than
3600mm. it can save lots of wood in this way . you can change the system to control the cutting thickness just as your
requirement.it has a high eficiency, and a high rate of wood usage. it is fit for the plywood company for efficient procucing.
Technical specifications of the rotary lathe
Model |
BHX1815 |
BHX1822 |
BHX1827 |
Max cutting length (mm) |
1350 |
2000 |
2600 |
Max cutting diameter (mm) |
Φ300 |
Φ300 |
Φ300 |
Log-core diameter (mm) |
Φ26 |
Φ26 |
Φ26 |
Cutting thickness (mm) |
0.8-3.0 |
0.8-3.0 |
0.8-3.0 |
Veneer output speed (m/min) |
42 |
42 |
42 |
Power (kw) |
19.75 |
21.75 |
25.75 |
Overall dimension (mm) |
3320*1800*1260 |
3700*1800*1490 |
4585*1800*1560 |
N.W (kg) |
3500 |
5500 |
7000 |
welcome the enjoy the video of this machine.
/watch?v=ZjQD9C1eP5Q&feature=youtu.be
