BXQ1827 Veneer Peeling Rotary Lathe

Specifications

Venee Peeling Rotary Lathe
1.High rate of wood usage
2.CNC Non-chuck rotary lathe
3.Cutting diameter 360mm

BXQ1827 Veneer Rotary Lathe



With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in manufacturing wooden products and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!

We can produce machine aaording to customer's requirement.

workshop

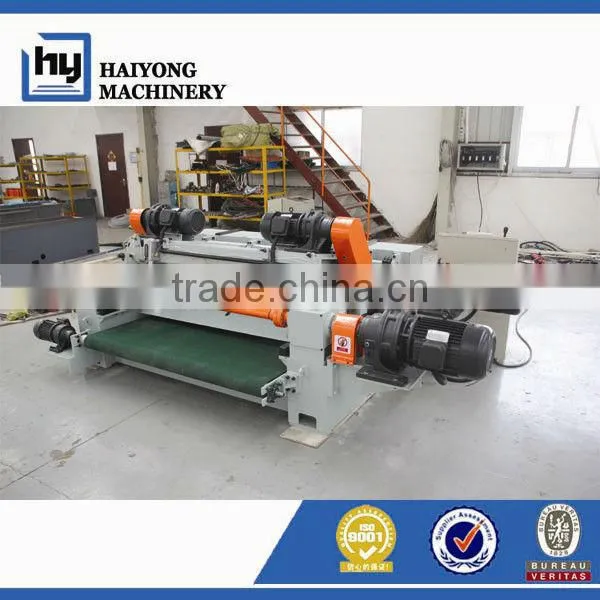

 Our rotary lathe is the mian machine in the wood-working industy .It can peeling less than 360mm log-core.The same log-core can be changed between knives by picture guide system.It can peel table and core plate.It has a high rate of wood usage.It is fit for the plywood company for efficient producing.

Technical specifications

Model	HX1815	HX1822	HX1827
Max cutting length (mm)	1350	2000	2600
Max cutting diameter (mm)	Φ300	Φ300	Φ300
Log-core diameter (mm)	Φ26	Φ26	Φ26
Cutting thickness (mm)	0.8-3.0	0.8-3.0	0.8-3.0
Veneer output speed (m/min)	42	42	42
Power (kw)	19.75	21.75	25.75
Overall dimension (mm)	3320*1800*1260	3700*1800*1490	4585*1800*1560
N.W (kg)	3500	5500	7000

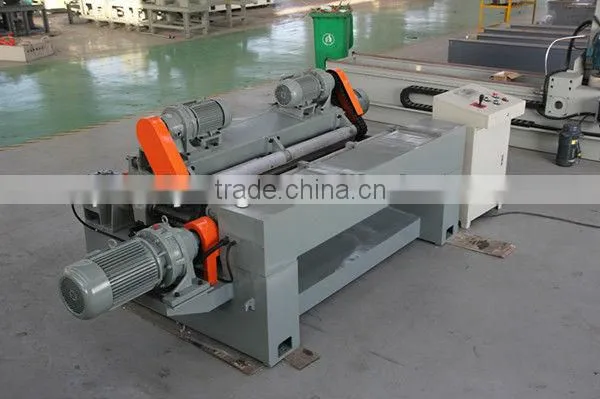

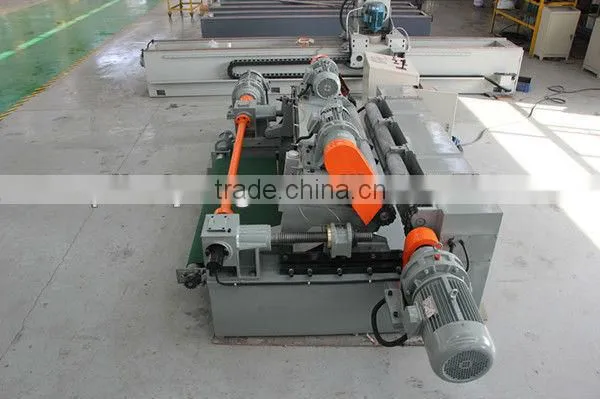

 Product show



video of our rotary lathe

/watch?v=ZjQD9C1eP5Q&feature=youtu.be

Thank you for your visiting.

Any help,please do not hesitate to contact me:))
