Specifications
* CE & CSA* Motorizing up/down
* 5.5Kw motor, 350mm, Freud / AKE
* Heavy duty dust hood
Key Advantages
- 3200mm length sliding table, 410mm width.
- Machine body is made by Auto laser cutting CNC.
- Motorizing up/down is optional
- with Freud saw blade or AKE optional
- with type A dust hood - safe and efficient dust collection
- The internal structure with guide made in Germany
- Rip fence can slightly adjust
- CE standard / adapted from German Altendorf / SCM Italy
Function description:
1.Fit for processing various panel with similar rigidity, such as consistent plate, flake board, manmade plate, ABS plate, PVC plate, organic glass plate and solid wood;
2. Guide rail of mobile workbench is made of imported chrome plated round stick with high rating accuracy;
3. Surface of mobile workbench is made of high intensity extruding aluminum alloy with high intensity and no deformable performance;
4.Surface of mobile workbench passes treatment of oxidation, beautiful and wearable;

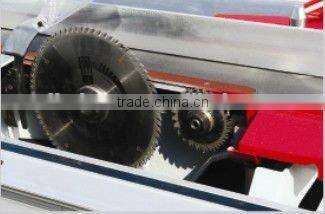

5. Obliquity of principle saw blade and scoring saw blade is directly displayed by precise inclinometer.
Technical specification:

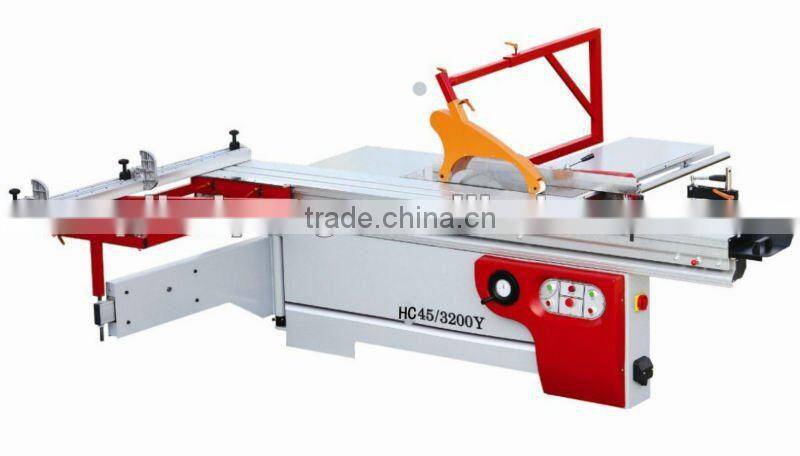

Model | HC45/3200Y |
Dimension of sliding table | 3200*370mm |
Gross cut capacity | 3200mm |
Width of cut between saw blade and rip fence | 1250mm |
Saw blade diameter | 300mm(φ250-φ350) |
Height of cut | 80mm |
Height of cut with saw blade at 45° | 55mm |
Speed of main saw spindle | 4000/6000rpm |
Main spindle diameter | 30mm |
Tiling saw blade | 0-45° |
Main motor | 4kw |
Scoring saw blade diameter | 120mm |
Speed of scoring saw blade | 8000r/min |
Scoring spindle diameter | 20mm |
Scoring motor | 0.75kw |
Net weight | 720kg |
Gross weight | 870kg |
Overall dimension | 3250*3150*900mm |
