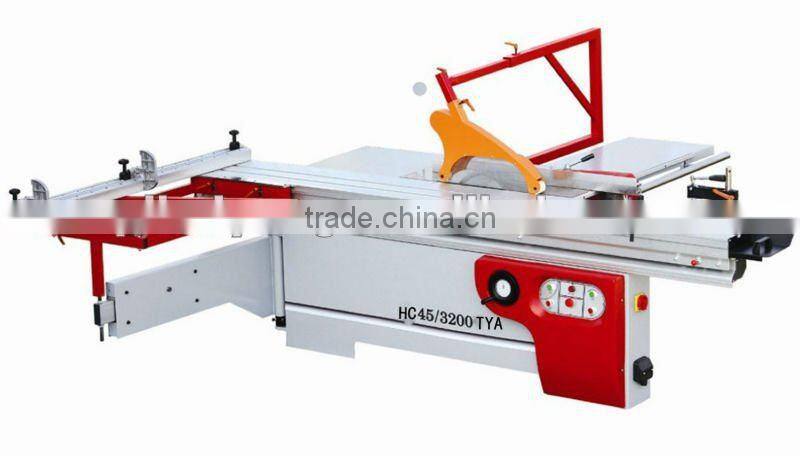

Help CenterBeam Saw HC 45/3200TYA
Related Products
-
Woodworking Cutting Panel Saw HC 45/2800YXUS$ 1,100 - 25,000MOQ: 1 Set -
Woodworking Cutting Panel Saw HC 45/3200YUS$ 1,100 - 10,000MOQ: 1 Set
-
Woodworking Cutting Panel Saw HC 45/3200TYAUS$ 1,100 - 10,000MOQ: 1 Set
-
Woodworking Cutting Panel Saw HC 90/3200SUS$ 1,100 - 10,000MOQ: 1 Set
-
HC 45/3000Z Panel SawUS$ 1,100 - 10,000MOQ: 1 Set
Specifications
* CE & CSA* Motorizing up/down
* 5.5Kw motor, 350mm, Freud / AKE
* Heavy duty dust hood
Key Advantages
- 3200mm length sliding table, 410mm width.
- Machine body is made by Auto laser cutting CNC.
- Motorizing up/down is optional
- with Freud saw blade or AKE optional
- with type A dust hood - safe and efficient dust collection
- The internal structure with guide made in Germany
- Rip fence can slightly adjust
- CE standard / adapted from German Altendorf / SCM Italy
Function description:
1.Fit for processing various panel with similar rigidity, such as consistent plate, flake board, manmade plate, ABS plate, PVC plate, organic glass plate and solid wood;
2. Guide rail of mobile workbench is made of imported chrome plated round stick with high rating accuracy;
3. Surface of mobile workbench is made of high intensity extruding aluminum alloy with high intensity and no deformable performance;
4.Surface of mobile workbench passes treatment of oxidation, beautiful and wearable;
5. Obliquity of principle saw blade and scoring saw blade is directly displayed by precise inclinometer.
Technical specification:
Model |
45/3200TYA |
Dimension of sliding table |
3200*370mm |
Gross cut capacity |
3200mm |
Width of cut between saw blade and rip fence |
1250mm |
Saw blade diameter |
300mm(φ250-φ350) |
Height of cut |
120mm |
Height of cut with saw blade at 45° |
55mm |
Speed of main saw spindle |
4000/6000rpm |
Main spindle diameter |
30mm |
Tiling saw blade |
0-45° |
Main motor |
5.5kw |
Scoring saw blade diameter |
120mm |
Speed of scoring saw blade |
8000r/min |
Scoring spindle diameter |
20mm |
Scoring motor |
0.75kw |
Net weight |
720kg |
Gross weight |
870kg |
Overall dimension |
3500*3350*1000mm |
