Woodworking Cutting Panel Saw HC 90/3200S

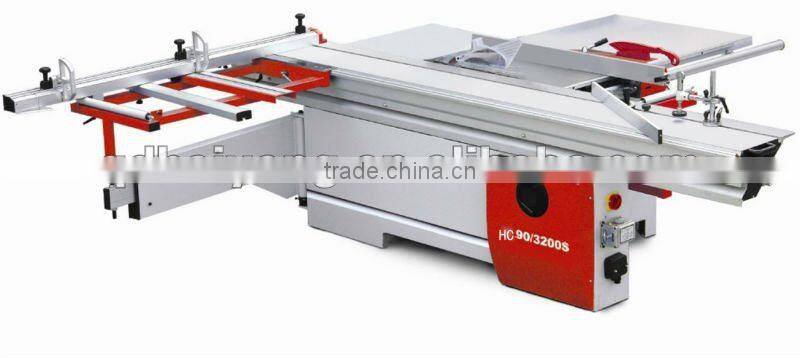

Woodworking Cutting Panel Saw HC 90/3200S photo-1
US$ 1,100 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Table Panel Saw
Use:
Woodworking
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Type Table Panel Saw
Use Woodworking
Style Horizontal
Place of Origin Shandong, China
Brand Name Haiyiong
Model Number HC 90/3200S

Specifications

* CE & CSA
* Motorizing up/down
* 5.5Kw motor, 350mm, Freud / AKE
* Heavy duty dust hood



Function description:

 1.Fit for processing various panel with similar rigidity, such as consistent plate, flake board, manmade plate, ABS  plate,   PVC plate, organic glass plate and solid wood;

 2. Guide rail of mobile workbench is made of imported chrome plated round stick with high rating accuracy;

 3. Surface of mobile workbench is made of high intensity extruding aluminum alloy with high intensity and no deformable performance;
4.Surface of mobile workbench passes treatment of oxidation, beautiful and wearable;

5. Obliquity of principle saw blade and scoring saw blade is directly displayed by precise inclinometer.



Technical specification:



Model

HC 90/3200S

Dimension of sliding table

3200*370mm

Gross cut capacity

3200mm

Width of cut between saw blade and rip fence

1250mm

Saw blade diameter

300mm(φ250-φ350)

Height of cut

90mm

Height of cut with saw blade at 45°

55mm

Speed of main saw spindle

3000/4000/5000rpm

Main spindle diameter

30mm

Tiling saw blade

90°

Main motor

5.5kw

Scoring saw blade diameter

120mm

Speed of scoring saw blade

9000r/min

Scoring spindle diameter

20mm

Scoring motor

0.75kw

Net weight

760kg

Gross weight

870kg

Overall dimension

3250*3150*900mm

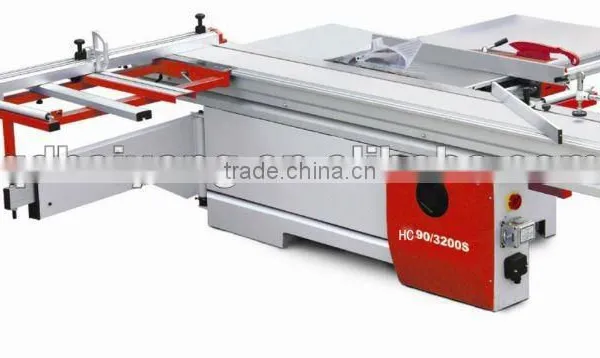

Woodworking Cutting Panel Saw HC 90/3200S

   Woodworking Cutting Panel Saw HC 90/3200SWoodworking Cutting Panel Saw HC 90/3200S

   round stick rail                                                                 internal structure
