Help CenterWoodworking 3-5 Layer Veneer/door Hydraulic Hot Press Machine
Related Products
-
High Quality Hydraulic Woodworking Hot Press MachineUS$ 12,000 - 20,000MOQ: 1 Set -
Plywood Hot Press MachineUS$ 1 - 25,000MOQ: 1 Set
-
Hot Press Machine For PlywoodUS$ 1 - 18,000MOQ: 1 Set
-
HY214 Hot Press MachineUS$ 3,600 - 17,800MOQ: 1 Set
-
Woodworking New Model With Heater Hot PressUS$ 1,100 - 20,000MOQ: 1 Set
Specifications

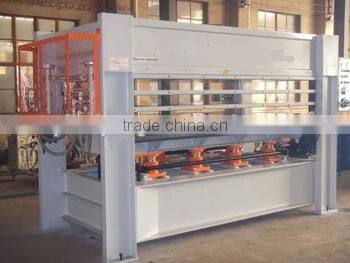

hot press machine has 3,4,5layers.the pressure is max 500T.
this is machine is with electric heater
Advantage and function of the hot press machine
1. can be used in various man-made board, fire prevention board manufacturing and wide application scope, particularly suitable for plywood produuction.
2. the automatic electric apparatus is easy and reable in operation
3. the foundation is simple with low investment.
4 the hot press machine can deal with veneer , membrane , formica, paper.
Technical specification of hot press machine
Model | BY214x8/16(3)H |
Total pressure | 160ton |
Feeding direction | Transversal |
Dimension of hot platen | 2500x1300x42mm |
Number of layers | 3 |
Number of platens | 4 |
Stroke | 300mm |
Diameter & stroke of Oil cylinder | 100mmx 300mm |
Number of cylinders | 8 |
Low pressure pump flux | 63L/min |
High pressure pump flux | 2.5L/min |
Heating medium | Steam or thermal oil |
Frame structure | welded |
Working pressure | 25Mpa |
Total power | 5.5Kw |
Thermal oil furnace motor power | 37.5Kw |
Number of stainless steel plates | 6 |
Overall dimension (Approx) | 3900x1300x2200mm |
Net Weight (Approx) | 8600Kg |
1 you can design the machine,just give us the requirement.
2 our edgineer will help you solve all the question you meet within 24hours after receiving the information.
3 we will provide the operation manual for each machine
4 we will make sure the machine we sell is ok for you. some spare parts we can provide for you.
