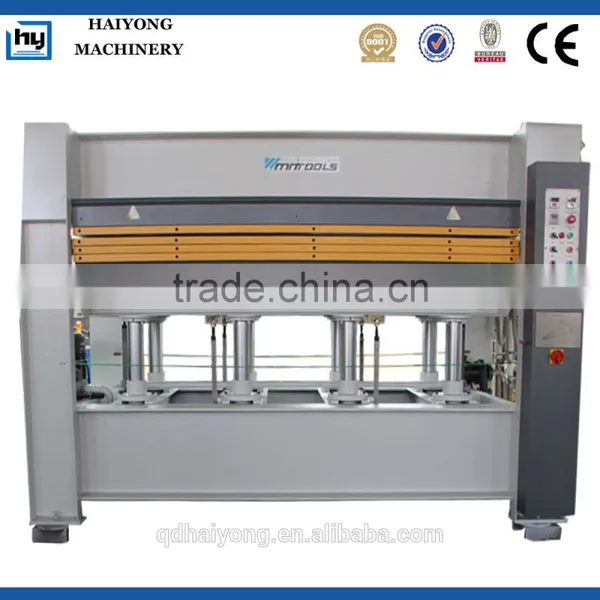

High Quality Hydraulic Woodworking Hot Press Machine

Name: High Quality Hydraulic Woodworking Hot Press Machine
Brand: HAIYONG
SKU: 141507668
Availability: InStock

US$ 12,000 - 20,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Hot Press

Application:

Door Press

Qingdao Haiyong Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Hot Press

Application Door Press

Pressure 100T-500T

Place of Origin Shandong, China

Brand Name HAIYONG

Model Number BY214-3

Voltage 380V

Power(W) 50kw

Dimension(L*W*H) 3400x1500x1800mm

Weight 6000KG

Certification ISO9001

Warranty 1 year

After-sales Service Provided Overseas service center available

hot press machine

Specifications of the hot press machine

1 use solid press platen. Steel welded frame with high precision and compact structure

2 the specialized valves impoert from german

3 electric compoment use schneider

4 cyllinder use import one, high quality.

5 High operation safety without operating risks

6 save electric power

we can design the conveyor for you to make the hot press machine more automatic.

Technical specification of the hot press machine ,we have other model ,lay from 1 to 5

model	BIY/4
TOTAL PRESS	160T
MAX TEMPETURE	200℃
number of layers	4
platen size	2600x1300mm(can make as requirenemt)
number of cylinder	8
diameter of cylinder	100mm
opening	100-120mm
heating way	electric headtted thermic oil
total power	90kw
closing speed	30mm/s
