HY214 Hot Press Machine

FOB Price

USD $3,600 - $17,800 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Place of Origin:	Shandong, China	Brand Name:	haiyong
Model Number:	HY214	After-sales Service Provided:	Overseas service center available

1) door hot press machine
2) adjustable pressure
3) one layer hot press

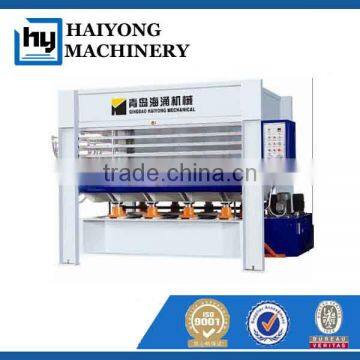

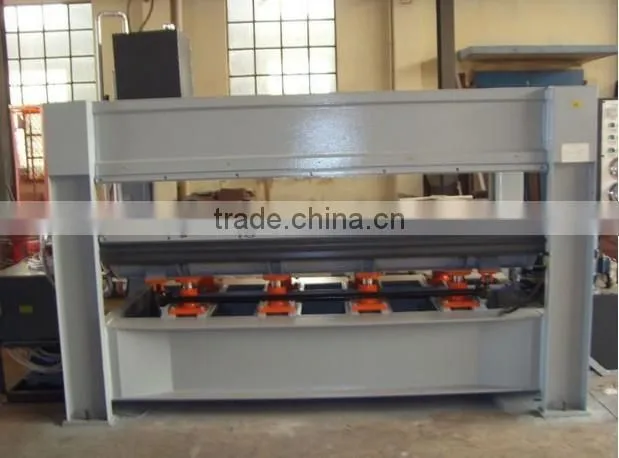

Hot press HY 214 Hot Press Machine

Specifications

1) door hot press machine
2) adjustable pressure
3) one layer hot press
4) Best solid hot platen

Model	HY214*8/120(1)H
Total pressure	120ton
Feeding direction	Transversal
Dimension of hot platen	2500x1300x42mm
Number of layers	1
Number of platens	2
Opening	300mm
Diameter & stroke of Oil cylinder	100mmx 300mm
Number of cylinders	6
Low pressure pump flux	63L/min
High pressure pump flux	2.5L/min
Heating medium	Steam or thermal oil
Frame structure	Welded
Working pressure of high pump	25Mpa
Total power	4.5Kw
Overall dimension (Approx)	360016002000mm
Net Weight (Approx)	7600Kg
Thermal Oil furnace power	37.5Kw

Qingdao Haiyong Machinery Manufacturing Co., Ltd.: Contact namelawrence li; Phone86-532-83246888; AddressQingdao Haiyong Machinery Manufacturing Co., LTD, Yujiacun Village, JIaobei Town, Jiaozhou, Qingdao, Shandong Province, China. Qingdao,Shandong
