Pollution Free Good Quality Jinpeng Brand Waste Oil Distillation Plant with CE ISO
- 30 Set / Sets per Month
- Lianyungang Qingdao Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Waste Oil Regenerating Equipment for Various Dielectric Oils
- BZ Transformer oil regeneration Equipment
- Transformer OLTC On-load Tap Changer Oil Purifier//separator/Regeneration/Dehydration Machine
- Insulation Oil Regeneration Machine
- On-load Tap Changer Oil Filter Oil Filtration Machine Oil Decanter
- Specilize Model BZ Transformer Oil Regeneration Unit
Product Details
Condition: | New | Flow: | none | Working Pressure: | normal pressure |
Place of Origin: | Henan, China | Brand Name: | JINPENG | Model Number: | XY-1 |
Usage: | Other, oil purifier | Voltage: | 380v | Power(W): | 18-25kw/h |
Dimension(L*W*H): | 2200mm*6000mm | Weight: | 25-40 tons, 25-40 tons | Certification: | CE ISO SGS |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

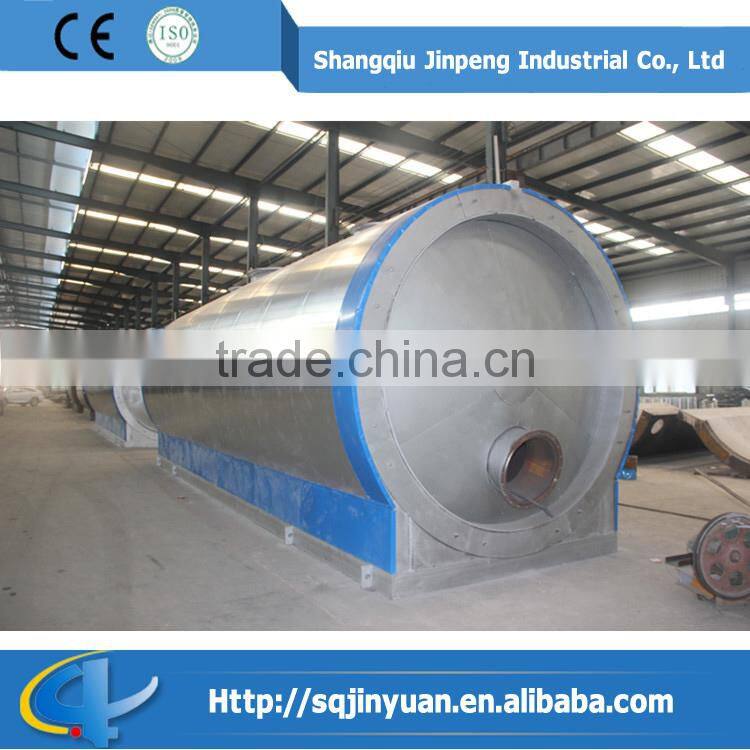

Pollution Free Good Quality Jinpeng Brand Waste Oil Distillation Plant with CE ISO
1> Security:

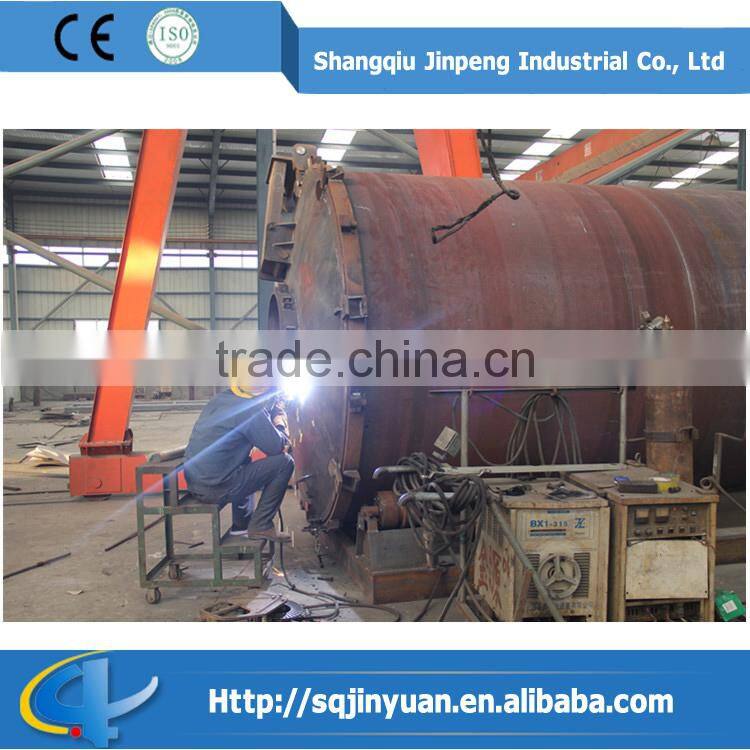

a: Adopting automatic submerged-arc welding technology

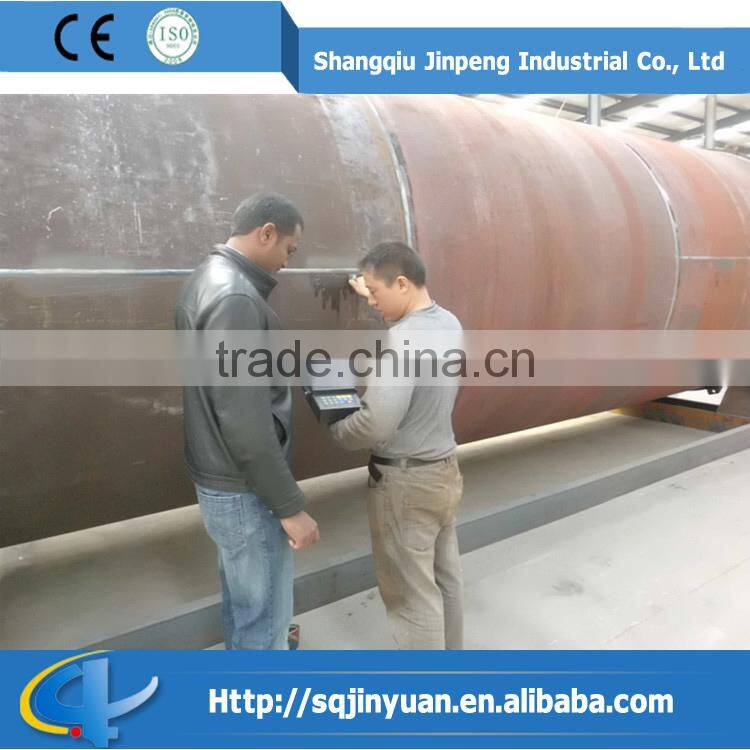

b: All of the weldings will be detected by the ultrasonic nondestructive testing method to ensure the welding quality and the welding shape.
c: Adoptingmanufacture process controlling system on the quality, every manufacture process, manufacture date, etc.

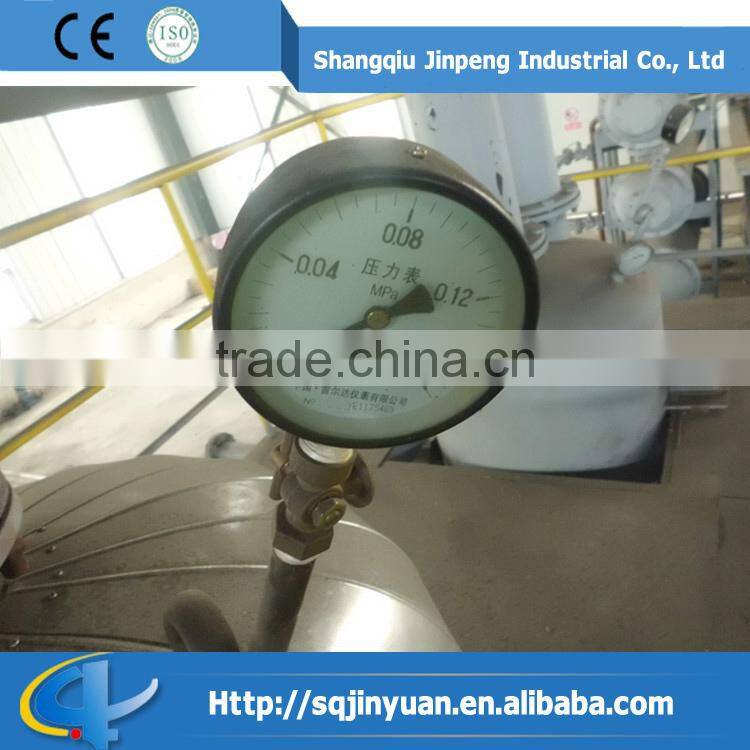

d: Equipped with antiexplosion device, safety valves, emergency valves, pressure and temperature meters, as well as the alarming system.
2> Environmental-friendly:

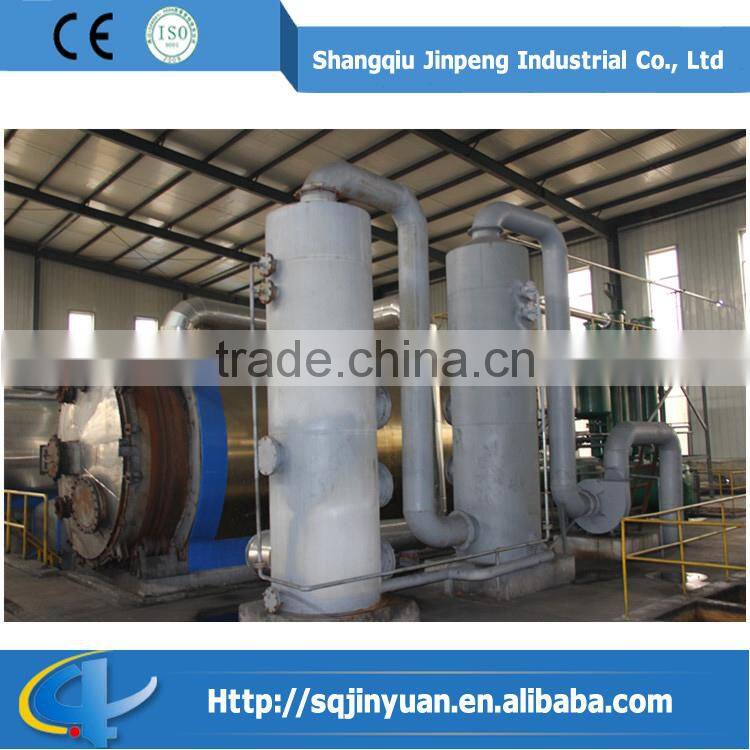

a: Emission Standard: Adopting special gas scrubbers to remove acid gas and dust from smoke.
b: Smell during operation: Fully enclosed during the operation.
3> Energy conservation and low cost on operation:
Special covers of the reactors and chambers can keep hot during the heating in good efficiency as well as the direct heating system to save energy and cost.
Specification of Waste Oil Distillation Plant
NO | ITEM | PROJECT |
1 | Suitable raw materials | Waste engine oil, pyrolysis fuel oil, crude oil |
2 | Structure | Horizontal type |
3 | Capacity(24 hours) | 3~5 tons |
4 | Work pressure | Normal pressure |
5 | Oil yield | 85%-95% |
6 | Power | 18-25 KW/H |
7 | Cooling method | Cycle water |
8 | Condensers | Good quality condensers |
9 | Emission treatment | New de-sulfurization smoke scrubbers |
10 | Heating method | Both direct and indirect heating |
11 | Type of installation | With foundation |
12 | Noise dB (A) | Less than 85 |
13 | Dimension of reactor | 2200*6000mm |
14 | Operating mode | Semi-continuous operation |
15 | Main chamber weight | 10-13 tons |
16 | Total weight | 25-40 tons |
17 | Installation space required | 35m*15m |
18 | End product | Non-standard diesel oil |
19 | Manpower | 1~2/shift |
20 | Shipment requirement | 1*40HC+1*40FR |
1. Packaging Detail:
Needs 2*40HQ+1*40FR for delivery.
All goods are packed with exported standards package to make sure no damage during transportation.
2. Shipment: 40 days after the first deposit.

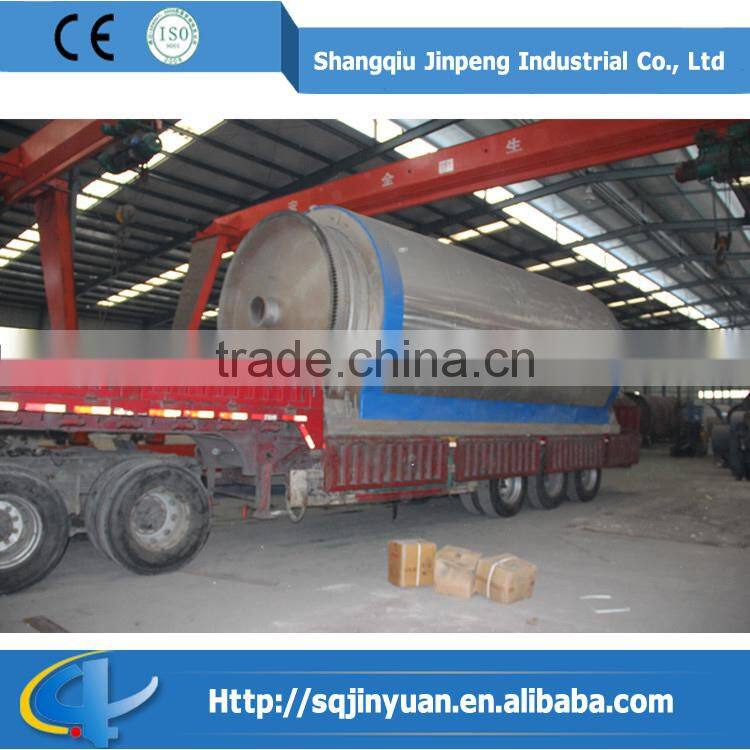

Delivery Pictures
AFTER SALES SERVICE:
1. Quality warranty period: One year warranty for the main reactor of pyrolysis machines and lifetime maintenance
for complete set of machines.
2. Our company sends engineers for installation and commissioning in buyer's site including the training of skills of
the buyer's workers on operation, maintenance, etc.
3. Supply layout according to buyer's workshop and land, civil works information, operation manuals, etc. to the
buyer.
4. For the damage caused by the users, our company provides the parts and accessories with cost price.
5. Our factory supplies the wearing parts with the cost price to clients.
