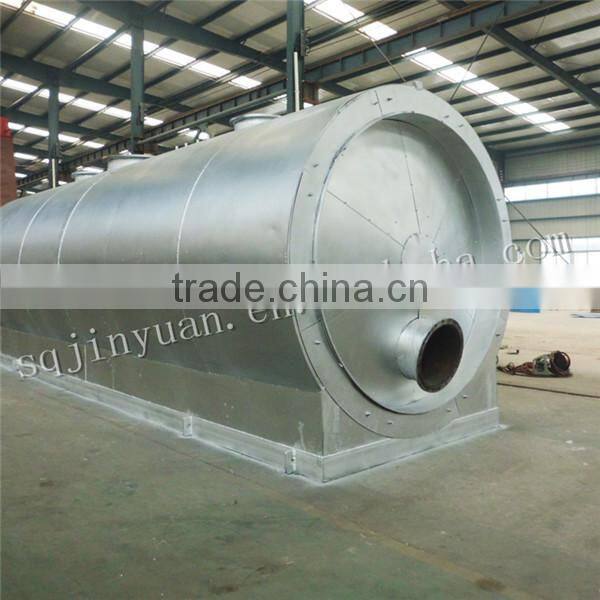

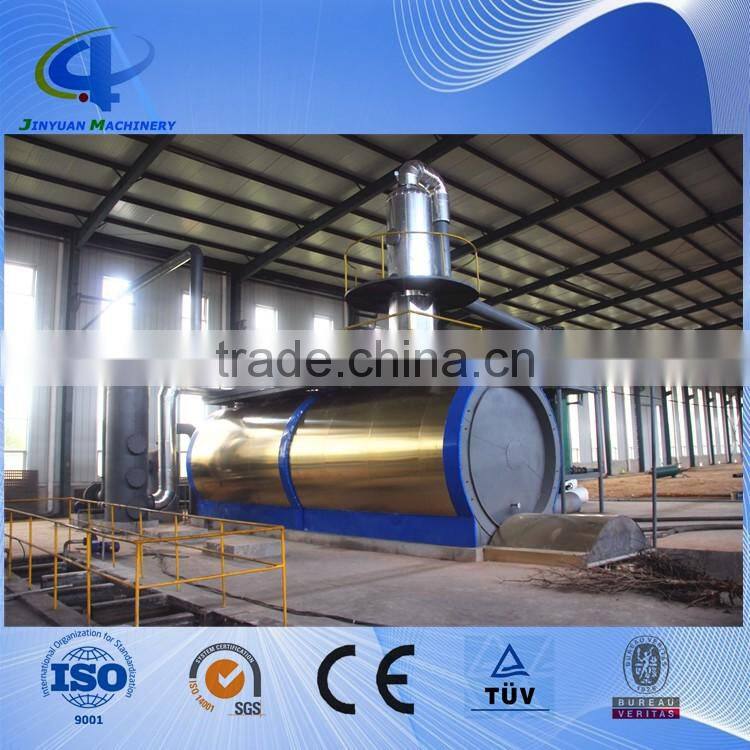

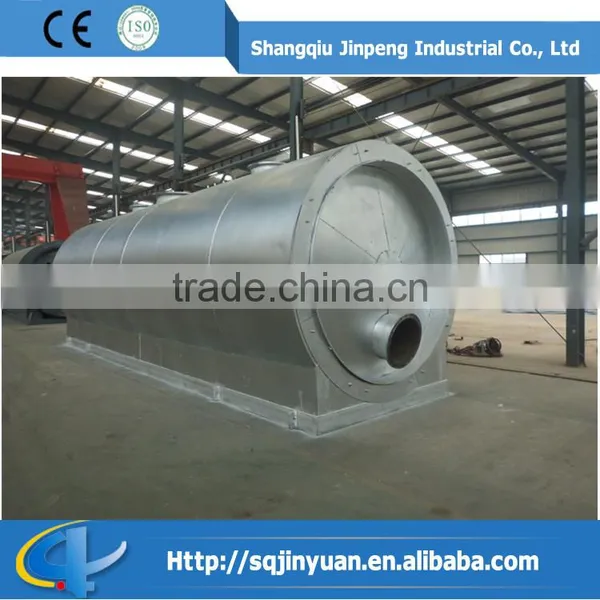

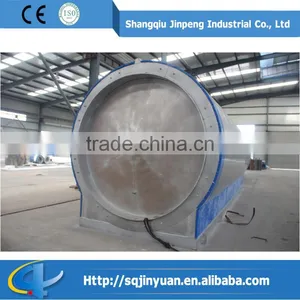

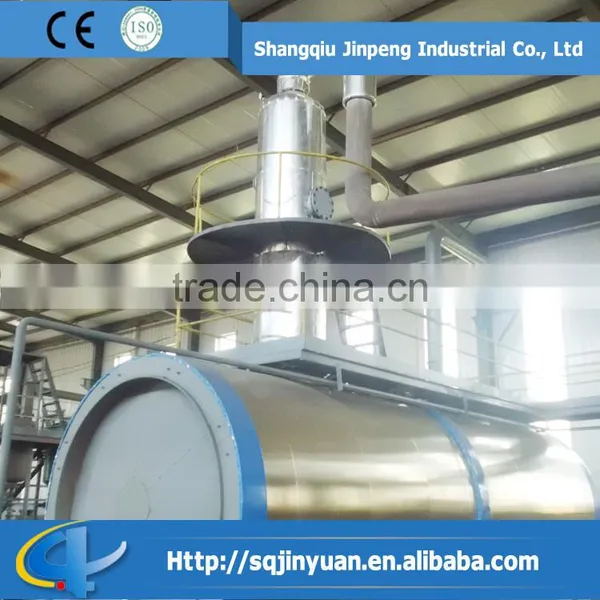

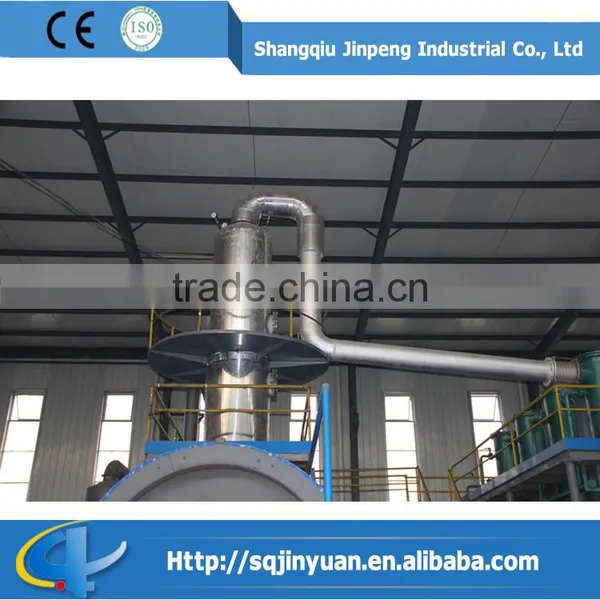

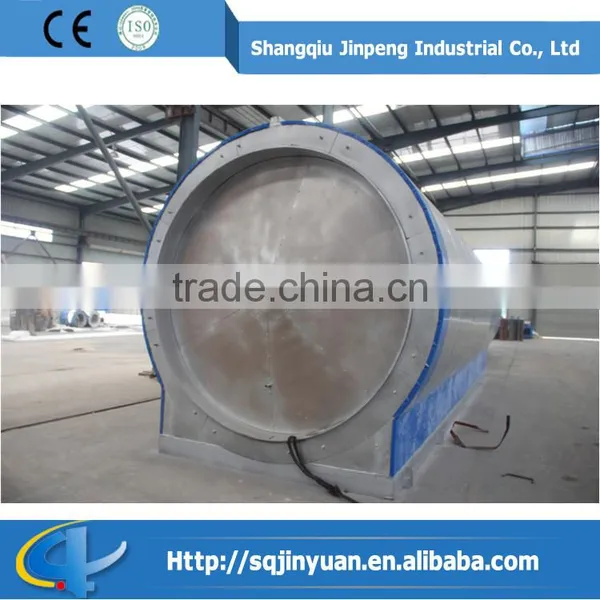

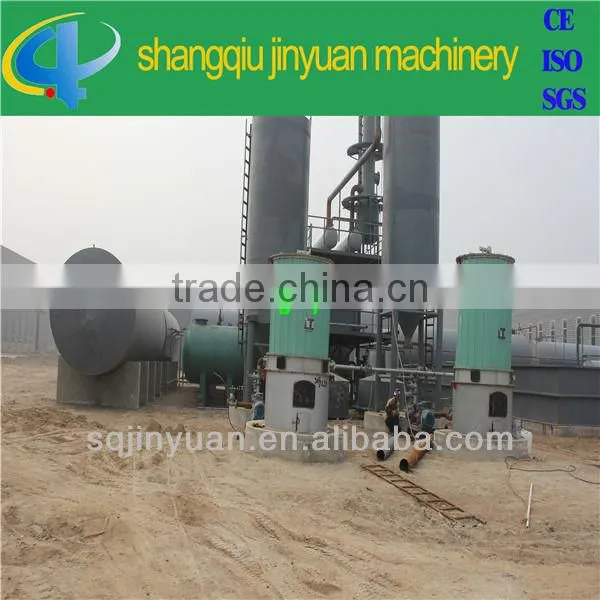

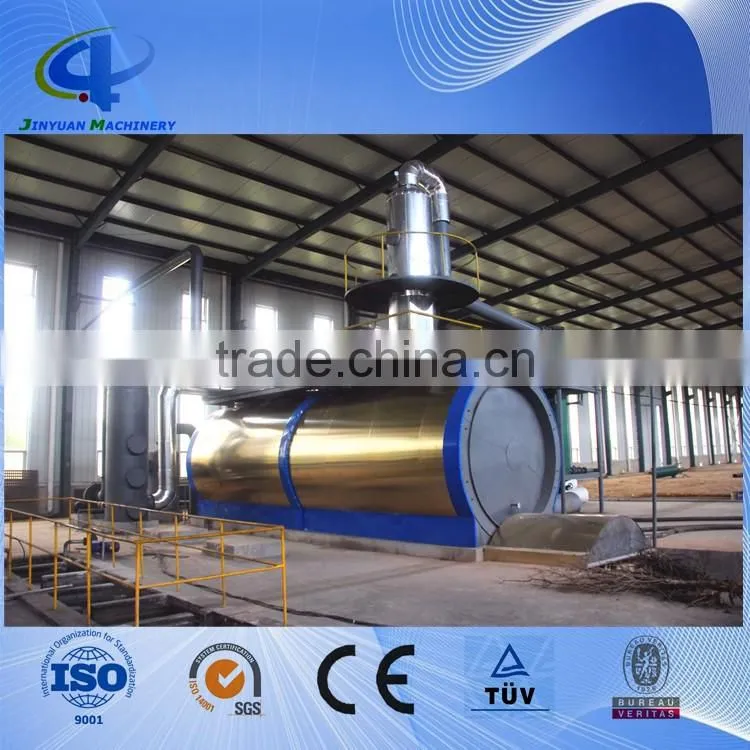

Waste Engine Oil/Plastic Oil Distillation Equipment to Diesel and Gasoline
1> Security:
a:Adopting automatic submerged-arc welding technology
b:All of the weldings will be detected by the ultrasonic nondestructive testing method to ensure the welding quality and the welding shape.
c:Adoptingmanufacture process controlling system on the quality, every manufacture process, manufacture date, etc.
d:Equipped with antiexplosion device, safety valves, emergency valves, pressure and temperature meters, as well as the alarming system.
2> Environmental-friendly:
a: Emission Standard: Adopting special gas scrubbers to remove acid gas and dust from smoke
b: Smell during operation: Fully enclosed during the operation
3> Energy conservation and low cost on operation:
special covers of the reactors and chambers can keep hot during the heating in good efficiency as well as the direct heating system to save energy and cost.
NO |
ITEM |
PROJECT |
1 |
Suitable raw materials |
Waste engine oil, pyrolysis fuel oil, crude oil |
2 |
Structure |
Horizontal type
|
3 |
Capacity(24 hours) |
3.5~6.5 tons |
4 |
Work pressure |
Normal pressure
|
5 |
Oil yield |
85%-95% |
6 |
Power |
12KWH |
7 |
Cooling method |
Cycle water
|
8 |
Condensers |
3 pieces of horizontal condensers |
9 |
Emission treatment |
New de-sulfurization smoke scrubbers
|
10 |
Heating method |
Hot air
|
11 |
Type of installation |
With foundation |
12 |
Noise dB (A) |
Less than 85 |
13 |
Dimension of reactor |
2200*6000mm/2500*8800mm |
14 |
Operating mode |
Semi-continuous operation
|
15 |
Main chamber weight |
10-13 tons |
16 |
Total weight |
25-35 tons
|
17 |
Installation space required |
35m*15mm |
18 |
End product |
Non-standard diesel oil |
19 |
Manpower |
1~2/shift |
20 |
Shipment requirement |
1*40HC+1*40FR |
The whole workflow chart:
Reactor diameter |
Container |
2200mm |
Two 40’HQ |
More than 2200mm |
One 40’FR&one 40’HQ |
After-Sales Service |
|
Pre-sales Service:
The wide product range enables us to provide our customers with stand-alone machines or complete processing plants. Based on our customers’ request and budget, our experts make efficient, reliable solutions. Following customers’ order we produce strictly, what’s more, before placing the order every customer has the chance to visit RESEM working machines or complete plant in the site.
After-sales Service:
Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the customers factory to help install the customers’ plants. Necessary training about machine daily maintenance to local workers is provided also.
|
The advantages of the equipment are Safety, Efficient performance(high oil output and high oil quality), Energy saving, Simple production process and Environment-friently.
Our service aim is For the sake of and satisfying the customers, Developing with the customers.
The people of Jinyuan are increasing innovation and adhering to the spirit of enterprise-good faith and based on the reality.

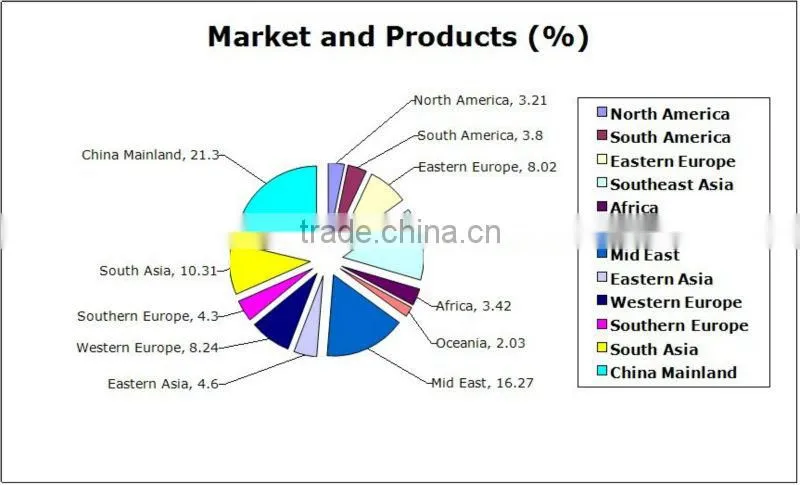

Our market distribution:
Our certificate:
