Home > Products > Carbon Black Granual Plant > XY-C850 Waste Tyre Pyrolysis Carbon Black Granule and Refining Machine
XY-C850 Waste Tyre Pyrolysis Carbon Black Granule and Refining Machine
- 30 Set / Sets per Month
- Lianyungang qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Rubber Mixer | Place of Origin: | Henan, China |
Brand Name: | JINPENG | Model Number: | XY-C850 | Voltage: | 380v |
Power(W): | 90-140kw | Dimension(L*W*H): | 30m*10m*8m for installation of the whole plant | Weight: | 25-40 tons |
Certification: | CE, ISO | Warranty: | 1 year warranty for the main mill | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
XY-C850 Waste Tyre Pyrolysis Carbon Black Granule and Refining Machine
1. Main parts
a. Main mill
b. Impurity separator
c. Dedusting system
d. Granulating machine
e. Dryer
f. Packing machine

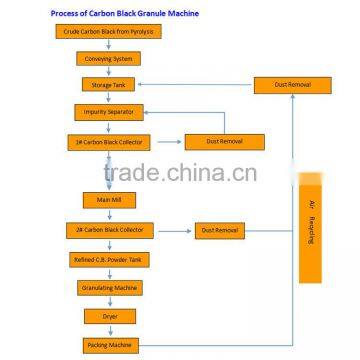

2. Process Flowchart
Process Description
a. Crude carbon black after pyrolysis will be transport into the Storage Tank by Conveying System.
b. Through Impurity Separator, small steel and ash in the crude carbon black will be removed, the working principle is Archimedes Spiral. Then the carbon black will be collected by 1# Collector, then goes into C.B. Hopper.
c. In the Main Mill, the carbon black will be made into certain meshes the client requires, then collected in 2# Collector and after removing dust, goes into Refined C.B. Power Tank.
d. The next step is going into Granulating Machine and then into Dryer by Lifting Machine, the refined C.B. Will be dried by hot air.
e. The last step, Packing Machine.
Notes:
1. The temperature of end refined carbon black granule is about 20-30 centigrade. The size of the granule
can be adjustable, for example, if the rotated speed of the Granule Machine is slow the granule will be bigger, and vice versa.
2. Better mill the crude carbon black into 4000 meshes, for the mobility of the carbon back will be better if the carbon black finer, easy to pellet.
3. FEATURES OF CARBON BLACK GRANULE MACHINE:
a. High automation with automatic operation.
b. Unique and original manufacturing and techology with our own formula of our equipments in China.
c. long life span, more than 6 years.
d. Fully enclosed operation, environmental friendly without pollution.
e.The carbon black as the end product can be made into N330, N660,N770 stands according to customers,
different requirement.
Delivery | Needs about 3-4 *40HC for delivery and shipment, all the goods will be packed with standard package to make sure no damage during transportation. |
Shipment | 40 days after the first deposit. |

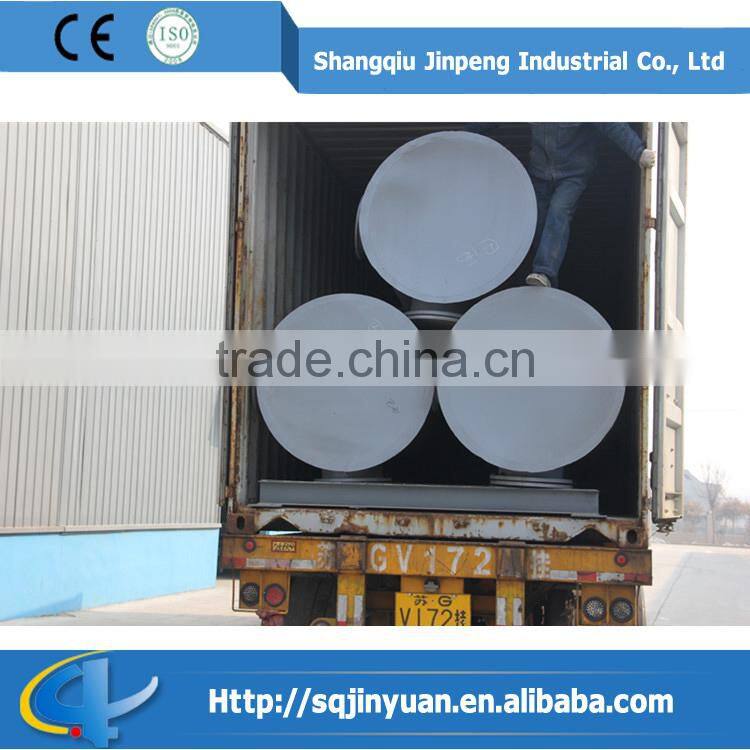

Delivery Pictures
1. Quality warranty period: One year warranty for the main reactor of pyrolysis machines.
2. Installation: According to the requirement of the buyer, our company sends engineers for installation and commissioning in buyer's site including the training of skills of buyer's workers on operation, maintenance, etc.
3. Supply layout according to buyer's workshop and land, civil works information, operation manuals, etc. to the buyer.
4. For the damage caused by the users, our company provides the parts and accessories with cost price.
5. Our factory supplies the wearing parts with the cost price to clients.
Shangqiu Jinpeng Industrial Co., Ltd, as the first domestic professional institute in the recycling of solid wastes( waste plastics, waste rubber, tyres), is a technology innovate demonstration enterprise involving scientific research, development, manufacture and sales together.
Founded in 1985, our company has achieved great progress in waste recycling area. Nowadays, our company has owned 14 national patents and a provincial engineering research center. And our products has achieved CE, SGS, ISO, BV, TUV certifications. The emission can meet GB13271-2001 related standards.
Our company has developed XY-series environmental protection equipments with the outstanding
advantages of less investment, high efficiency, simple operation, environmental friendly and so on. Up to now, our products include Pyrolysis Plants for waste rubber, plastic and tyres, normal pressure Distillation Plants for waste engine oil, crude oil and the Carbon Black Deep-process Machines.
Due to the unique advantages, our machines are widely used in China and overseas, such as Poland, Austria, Albania, Turkey, Republic of Korea, Thailand, India, Africa countries, etc.
