If you want Sonochemistry Application , please skip over the Products Categories :) ↓
♦ Ultrasonic Cutter Ultrasonic Food Cutter Ultrasonic Food Cutting Whole Set Machine Ultrasonic Non-woven Fabric Cutter Ultrasonic Label Cutter Ultrasonic Curtain Fabric Cutter Ultrasonic Rice Fabric Welding and Cutting Ultrasonic Multi-functional Cutter Ultrasonic Rubber Cutter ♦ Ultrasonic New Application Ultrasonic Emulsifier Ultrasonic Herbal Extraction Ultrasonic Homogenizer Ultrasonic Sonocheistry Processor Ultrasonic Spot Welder Ultrasonic MINI welder Ultrasonic Tea Bag Welding and Cutting Ultrasonic Melt Metal Treatment Device Ultrasonic Atomizer Ultrasonic Solder Ironing Equipment Ultrasonic Drilling Equipment for Magnetic Core Ultrasonic MI Cable End Striper Ultrasonic Impact Treatment Device Ultrasonic Transducer for Breaking Kidney Stone ♦ Ultrasonic Parts Ultrasonic Transducer Ultrasonic Oscillator Ultrasonic Generator Ultrasonic Sonotrode ♦ Ultrasonic Analyzer Impedance Analyzer ♦ New Products >>> |
♦ Application field
Sonochemistry can be applied to almost all chemical reactions, such as separation and extraction , synthesis and degradation , bio-diesel production , Governance of micro-organisms , the degradation of toxic organic pollutants , deal with biodegradable , biological cells crushed , and Dispersed and cohesion , homogenizing ,milling , disintegration , emulsifying , extraction and so on .
Sonochemistry processing system is another application in sewage treatment and cleaning the area of anti-scaling. Many experts and scholars have done a substantial amount of research experiments to prove the ultrasound equipment and pipeline cleaning side fruitful. Ultrasonic cleaning equipment, low power consumption scale, to adapt to a wide, easy to install, equipment almost do not need any modification.
Mainly used in extraction of oil , biodiesel , natural pigment , polysaccharide , flavonoids , alkaloids , polyphenols , organic acids , the composition , fat . Ultrasonic cell crushing , to extract essential oil , natural pigment extraction , the polysaccharide extraction , extraction , alkaloids extracted flavonoids , polyphenols extraction , organic acid extraction , oil extraction , Chinese medicine extract and so on .
BANRY Ultrasonic Emulsification (emulsifier) is composed of ultrasonic transducer (converter) with cover , booster , horn ( sonotrode , probe ) and generator .
♦ Definition of Sonochemistry
This ultrasonic energy not only to promote or stimulate a number of chemical reactions, speed up the chemical reaction speed, even some of the chemical reaction can change the direction of some unexpected results and a miracle. This is the sonochemistry.
♦ Principle of Ultrasonic Sonochemistry - Acoustic Cavitation
Ultrasonic in the liquid produced hundreds of thousands of times per second, make the liquid to break into tiny bubbles of vibration, these bubbles in the role of the continuous, rapid growth, then suddenly closed, produce the super shock wave, around the bubble produced thousands of atmospheres of pressure and local high temperature, the physical phenomenon known as ultrasonic cavitation effect.
| Brand / Product | BANRY / Sonochemistry Processor | |||||
| TYPE | BR-28SH | BR-20SH-5 | BR-20SH-10 | BR-20SH-15 | BR-20SH-20 | BR-20SH-30 |
| Frequency | 28kHz | 20 kHz | ||||
| Max. power | 200W or 500W | 500W | 1000W | 1500W | 2000W | 3000W |
| Handing Capacity (L/h) | ≤500 | ≤500 | ≤800 | 200-1000 | 300-1600 | 1600-2500 |
| Apply | laboratory | Production line , can be used in combination | ||||
| Allow pressure | Max≥5 MPa | |||||
| Allow temperature | Max≥350°c | |||||
| Generator | Digital generator can be adjusted the output amplitude from 50% to 100%, frequency tracking automatically to sure working continuously | |||||
| Cable | Standard 5m Special length, please inform us | |||||
1. Optional frequency and power, 40kHz — 20 kHz , 200W - 3000W .
2. Withover current , overvoltage protection ,to ensuresystem security .
3. Frequency automatic tracking adjustment , to avoid the load impedance with the ambient temperature , the working medium due to factors such as changes in the larger power fluctuations.
4. Constant power , good effect .
5. Ultrasonic digital generator , small size , light weight and high efficiency .
6. Reasonable structure , easy ventilation , continuous running and reliable operation.
Modular design , can be by several hundred watts or several kilowatts of power to form tens kilowatts generator , which can optimize the combination of the transducer, and then ensure transducer work in the best condition; such as a generator fails, the other unitstill work , easy to repair the damaged unit .
♦ After-sale Service
Please click the following pictures to see your interesting products details :
High efficiency essential oil extraction ultrasound sonochemistry machine High quality alkaloid extraction ultrasound sonochemistry machine

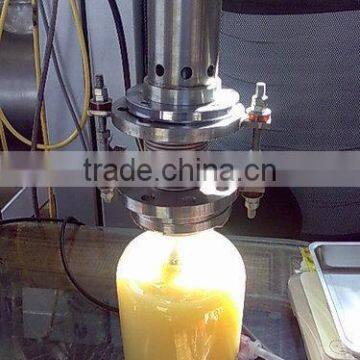

Ultrasonic Ultrasound in industry food processor
