Ultrasonic Hand Gun (handle Spot) Welder

Specifications

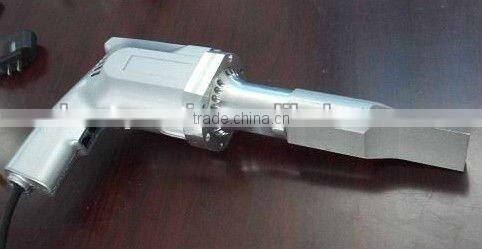

ultrasonic hand gun (handle spot) welder

ultrasonic hand gun (handle spot)  welder is a general designation for all ultrasonic welding application equipments in handing use, including the Ultrasonic hot fix machine, plastic welding machine, ultrasonic cutting machine. It can be separately used by hand or fixed on benches to form the automatic ultrasonic equipment.

Ultrasonic Handle Welder is basically formed by ultrasonic transducer, booster, horn, shell, and generator. The ultrasonic generator transforms commercial electric into AC electric of high frequency and high voltages. Then this current is transported to ultrasonic transducer. In fact, the ultrasonic transducer is a kind of part for energy transformation. It can transform the inputted electric energy into mechanical energy, i.e ultrasonic. It appears in the vertically flexing movement of transducer. This flexing frequency equals to the AC frequency supplied by the generator. The booster can not only fix the whole Ultrasonic Vibration System, but also amplify the transducer output amplitude. The horn amplifies this amplitude even and transport ultrasonic waves to working piece. To melt the glue, force crystal-ball (stone) firmly sticked on clothes, that’s what Ultrasonic Crystal-ball fixer do. To melt part of plastic hairpins, stamp strass in, that’s Ultrasonic hot fix machine. To be fitted with cuniform horn, cut piece material, that’s Ultrasonic cutting machine.

Major Technical Parameters

Frequency:     20kHz ,28 kHz,30 kHz,38 kHz,40 kHz

Power: 50W,100W,200W,300W,500W

Power Adjusting: Step or continuous

Switch: handle or foot switch

Working time control: 0-999seconds

Horn sonotrode Diameter: 30mm,40mm,50mm,60mm

Material of Horn: steel, aluminum alloy, special blade

Application : clothes, jewelry, plastic processing, manufacturing, auto industry
