Specifications
Ultrasonic seamless sewing module is used for cloth's sewing and cutting, which is the newest one of technical achievements inUltrasonic seamless sewing module
MODEL: BR-28SH/BR-20SH
INTRODUCTION:

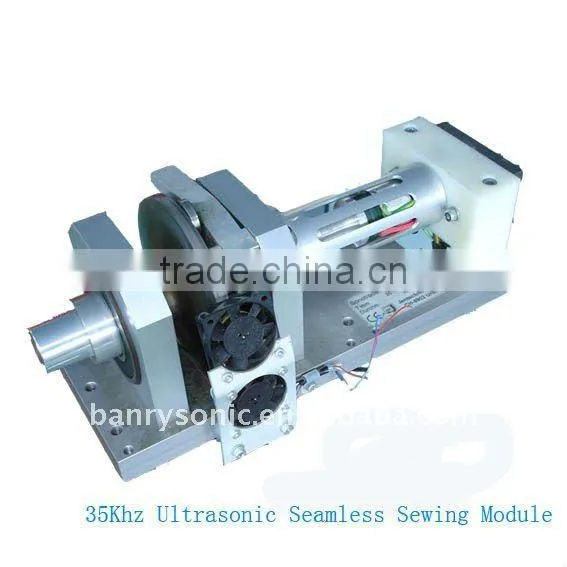

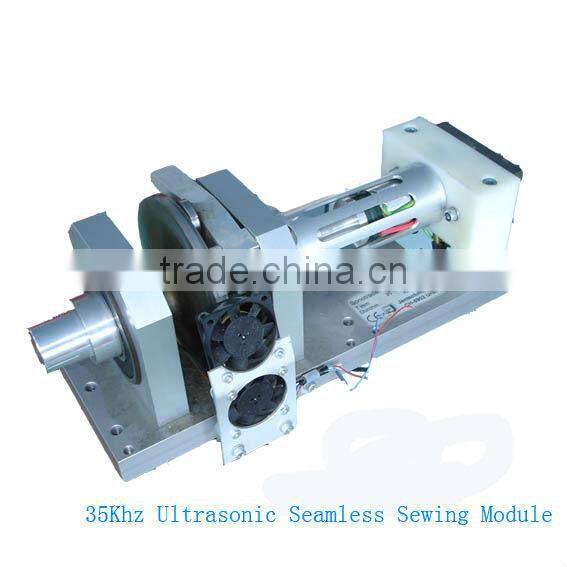

The Ultrasonic seamless sewing module is composed of ultrasonic transducer (converter) with cover,booster, horn (sonotrode) generator and rack.
The ultrasonic rotary type vibration is used for cloth’s sewing and cutting, which is the newest one of technical achievements in the world. Our company closely follows up this newest foreign scientific research achievement, thus developed the ultrasonic seamless sewing core Part in China. It’s the key part for ultrasonic seamless sewing machine (Also named ultrasonic radial direction sewing machine). It’s our company’s original creation, which thoroughly solved the common problems caused by ultrasonic vertical vibration:the ultrasonic horn’s moving direction and the cloth’s one are inconsistency and asynchrony. With the help of our ultrasonic seamless sewing core Part, the cloth’s sewing accuracy is greatly improved. Thus it make it possible that widely use the ultrasonic technology in garment sewing industry. The ultrasonic seamless sewing has much advantages: Fast welding speed, high strength, nice welding seam, good sealing,low energy consumption and easy operations so on. So it’s development trend for sewing technology.
MAIN ADVANTAGE:
- Fast welding speed, high strength
- Nice welding seam, good sealing
- Low energy consumption and easy operations
SPECIFICATION:
ITEM |
DECRIPTION |
|
TYPE |
BR-35FR1 |
BR-35FR2
|
Frequency |
35khz |
35khz |
Max. power |
600W |
400W |
Rotary Welding Horn’s Width |
12mm |
7mm |
Synchronizing Belt Matched |
The Length is not more than730mm, the Width 12mm |
|
Max. Allowable Rotation Speed |
100 r/min. |
|
Install Bolt |
M8, 4 pcs |
|
Generator |
Digital generator can be adjusted the output amplitude from 50% to100%, continuously working |
|
Cable |
Standard 5m Special length, please inform us. |
|
APPLICATION:

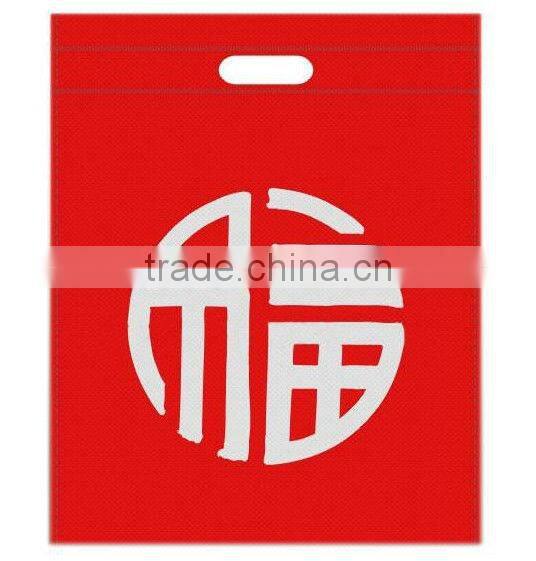

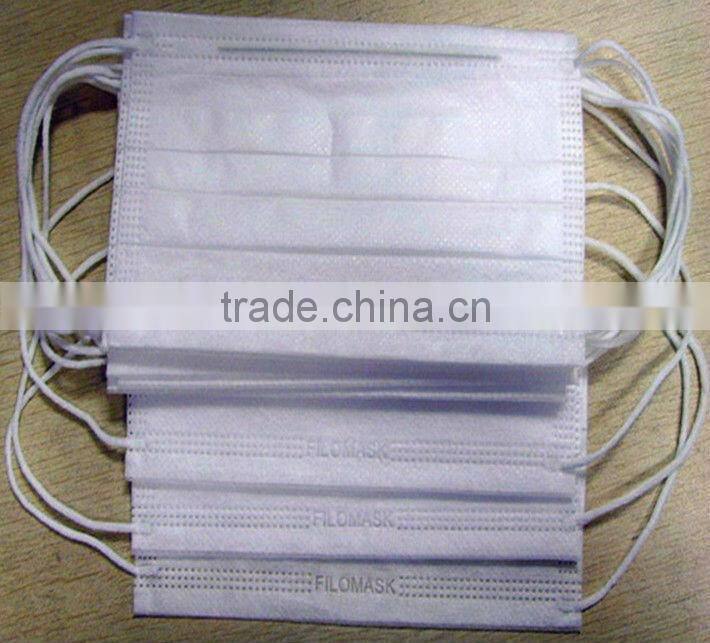

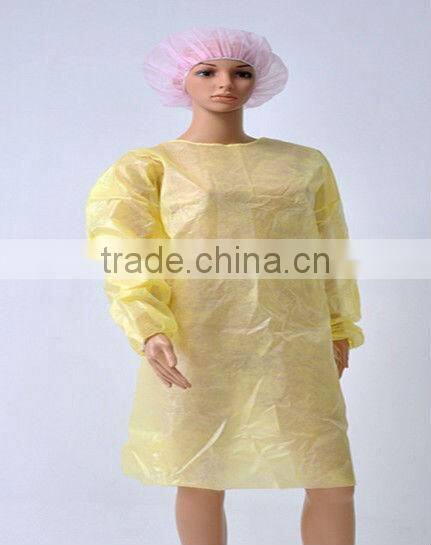

It can be used in nearly all thermoplastic clothes (namely the clothes will be softening while is heating).
PACKAGING:
DELIVERY TIME:15DAYS
PAYMENT TERMS:T/T,L/C,ESCROW
GUARANTEE: one year for whole equipment warranty. Equipment for the warranty, please contact us first. We will immediately feedback how to return repair.
FAQ:
1. Do you have it in stock?
Sorry, haven’t.
2. Could you supply sample?
Sorry, we can't supply sample for free, because its value is high.
3. Could you make it according to our special requirements?
Of course, we can do. Please tell us your idea or your application.
4.How long do you make the order product?
About 20days
5. Do you have operating manual?
Of course, we will put it with the goods together.
6. How about the quality?
One time business is not our target, we hope to be as one hundred enterprises.
7. Could you do OEM?
Yes, of course.
8. Could we as your agent?
Of course, it’s our pleasure.
Requirements:
1. Need to know ultrasonic knowledge
2. Has a good business reputation.
3. Have certain economic strength.
4. Strong ability of management
5. Have a sound sales network (with the ability to expand the market).
6. Agents need to implement the unified national price policy of our company, may set the sale price of do STH without authorization, shall not be string.
