Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Pipe & Tube > 316 304 Stainless Steel Tube Radiator

316 304 Stainless Steel Tube Radiator

Name: 316 304 Stainless Steel Tube Radiator
Brand: SINCO
SKU: 141505806
Availability: InStock

Wenzhou Guotai Pipepline Manufacturing Co., Ltd.

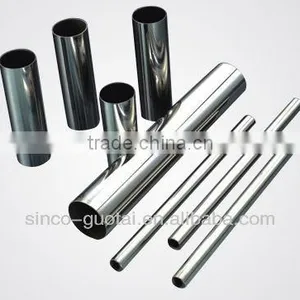

316 304 Stainless Steel Tube Radiator thumbnail-1

316 304 Stainless Steel Tube Radiator photo-1

US$ 2,500 - 7,000 MOQ: 1 Ton

Key Specifications

Get Latest Price

Standard:

JIS, AISI, ASTM, GB, EN

Place of Origin:

Zhejiang, China

Brand Name:

SINCO

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard JIS, AISI, ASTM, GB, EN

Place of Origin Zhejiang, China

Brand Name SINCO

Model Number 304 316L

Type Welded

Steel Grade 300 Series

Application Food Dairy and so on

Certification ISO

Welding Line Type EFW

Thickness 0.8-3mm

Outer Diameter 6-323.8mm

Specifications

316 304 stainless steel tube radiator
1.Certification:ISO9001:2008
2.Specification:OD32*T0.75*L145mm
3.surface:Picking

Product Description

1.Certification:ISO9001:2000

2.Specification:OD32*T0.75*L145mm

3.Surface:good consistenc

4.Application for Food, Dairy and so on.

Packaging & Shipping

Delivery time:10-30 days

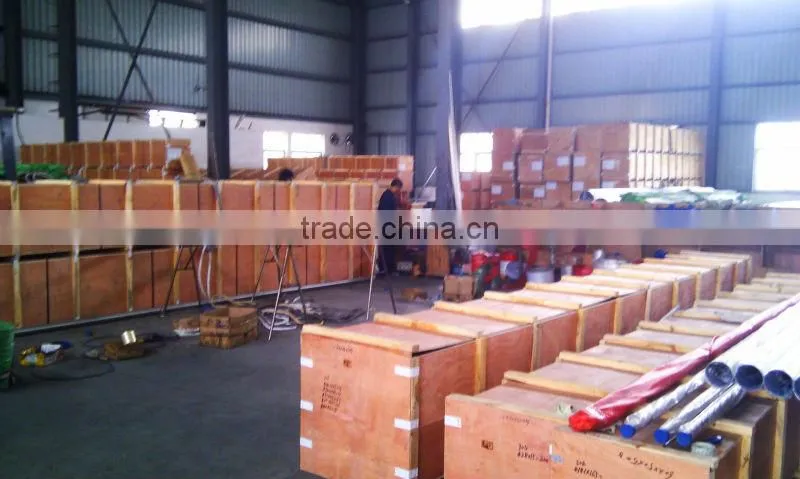

Packing: plywood case

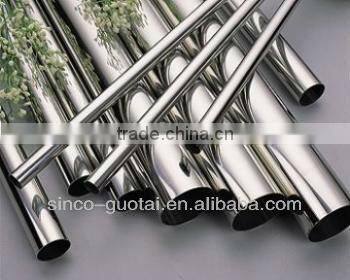

Product Pictures

Stainless steel sanitary tube /pipe

Stainless Steel Welded Pipe 1.Grade: 300series 2.Standards:ASTM A249,A554,A270 3.OD:16-219mm WT:0.8-4.0mm 4.Manufacture

Standard: JIS G3447 ASTM A270 ASME SA270

High Grade:304 304L 316 316L

KS D 3585 (JIS G 3447)						ASTM A 270
Out Diameter (mm)	Wall Thickness (mm)	Weight (kg/m)	Tolerance (mm)			Out Diameter (mm)	Tolerance (mm)
Out Diameter (mm)	Wall Thickness (mm)	Weight (kg/m)	Out Diameter	Wall Thickness	Length	Out Diameter (mm)	Out Diameter	Wall Thickness	Length
25.4	1.2	0.723	±0.15	±10%	+10 -0	25.4	+0.05 -0.20	±12.5%	+3.2 -0
31.8	1.2	0.915	±0.16			-	-
38.1	1.2	1.10	±0.19			38.1	+0.05 -0.20
50.8	1.5	1.97	±0.25			50.8	+0.05 -0.28
63.5	2.0	2.47	±0.25			63.5	+0.05 -0.28
76.3	2.0	3.69	±0.25			76.2	+0.08 -0.30
89.1	2.0	4.33	+0.30 -0.40			-	-
101.6	2.6	6.41	+0.35 -0.40			101.6	+0.08 -0.38

Lenght: 6000mm (as required)

Craft: Bright annealing,inside bead removed,inside&outside polish.

Usage: Milk and food industrial,medical(drug) manufacture profession,pure water industry,electronic engineering, fiber , paper making, beer brewing, high purified gas industry, cosmetic industry, etc...

Chemical Composition

Grade	Chemical Composition
Grade	C max	Si max	Mn max	P max	S max	Ni	Cr	Mo	Others
TP 304	0.08	0.75	2	0.04	0.03	8 - 11	18 - 20
TP 304L	0.035	0.75	2	0.04	0.03	8 - 13	18 – 20
TP 316	0.08	0.75	2	0.04	0.03	10 - 14	16 – 18	2 – 3
TP 316L	0.035	0.75	2	0.04	0.03	10 - 15	16 - 18	2 - 3

Mechanical Properties
Grade	Tensile Strength Mpa, (Min)	Yield Strength Mpa, (Min)	%Age Elongation in 50mm gauge length min	Hardness (Max)
Grade	Tensile Strength Mpa, (Min)	Yield Strength Mpa, (Min)	%Age Elongation in 50mm gauge length min	BHN	Rb
304	585	244	56	191	72
304L	585	210	56	191	72
316	615	245	57	197	75
316L	585	215	56	197	75

May be you will need other shape tube

SQUATR & RECTANGULAR TUBE SERIES

TUBE O.D. mm	TUBE WALL THICKNESS (mm)	FINISH	LENGTH (mm)
10 × 10 × -15 × 15	0.5-1.5	A)No-Polish B)240-600 Grit c)800#-1000# Super Mirror finish D)Titanium finish	6000/6200/cut length Special cut length available Lengths,Cutting,De-burring
16 × 16 × -25 × 25	0.5-1.5
30 × 30 × -35 × 35	0.7-2.5
50 × 50 × -80 × 80	1.0-4.0
90 × 90 × -150 × 150	1.0-4.0

20 × 10-30 × 15	0.5-1.5
38 × 25-40 ×6 0	0.6-2.5
75 × 45-120 × 60	1.0-4.0
120 × 60 above	1.5-4.0

HALF ROUND TUBE (D-TUBE)

TUBE O.D. mm

TUBE WALL THICKNESS

(mm)

FINISH

LENGTH (mm)

62.7 × 32.4

1.5-2.0

Mill

Polished

(All standard brushed to buffed.

We will match finishes)

6000/6200/cut length

Lengths,Cutting,De-burring

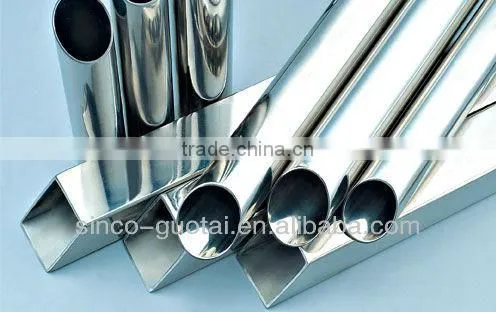

Special Shpes: Round,Square,Rectangle,custom,"T" "D",trilobal,flat oval,elliptical,etc

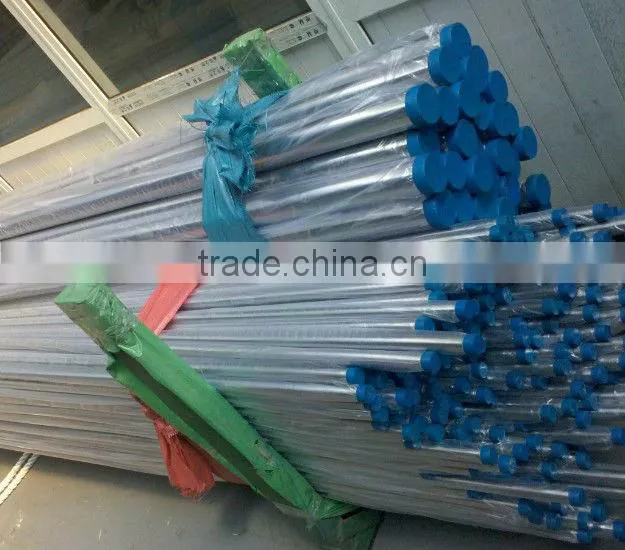

Standard & Safe Export Package

A: Each tube SLEEVED in a plastic bag, then put in cardbox with strips.(For Cut To Length Small Tubes)
B: Each tube SLEEVED in a plastic bag, then packed in bundles/steel crates.
C: Each tube SLEEVED in a plastic bag, then packed in cardboard tubes,both sides with end cap,lastly packed in steel crate.

Remarks:	1)Lenght(M): 6 (or cut-to-length)
	2)Payment:TT
	3)Price Terms: FOB Foshan/Shenzhen/HuangPu/HK(China Port); CIF/C&F
	4)Delivery :13-45days after deposite,balance before shippment.(based on QTY)
	5)OEM/Buyer Lable accepted.
	6)Mill test certification offered.
Special Remark	Channel/Flat Bar/Angle Bar/Round Bar/Fittings/Accessories enquiries are warmly welcomed.
