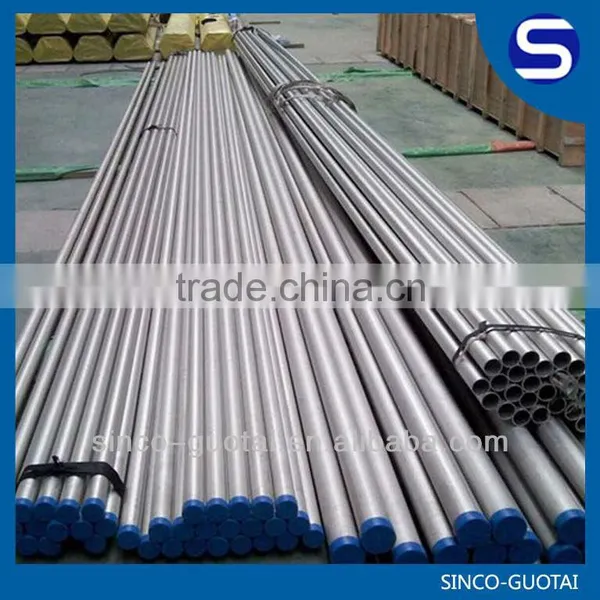

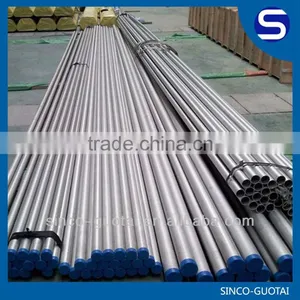

Duplex Stainless Steel Pipe

FOB Price

USD $10 - $10,000 / Piece

1000 Pieces(Min.Order)

Supply Ability 20000 Piece / Pieces per Month
Port SHANGHAI NINGBO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard	JIS, AISI, ASTM, GB, EN	Place of Origin	Zhejiang, China
Brand Name	SINCO	Model Number	304 316L
Type	Welded	Steel Grade	300 Series
Application	Food Dairy and so on	Certification	ISO
Welding Line Type	ERW	Thickness	1-60
Outer Diameter	6-800

Product Description

Specifications

Duplex Stainless Steel Pipe
1.Certification:ISO9001:2000
2.Cold-Drawn,cold rolling
3.High quality

Product Description

1.Certification:ISO9001:2000

2.Specification:OD32*T0.75*L145mm

3.Surface:good consistency

4.Application for Food, Dairy and so on.

Stainless steel sanitary tube /pipe

Stainless Steel Welded Pipe 1.Grade: 300series 2.Standards:ASTM A249,A554,A270 3.OD:16-219mm WT:0.8-4.0mm 4.Manufacture

Standard: JIS G3447 ASTM A270 ASME SA270

High Grade:304 304L 316 316L

KS D 3585 (JIS G 3447)						ASTM A 270
Out Diameter (mm)	Wall Thickness (mm)	Weight (kg/m)	Tolerance (mm)			Out Diameter (mm)	Tolerance (mm)
Out Diameter (mm)	Wall Thickness (mm)	Weight (kg/m)	Out Diameter	Wall Thickness	Length	Out Diameter (mm)	Out Diameter	Wall Thickness	Length
25.4	1.2	0.723	±0.15	±10%	+10 -0	25.4	+0.05 -0.20	±12.5%	+3.2 -0
31.8	1.2	0.915	±0.16			-	-
38.1	1.2	1.10	±0.19			38.1	+0.05 -0.20
50.8	1.5	1.97	±0.25			50.8	+0.05 -0.28
63.5	2.0	2.47	±0.25			63.5	+0.05 -0.28
76.3	2.0	3.69	±0.25			76.2	+0.08 -0.30
89.1	2.0	4.33	+0.30 -0.40			-	-
101.6	2.6	6.41	+0.35 -0.40			101.6	+0.08 -0.38

Lenght: 6000mm (as required)

Craft: Bright annealing,inside bead removed,inside&outside polish.

Usage: Milk and food industrial,medical(drug) manufacture profession,pure water industry,electronic engineering, fiber , paper making, beer brewing, high purified gas industry, cosmetic industry, etc...

Chemical Composition

Grade	Chemical Composition
Grade	C max	Si max	Mn max	P max	S max	Ni	Cr	Mo	Others
TP 304	0.08	0.75	2	0.04	0.03	8 - 11	18 - 20
TP 304L	0.035	0.75	2	0.04	0.03	8 - 13	18 – 20
TP 316	0.08	0.75	2	0.04	0.03	10 - 14	16 – 18	2 – 3
TP 316L	0.035	0.75	2	0.04	0.03	10 - 15	16 - 18	2 - 3

Mechanical Properties
Grade	Tensile Strength Mpa, (Min)	Yield Strength Mpa, (Min)	%Age Elongation in 50mm gauge length min	Hardness (Max)
Grade	Tensile Strength Mpa, (Min)	Yield Strength Mpa, (Min)	%Age Elongation in 50mm gauge length min	BHN	Rb
304	585	244	56	191	72
304L	585	210	56	191	72
316	615	245	57	197	75
316L	585	215	56	197	75

May be you will need other shape tube

SQUATR & RECTANGULAR TUBE SERIES

TUBE O.D. mm	TUBE WALL THICKNESS (mm)	FINISH	LENGTH (mm)
10 × 10 × -15 × 15	0.5-1.5	A)No-Polish B)240-600 Grit c)800#-1000# Super Mirror finish D)Titanium finish	6000/6200/cut length Special cut length available Lengths,Cutting,De-burring
16 × 16 × -25 × 25	0.5-1.5
30 × 30 × -35 × 35	0.7-2.5
50 × 50 × -80 × 80	1.0-4.0
90 × 90 × -150 × 150	1.0-4.0

20 × 10-30 × 15	0.5-1.5
38 × 25-40 ×6 0	0.6-2.5
75 × 45-120 × 60	1.0-4.0
120 × 60 above	1.5-4.0

HALF ROUND TUBE (D-TUBE)

TUBE O.D. mm

TUBE WALL THICKNESS

(mm)

FINISH

LENGTH (mm)

62.7 × 32.4

1.5-2.0

Mill

Polished

(All standard brushed to buffed.

We will match finishes)

6000/6200/cut length

Lengths,Cutting,De-burring

Special Shpes: Round,Square,Rectangle,custom,"T" "D",trilobal,flat oval,elliptical,etc

Standard & Safe Export Package

A: Each tube SLEEVED in a plastic bag, then put in cardbox with strips.(For Cut To Length Small Tubes)
B: Each tube SLEEVED in a plastic bag, then packed in bundles/steel crates.
C: Each tube SLEEVED in a plastic bag, then packed in cardboard tubes,both sides with end cap,lastly packed in steel crate.

Remarks:	1)Lenght(M): 6 (or cut-to-length)
	2)Payment:TT
	3)Price Terms: FOB Foshan/Shenzhen/HuangPu/HK(China Port); CIF/C&F
	4)Delivery :13-45days after deposite,balance before shippment.(based on QTY)
	5)OEM/Buyer Lable accepted.
	6)Mill test certification offered.
Special Remark	Channel/Flat Bar/Angle Bar/Round Bar/Fittings/Accessories enquiries are warmly welcomed.
