Coal dryer for coal powder
Rotary dryer is a type of industrial dryer employed to reduce or minimize the liquid moisture content of the material, it is handled by
bringing it into direct contact with a heated gas.
Coal dryer structure:
Coal dryer consists of heat source, beater device, belt loading machine, feeding machine, rotary roller, belt discharger, draft fan, discharger, and switch board.
Coal dryer technical parameter:
|
Model(D*L)(mm) |
HZG800*8000 |
HZG1000*10000 |
HZG1200*12000 |
HZG1500*15000 |
|
Volume |
4-5m³ |
7.82m³ |
13.75 m³ |
24.9 m³ |
|
Rotate speed |
4-9r/min |
3-7 r/min |
3-7 r/min |
3-7 r/min |
Tilt |
3-5° |
3-5° |
3-5° |
3-5° |
Motor model |
Y132M2-6 |
Y132M2-6 |
Y160M-6 |
Y180L-6 |
Power |
3kw |
4 kw |
7.5kw |
15kw |
Reducer model |
JZQ 350 |
JZQ 400 |
JZQ 500 |
JZQ650 |
Weight |
2.2t |
7.5t |
10.3t |
18.33t |

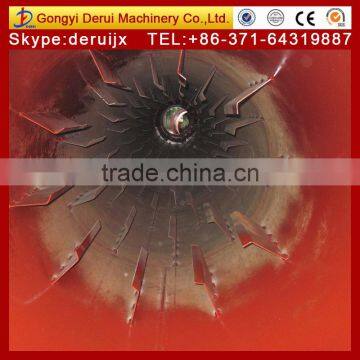

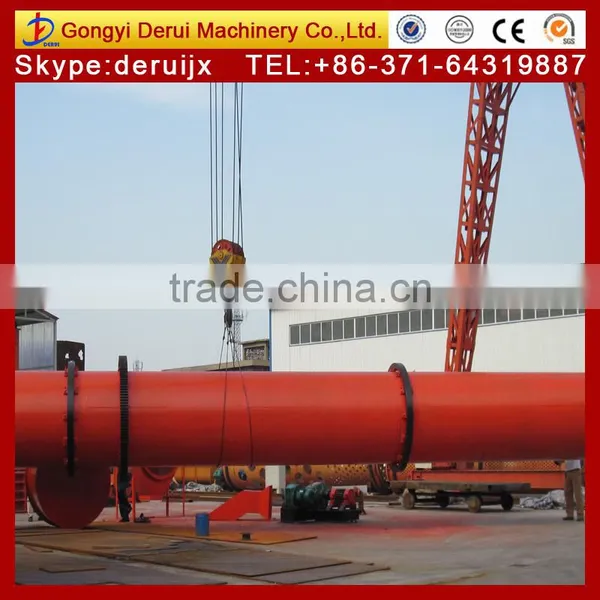

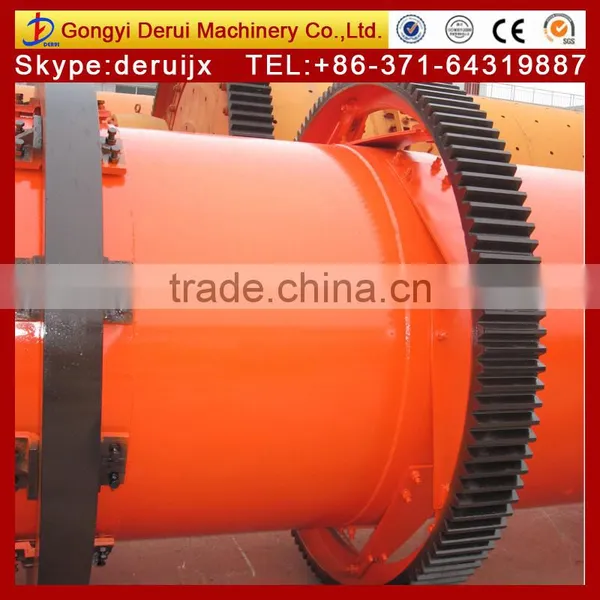

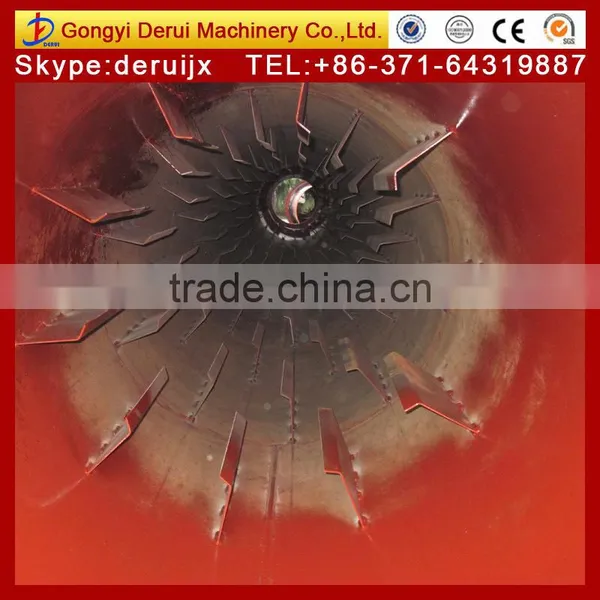

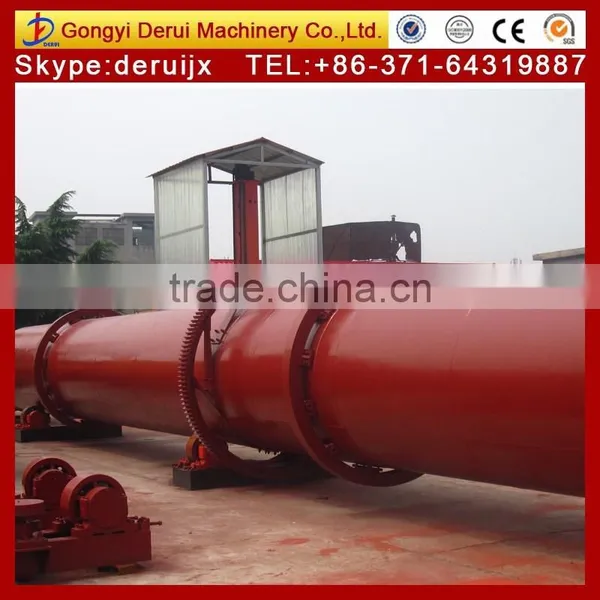

Detailed picture of coal dryer:
You can choose a suitable one according to raw materials to be dried.
The Coal dryer working principle:
Due to the stickiness of the coal slurry, it can be divided into several working areas.
First, guide area where the wet coal slurry meets the hyperthermia hot air and its moisture evaporates fast. As the material is stirred by the shoveling plate of the big lead angle, the bonding can not be formed and was sent to another working area.
Second, cleaning area where the wet coal slurry is raised by the shoveling plate and become the material curtain type. So as the material drops down, it is likely to be bound with the rotary drum wall which can be cleaned by the cleaning device reasonable. In this process, the cleaning device can break the clotting which increases the heat exchange area thus improves the drying speed.
Third, slant flitch area where is wet slurry is in the state of low moisture and loose condition. The material here won't bond. After the heat exchange the material meet the moisture condition demand, and then goes to the last area-discharging area. There is no shoveling plate here. The material rolls and slides to the dumping mouth and the whole drying process are finished.
Coal dryer application:
Coal dryer can dry coal slurry, raw coal, flotation cleaned coal, mixed clean coal, etc.
For coal industry, drying of blast furnace slag, clay, limestone, sand, quartz stone, etc.
For building industry, drying of metal ore concentrate, waste residue, tails, etc.
Coal rotary dryer heat source: firewood, coal, heat gas electricity, etc.

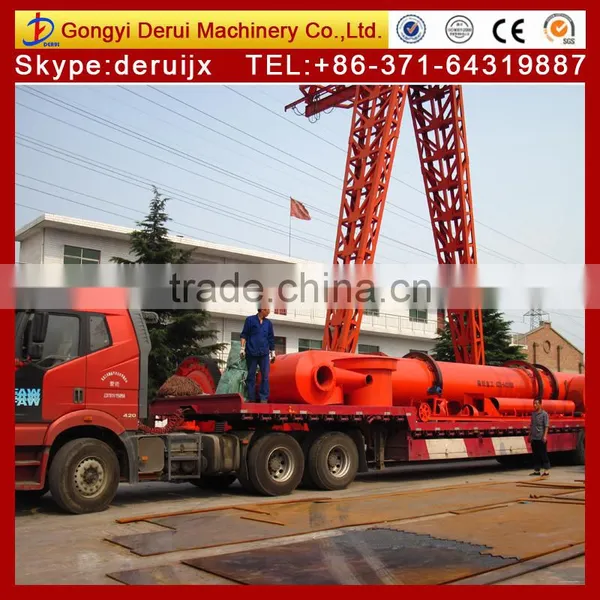

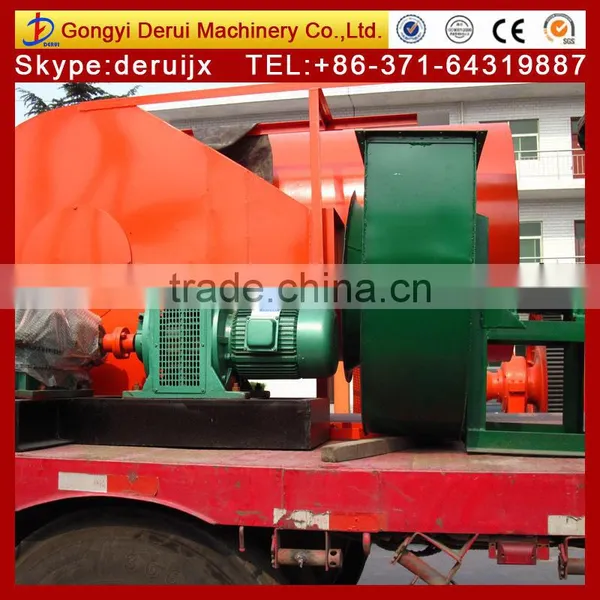

Coal dryer shipping:
Derui service:
Installation and guidance
When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client’s factory. Allowance is about 70USD per day.
Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
Warranty: one year (not include man-made damaged).
In order to help you to recommend suitable coal dryer, can you tell me the following information in your inquiry?
1. What is the material you want to dry?
2. What is the moisture of the feed materials?
3. What is the final moisture you want to get?
4.What is the hear source?(firewood, coal, heat gas or electricity)
4. What is the production capacity per hour or per day?
Derui machinery Co.,Ltd is located in Zhengzhou,Henan province, China(Mainland).Our main product include following:
Rotary kiln equipment: cement rotary kiln, lime rotary kiln, bauxite rotary kiln, rotary kiln, etc.
Dryer equipment: Rotary dryer, silica sand rotary dryer, sawdust dryer, mineral rotary dryer, slag rotary dryer, coal dryer, etc.
Stone crusher series: jaw crusher, impact crusher, cone crusher, etc.
Beneficiation equipment series : gold flotation machine, spiral classifier, rotary dryer, etc.
Grinding mill series: ball mill, raymond mill, rod ball mill, etc.
Feeding and screening equipment series: vibrating screen, vibrating feeder, etc.
Accessory equipment: belt conveyor, bucket elevator, screw conveyor, coal powder spraying machine, etc.
How to visit us ?
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
