kaolinite calcining kiln
Kaolin introduction:
Kaolin is a naturally occurring clay-rich material that has played an important role in shaping Earth history and
human culture. Geologically, kaolin is simply the name for a rock dominated by kaolin-group minerals.
Introduction of kaolinite calcining kiln:
kaolinite calcining kiln is the main equipment for calcining kaolin clay, kaolinite,china clay, etc.
kaolinite calcining kiln consists of cylindrical shell, supporting device, supporting device of thrust roller, driving unit, moveable kiln head, sealing device on the tail of kiln, coal dust pipe device, etc.
kaolinite calcining kiln production line:
Kaolin clay------Jaw crusher------Conveyor------Fine crusher------Conveyor------Vibrating screen------Bucket elevator------Silo------Rotary kiln------Cooling------conveyor
kaolinite calcining kiln technical parameter:
| Model(m) | Diameter (m) | Length(m) | Slope(%) | Capacity(t/h) | Rotate Speed (r/min) | Motor Power(kw) | Weight(T) |
| φ1.4×33 | 1.4 | 33 | 3 | 0.9-1.3 | 0.39-3.96 | 18.5 | 47.5 |
| φ1.6×33 | 1.6 | 33 | 4 | 1.2-1.9 | 0.26-2.63 | 22 | 50 |
| φ1.6×36 | 1.6 | 36 | 4 | 1.2-1.9 | 0.26-2.63 | 22 | 52 |
| φ1.8×32 | 1.8 | 32 | 4 | 1.9-2.4 | 0.16-1.62 | 30 | 78.2 |
| φ1.8×45 | 1.8 | 45 | 4 | 2.8-3.34 | 0.21-2.11 | 30 | 95.2 |
| φ1.9×36 | 1.9 | 36 | 3.5 | 1.2-1.7 | 0.29-2.93 | 30 | 86.3 |
| φ1.9×45 | 1.9 | 45 | 3.5 | 1.65-2.5 | 0.29-2.93 | 37 | 109 |
| φ2.2×48 | 2.2 | 48 | 3 | 1.9-2.1 | 0.98-2.93 | 55 | 141 |
| φ2.5×40 | 2.5 | 40 | 3.5 | 6.0-7 | 0.44-2.44 | 55 | 139.61 |
| φ2.5×50 | 2.5 | 50 | 3.5 | 7.0-8.0 | 0.48-1.44 | 55 | 179.6 |
| φ2.5×54 | 2.5 | 54 | 3.5 | 8.0-8.6 | 0.48-1.44 | 55 | 196.29 |
| φ2.7×42 | 2.7 | 42 | 3.5 | 10.0-11.0 | 0.10-1.52 | 55 | 198.5 |
| φ2.8×44 | 2.8 | 44 | 3.5 | 11-12.5 | 0.80-2.39 | 55 | 198.6 |
| φ3.0×45 | 3 | 45 | 3.5 | 13.3-16.9 | 0.5-1.35 | 55 | 223 |
| φ3.2×52 | 3.2 | 52 | 3.5 | 16-18.5 | 0.48-2.44 | 110 | 278 |

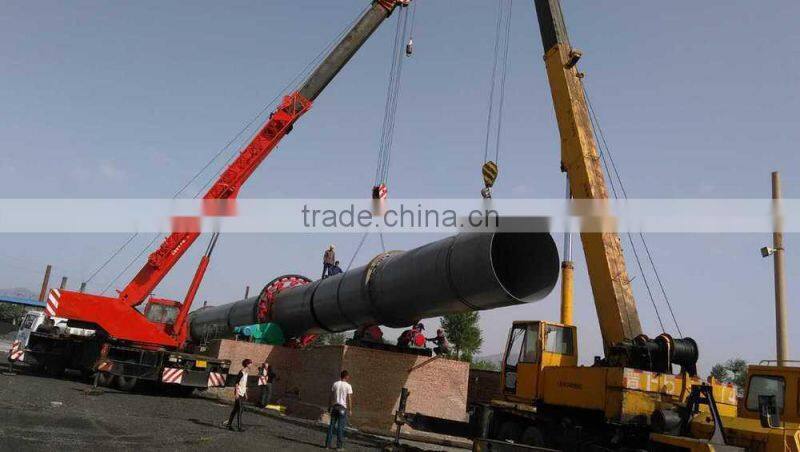

The working site of kaolinite calcining kiln:

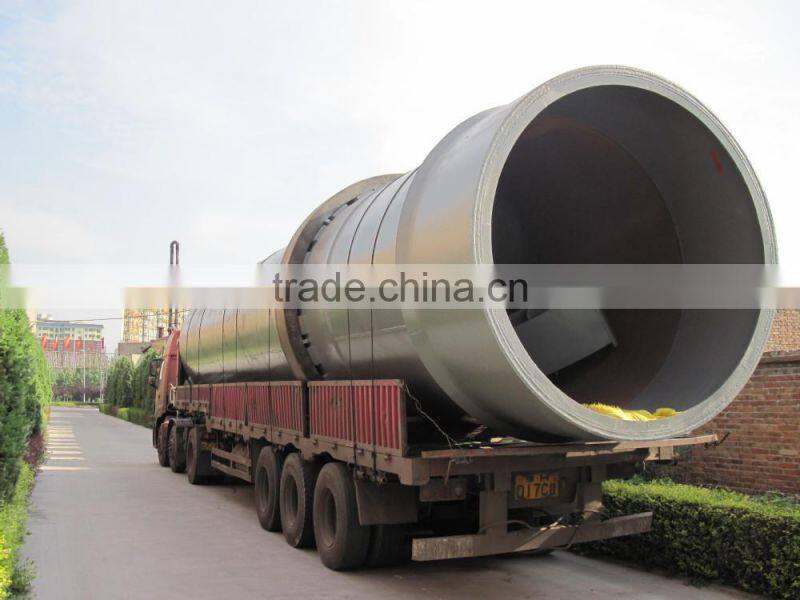

kaolinite calcining kiln shipping:
Derui Introduction:
Gongyi Derui Machinery Co., Ltd is located in Zhengzhou, Henan, China(mainland).Our main product include: rotary kiln, stone crusher, ball mill, mineral ore dressing equipment, dryer plant, grinding equipment, etc.
Rotary kiln equipment include:Active lime rotary kiln, ceramsite sand rotary kiln, kaolinite calcining kiln, cement rotary kiln, iron ore rotary kiln, Magnesite rotary kiln, etc.
How to visit us ?
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
