Silica Sand Production Machine of Silica Sand Dryer for Sand Drying

Silica Sand Production Machine of Silica Sand Dryer for Sand Drying thumbnail-1
Silica Sand Production Machine of Silica Sand Dryer for Sand Drying thumbnail-2
Silica Sand Production Machine of Silica Sand Dryer for Sand Drying thumbnail-3
Silica Sand Production Machine of Silica Sand Dryer for Sand Drying thumbnail-4
Silica Sand Production Machine of Silica Sand Dryer for Sand Drying thumbnail-5
Silica Sand Production Machine of Silica Sand Dryer for Sand Drying thumbnail-6
Silica Sand Production Machine of Silica Sand Dryer for Sand Drying photo-1
Silica Sand Production Machine of Silica Sand Dryer for Sand Drying photo-2
Silica Sand Production Machine of Silica Sand Dryer for Sand Drying photo-3
Silica Sand Production Machine of Silica Sand Dryer for Sand Drying photo-4
Silica Sand Production Machine of Silica Sand Dryer for Sand Drying photo-5
Silica Sand Production Machine of Silica Sand Dryer for Sand Drying photo-6
US$ 13,000 - 200,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drying Equipment
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Gongyi Derui Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Tianjin Lianyungang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drying Equipment
Place of Origin Henan, China
Brand Name Derui
Model Number HZG1200*10
Voltage 220v/380v
Power(W) 7.5kw
Dimension(L*W*H) 1.2*10m
Weight 9.25t
Certification ISO
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Silica sand production machine of silica sand dryer for sand drying

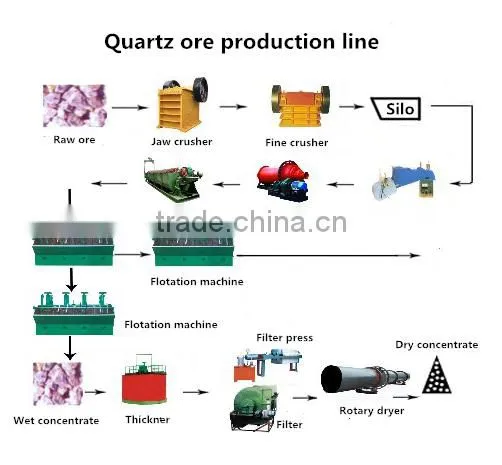

Sand production line:

Sand making machine------sand washing machine------sand dryer-------vibrating screen

Introduction of silica sand dryer:

silica sand dryer is a machine that is able to process large quantities of materials and the advantages include reliable operation, elastic running principle, strong adaptability and big processing capacity. Sand dryer is generally suitable for drying granular materials and has good drying effect especially when drying sand, river sand and quartz sand in building material, chemistry and casting industry.

Silica sand production machine of silica sand dryer for sand drying

Silica sand production machine of silica sand dryer for sand dryingSilica sand production machine of silica sand dryer for sand drying

Silica sand production machine of silica sand dryer for sand drying

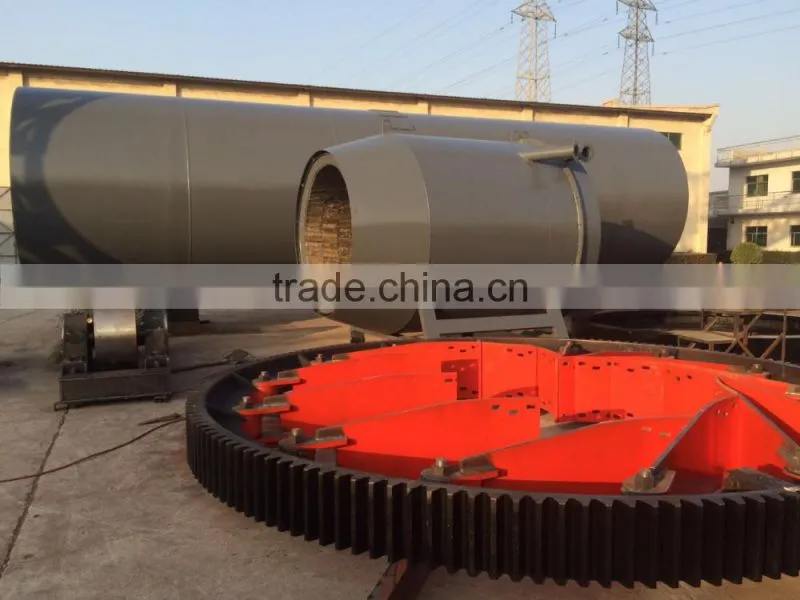

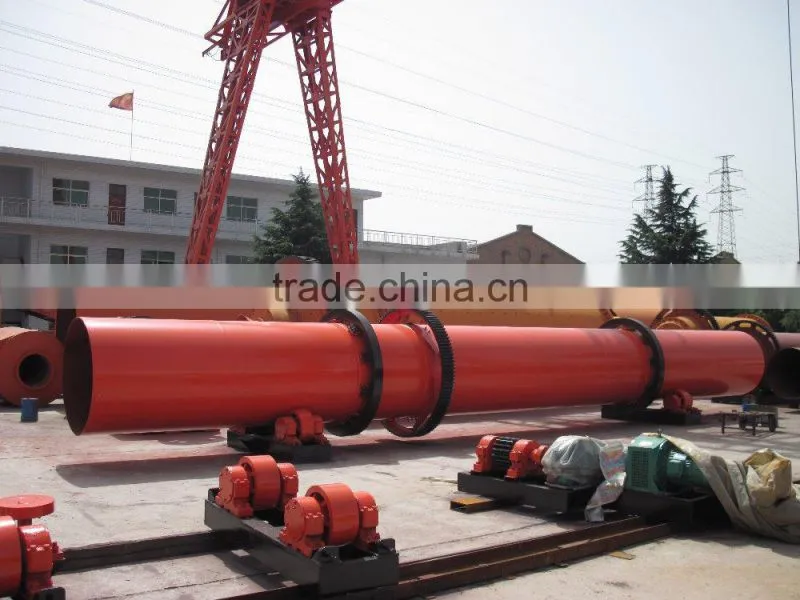

silica sand dryer structure:
1.Cylinder  2.Front rolling ring  3.Back rolling ring  4.gear  5.Roller  6.drag roll  7.small gear  8.discharging part  9.lifting board  10.Reducer  11.motor  12.hot wind tube  13.feeding chute  14.Furnace body


Silica sand production machine of silica sand dryer for sand drying

Note: According to user need to design coal gas generator, burner or elevator, belt conveyor, quantitative feeder, cyclone dust collector,

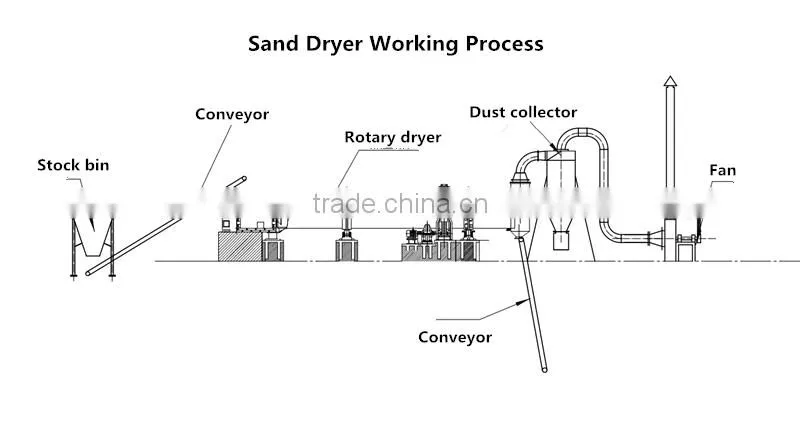

silica sand dryer drying Process:



Belt conveyor------ Hot blast pipe------Rotary dryer----Discharging box-------Dust collector------Belt conveyor------Air blower------pool

Silica sand production machine of silica sand dryer for sand drying

 Silica Sand dryer technical parameter:





Model(D*L)(mm)



HZG800*8000



HZG1000*10000



HZG1200*12000



HZG1500*15000



Volume



4-5m³



7.82m³



13.75 m³



24.9 m³



Rotate speed



4-9r/min



3-7 r/min



3-7 r/min



3-7 r/min

Tilt

3-5°

3-5°

3-5°

3-5°

Motor model

Y132M2-6

Y132M2-6

Y160M-6

Y180L-6

Power

3kw

4 kw

7.5kw

15kw

Reducer model

JZQ 350

JZQ 400

JZQ 500

JZQ650

Weight

2.2t

7.5t

10.3t

18.33t



Heating source of silica sand dryer:

You can use coal, natural gas, electricity, oil, biomasss, LPG and wind power to heat the dryer machine.

Silica sand production machine of silica sand dryer for sand drying



Materials that can be dried by silica sand dryer:

Applications:sand dryer used for drying silica sand, mortar, cement slag, clay, coal gangue,fly ash, gypsum, iron, limestone and other raw materials, widely used in building materials, chemical, foundry and other industries .
Brief Description: Mainly used for fly ash, slag, sand, coal, iron, ore, blue carbon and other materials drying.



Silica sand production machine of silica sand dryer for sand drying

Silica sand dryer shipping:

Silica sand production machine of silica sand dryer for sand drying



Silica sand production machine of silica sand dryer for sand dryingSilica sand production machine of silica sand dryer for sand drying

In order to help you to recommend suitable silica sand dryer, can you tell me the following information in your inquiry?



1. What is the material you want to dry?



2. What is the moisture of the feed materials?



3. What is the final moisture you want to get?



4.What is the hear source?(firewood, coal, heat gas or electricity)



4. What is the production capacity per hour or per day?



Our main drying equipment machinery:Sand dryer, manure dryer, coal dryer, gypsum dryer, etc.

Silica sand production machine of silica sand dryer for sand drying



How to visit us ?



If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)



Our air port name is : Zhengzhou Xinzheng International air port.



Train station name is: Zhengzhou (Zhengzhou north) train station

Silica sand production machine of silica sand dryer for sand drying





If you have anything unclear, please let me know, i will reply you in 24 hours!
