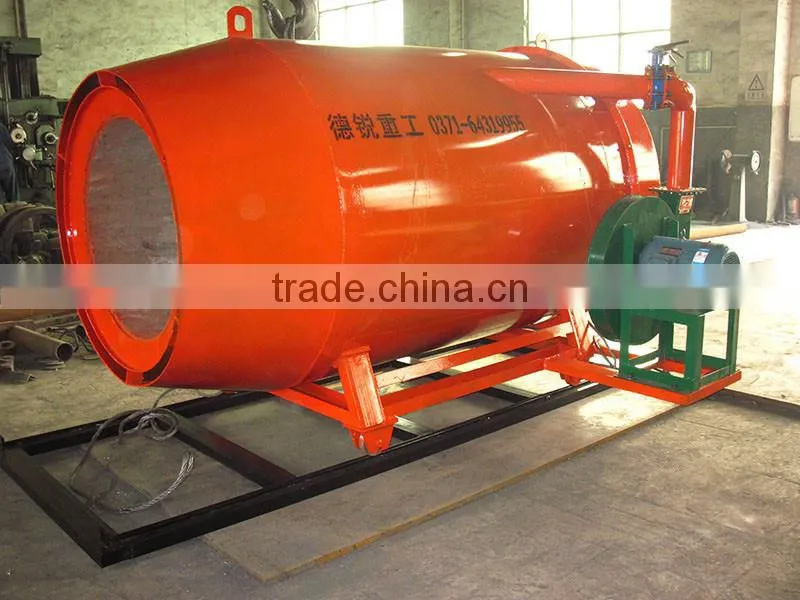

Coal dust burner for power plant

Coal dust burner for power plant

Coal dust burner is widely used for industrial boiler (such as heating, annealing, tempering), heating boiler, conduction oil boiler (drying, vaporing) and other kinds boilers. It can be used instead of fuel oil, gas, and electrical heat energy equipment, which can save 50% energy.

Coal dust burner characteristics:

Thick lining panel: coal pulverizer, the inner shell lining is with thick chrome steel plates. So it is very durable.

High wear-resistant hammer for crushing.

Small particle size: after crushed,the particle size is smaller, when burning it will be more sufficiently and more environmental(less smoke). The particle size is about 160-200 mesh.

High production capacity. coal pulverizer is with reasonable design, 10% higher than similar products in production.

Combustion. Our machine has double oxygen input, it can improve efficiency and burn sufficiently.

Rapid deceleration integration: reduction gear and spindle are designed in same group, to save electricity.

Coal dust burner working principle:

In the worksite, a coal dust burner works with the coal pulverizer and coal hopper usually. The coal in the hopper is conveyed to the coal pulverizer by screw conveyor. The coal pulverizer will crush the coal into pulverized coal. In the coal burner, the pulverized coal mixes with air (High-speed air flow is generated by the draft fan on the coal dust burner), and is ignited by the oil burning igniter.

Mark of coal: bituminous coal;
Gross calorific value: ≥5000kcal/kg (≥ 20000kJ/kg);
Net calorific value: ≥4200kcal/kg;
Volatile matter: ≥25%;
Ash Content: ≤10%;
Total moisture: ≤35%;
Inherent moisture: ≤14%;
Total sulphur: ≤1%;
Particle size: ≤20mm.
Note: These indexes are the lowest requirements for the coal, the better coal will be better at practice.

Coal dust burner technical parameter:

Coal dust burner application:
Pulverized coal dust burners have a wide range of uses in industrial production and daily life, such as providing heat for boilers, hot mix asphalt plant, cement kiln, metal furnace, annealing, quenching furnace, precision casting shell burning furnace, melting furnace, forging furnace and other heating furnace or kiln.

Coal dust burner shipping:
