1TPH asphalt plant burner for asphalt mixing plant

1TPH asphalt plant burner for asphalt mixing plant

Asphalt plant burner is widely used for industrial boiler (such as heating, annealing, tempering), heating boiler, conduction oil boiler (drying, vaporing) and other kinds boilers. It can be used instead of fuel oil, gas, and electrical heat energy equipment, which can save 50% energy.

Asphalt plant burner characteristics:

Thick lining panel: Coal fired burner, the inner shell lining is with thick chrome steel plates. So it is very durable.

High wear-resistant hammer for crushing.

Small particle size: after crushed,the particle size is smaller, when burning it will be more sufficiently and more environmental(less smoke). The particle size is about 160-200 mesh.

High production capacity.  Coal fired burner is with reasonable design, 10% higher than similar products in production.

Combustion. Our machine has double oxygen input, it can improve efficiency and burn sufficiently.

Rapid deceleration integration: reduction gear and spindle are designed in same group, to save electricity.

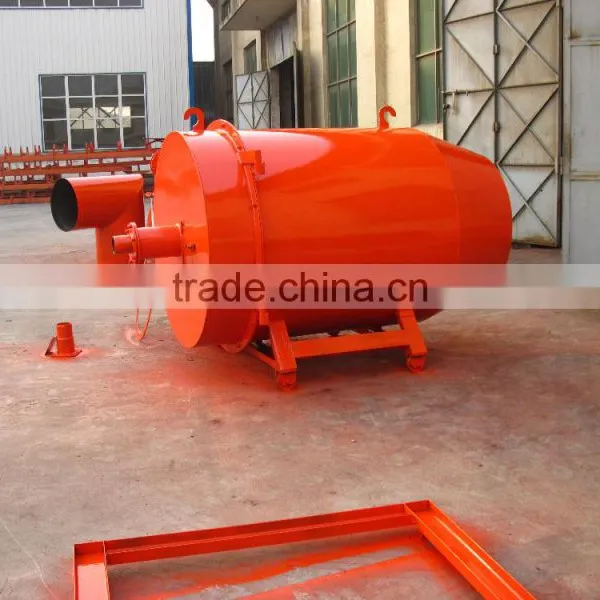

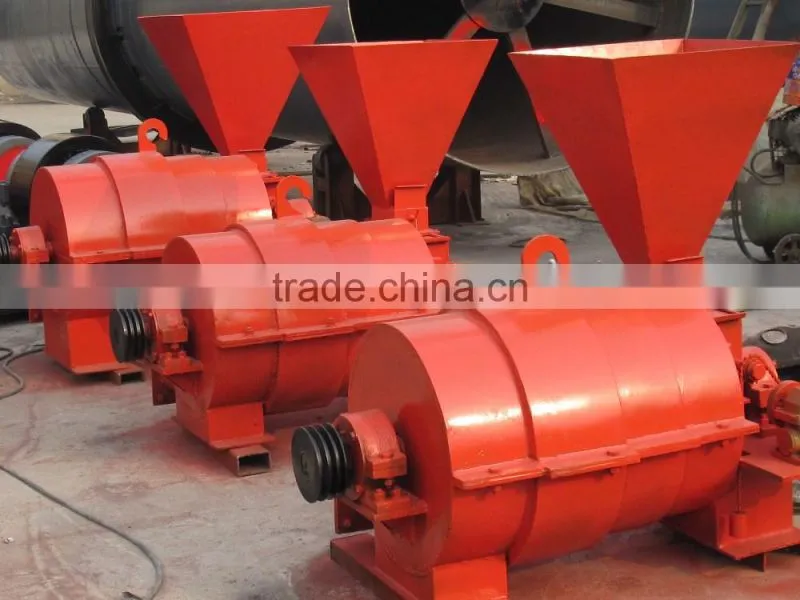

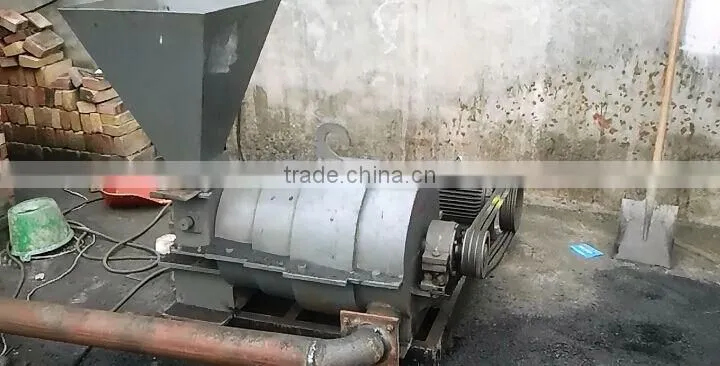

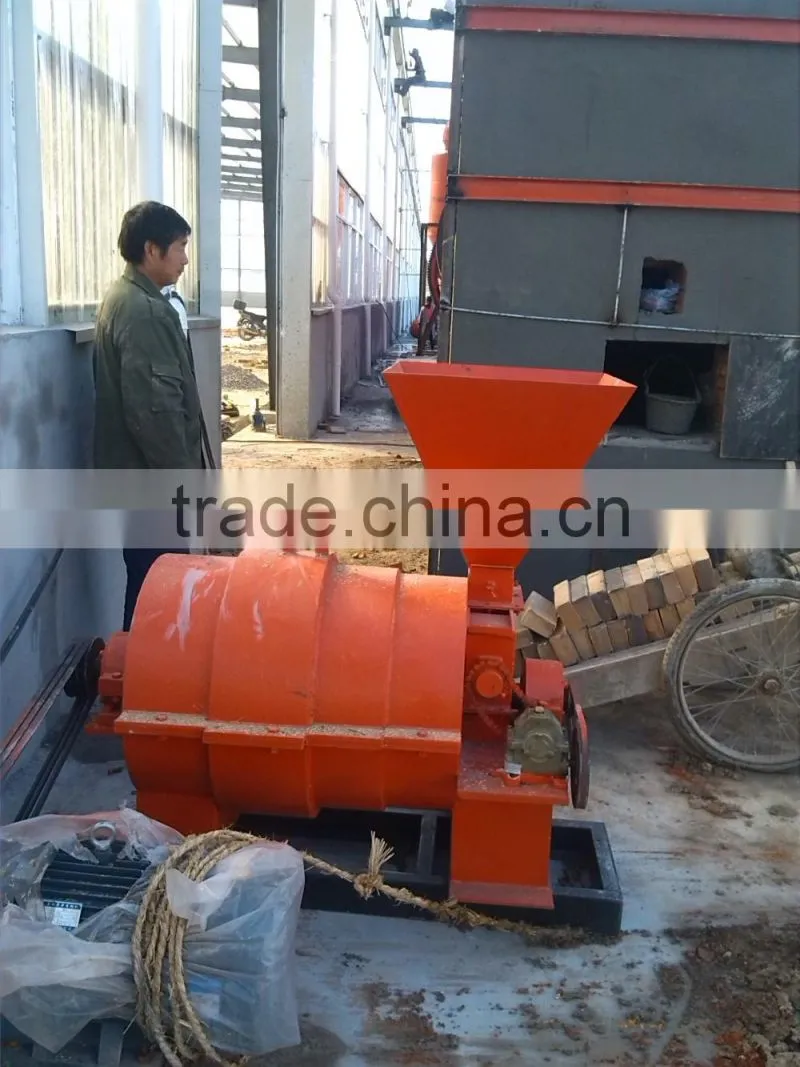

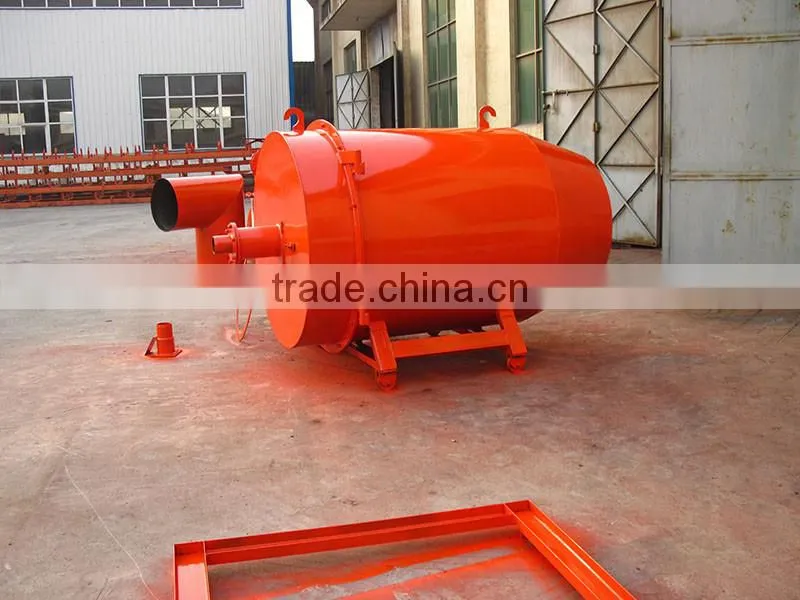

Full set coal fired burner include pulverized coal machine, coal fired burner, electric control cabinet, ignition system and rubber

pipeline.

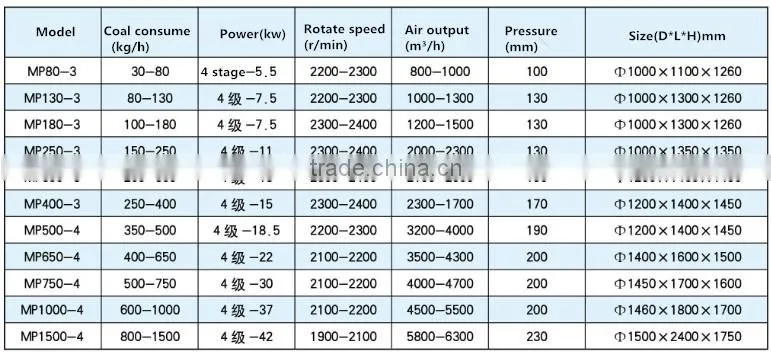

Coal fired burner technical parameter:

Coal index for coal fired burner :

(1) Coal type: bituminous coal

(2) Calorific value: 5000Kcal /KG

(3) Volatile matter: ≥28%

(4) Water content: 8%

Asphalt plant burner working principle:

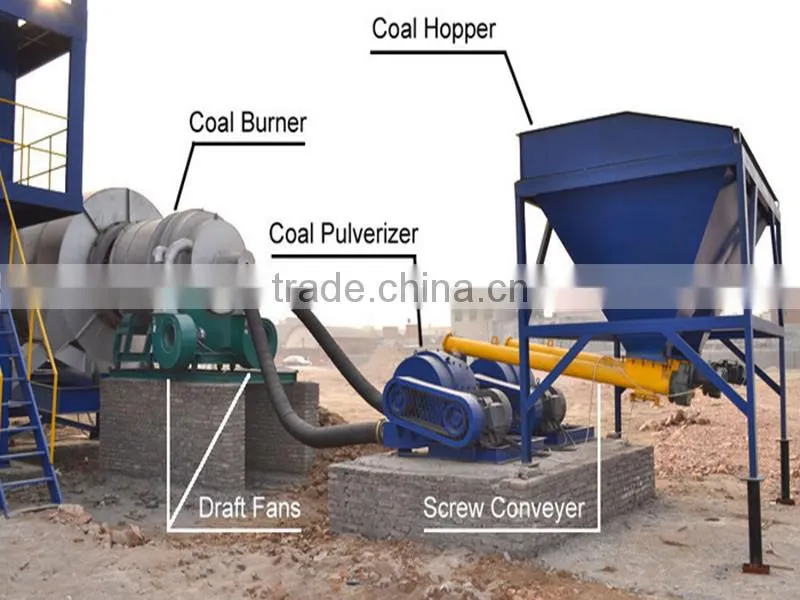

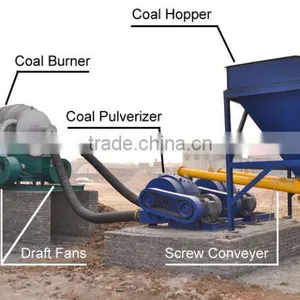

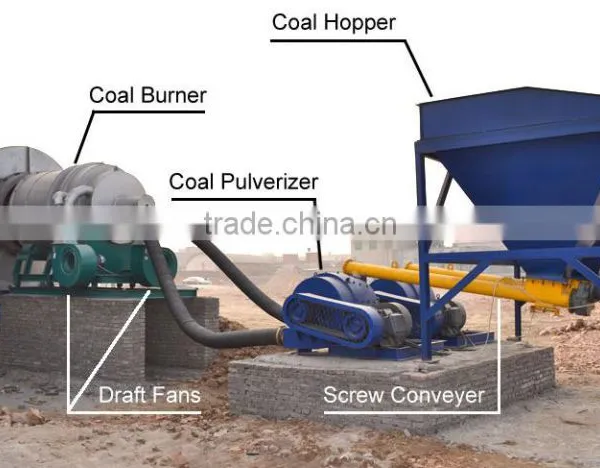

In the worksite, a coal fired burner works with the coal pulverizer and coal hopper usually. The coal in the hopper is conveyed to the coal pulverizer by screw conveyor. The coal pulverizer will crush the coal into pulverized coal. In the coal burner, the pulverized coal mixes with air (High-speed air flow is generated by the draft fan on the coal burner), and is ignited by the oil burning igniter.

There are mainly two ways to ignite the coal burner. Manual way and automatic way, no matter which way it adopts, the coal burner often needs fuel(oil, gas, etc) as the combustion medium. The difference is that the high-energy ignition devices which generate sparks replace people's hands.

Asphalt plant burner application:

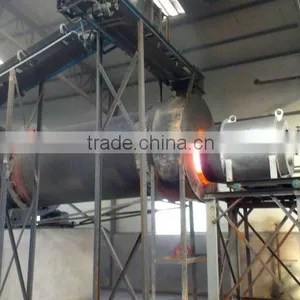

Asphalt plant burner have a wide range of uses in industrial production and daily life, such as providing heat for boilers, hot mix asphalt plant, cement kiln, metal furnace, annealing, quenching furnace, precision casting shell burning furnace, melting furnace, forging furnace and other heating furnace or kiln.
