HAG Coal combustor manufacturer
- 20 Set / Sets per Month
- Qingdao Tianjin Shanghai Lianyungang
- T/T Credit Card
Product Details
Condition: | New | Type: | Other, pulverized coal burner | Motor Type: | AC Motor |
Power(W): | 7.5-11kw-4 | Capacity(t/h): | 350kg/h | Place of Origin: | Henan, China |
Brand Name: | Derui | Model Number: | MP300 | Dimension(L*W*H): | 1.2*1.4*1.45m |
Weight: | customized | Certification: | ISO | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

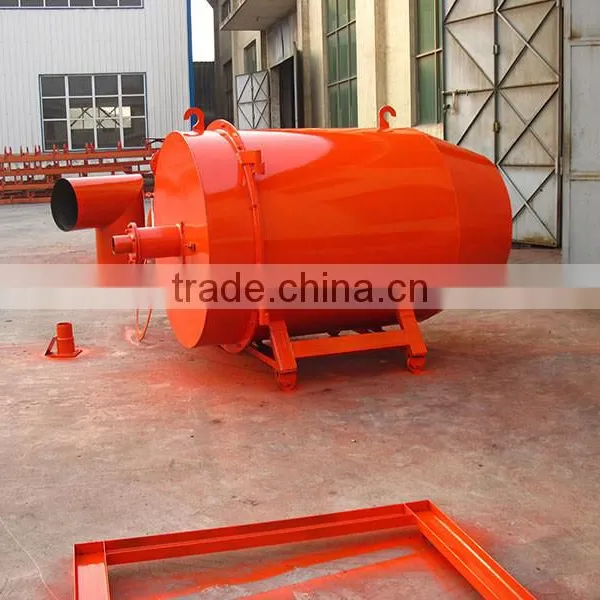

HAG Coal combustor manufacturer
Coal combustor is widely used for industrial boiler (such as heating, annealing, tempering), heating boiler, conduction oil boiler (drying, vaporing) and other kinds boilers. It can be used instead of fuel oil, gas, and electrical heat energy equipment, which can save 50% energy.
Coal combustor (or pulverized coal burner) is a mechanical device that burns pulverized coal into a flame in a controlled manner.
Coal pulverizer Coal combustor
Coal combustor structure:
Coal combustor is mainly composed of pulverized coal machine, host of combustion machine(including combustion chamber, automatic back and forth motion system, automatic rotation system, the combustion air supply system) control system, ignition system, the crater and others.
Coal combustor technical parameter:
Model | Output | Spout Pressure | Air volume | Coal powder size (mm) | Revolution | Motor |
MP-300 | 350 | 150 | 1800 | 0.05 | 2200 | 11kw-4stages |
MP-500 | 600 | 150 | 2000 | 0.05 | 2400 | 15kw-4stages |
MP-600 | 700 | 150 | 2500 | 0.05 | 2400 | 18.5kw-4stages |
MP-1000 | 1000 | 150 | 3000 | 0.05 | 2400 | 22kw-4stages |
Coal combustor structure and working principle:
Coal combustor is consist of feeder, grinding chamber, fan chamber and separator.
Grinding chamber is consist of crushing body, main shaft, coal hammer and lining board.
Fan chamber, installed fixed fan on shaft, spraying coal powder to burner.
At the bottom of separator, connect with machine body, at the top, coal powder conveyor connect with pipe,
In the cutting edge of separator welded with big size coal powder backflow pipe connect with material entrance, big size coal back to grinding chamber for grinding again.
Coal combustor working principle:

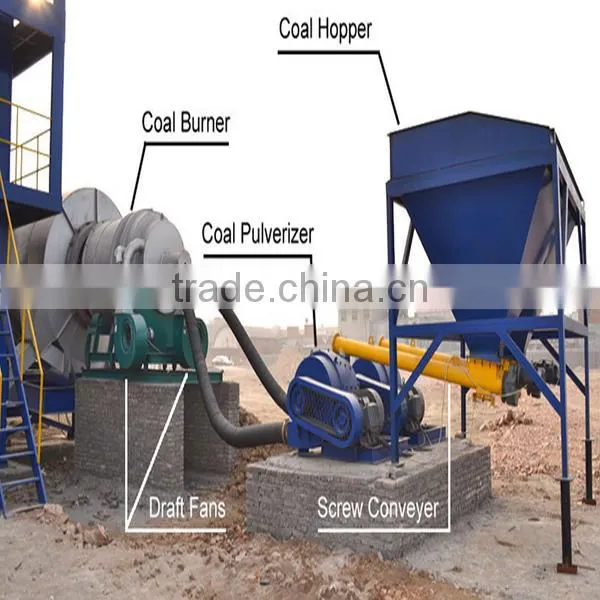

In the worksite, a Coal combustor works with the coal pulverizer and coal hopper usually. The coal in the hopper is conveyed to the Coal combustor by screw conveyor. The coal pulverizer will crush the coal into pulverized coal. In the coal burner, the pulverized coal mixes with air (High-speed air flow is generated by the draft fan on the coal burner), and is ignited by the oil burning igniter.
There are mainly two ways to ignite the Coal combustor. Manual way and automatic way, no matter which way it adopts, theCoal combustor often needs fuel(oil, gas, etc) as the combustion medium. The difference is that the high-energy ignition devices which generate sparks replace people's hands.
Coal combustor application:
Coal combustor have a wide range of uses in industrial production and daily life, such as providing heat for boilers, hot mix asphalt plant, cement kiln, metal furnace, annealing, quenching furnace, precision casting shell burning furnace, melting furnace, forging furnace and other heating furnace or kiln.
Mark of coal: bituminous coal;
Gross calorific value: ≥5000kcal/kg (≥ 20000kJ/kg);
Net calorific value: ≥4200kcal/kg;
Volatile matter: ≥25%;
Ash Content: ≤10%;
Total moisture: ≤35%;
Inherent moisture: ≤14%;
Total sulphur: ≤1%;
Particle size: ≤20mm.
Note: These indexes are the lowest requirements for the coal, the better coal will be
better at practice.
Coal combustor shipping:
Derui services:
Payment: By TT,30% upon order confirmed, 70% upon shipment.
Delivery: After we got your prepayment, we can arrange the production, it need take 6(six) working days.Second, it will need 4(four)
days for the inland transportation to china Port. third, it will need 2(two) days for complete the china customs clearance.
Warranty: one year. If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it
free-of-cost. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).
