Iron ore and copper ore production line of ore processing equipment

Iron ore and copper ore production line of ore processing equipment

Iron ore production line:

Raw ore------vibrating feeder------jaw crusher------fine crusher------silo------electro-vibrating feeder------ball mill------screw classifier------magnetic separator------wet concentrate

 1.Large raw iron ore for primary crushing are fed into the jaw crusher by Plate feeder and are reduced to 8 inches or smaller. After first crushing, the material will transferred to cone crusher by belt conveyor for secondary crushing; the crushed iron ore stone will then transferred to vibrating screen for classifying. After classifying, the parts whose size below the mesh size will be transferred away as final products, while the other parts will return to cone crusher, thus forming a closed circuit. Size of final products can be combined and graded according to your specific requirement.


2.The smaller crushed iron ore is fed to ball mill for grinding. Inside the ball mill, the crushed iron ore will grind the ore to about 0.2 mm with 3-inch steel balls.


3.This iron ore slurry is pumped to the agitation tank. This iron ore slurry is finally pumped to the flotation cell with the fine sulfide ore (~-0.074 mm) going to froth flotation cells for recovery of iron.

Ore processing equipment production line:

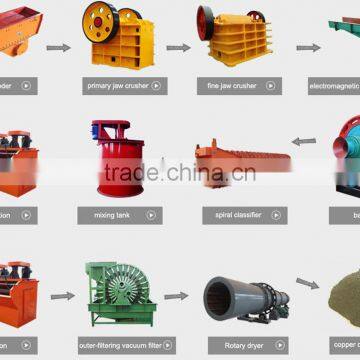

Primary crushing(Jaw crusher)------secondary crushing(fine jaw crusher)------screening(vibrating screen)------third crushing(fine jaw crushing)------grinding mill(ball mill)------Classifying(spiral classifier or high frequency vibrating screen)------ore separating(flotation machinery, magnetic separator, shaking table)-------concentrator------Drying equipment(rotary dryer)

Ore processing equipment introduction:

Materials: Copper, zinc, nickel, gold and other nonferrous metals, coarse and fine separation of nonmetals like coal, fluorite and talc. Main Equipment :Jaw crusher, hammer crusher, ball mill, classifier, magnetic separator, flotation cell, concentrator, dryer, etc.

Ore beneficiation line or ore processing plant is consists of jaw crusher, hammer crusher, ball mill, classifier, flotation machine, concentrator, dryer mine feeder, hoist and conveyor.

It has unique features such as high efficiency, low energy consumption and large capacity.

 Ore processing equipment classification:

Ore processing equipment can be divided into iron ore processing plant, copper ore processing plant, gold ore concentration plant, silver ore beneficiation plant, nickel ore processing plant, tin ore beneficiation plant, lead ore beneficiation plant, manganese ore beneficiation plant, zinc ore beneficiation plant, titanium ore beneficiation plant, tungsten ore beneficiation plant, etc.

 Ore processing equipment procedure:

1.Primary crushing (Jaw crusher): coarse crushing raw material

2. Secondary crushing & Third crushing (Fine jaw crusher): fine crushing the material which came out from primary or secondary crusher

3.Grinding mill (Ball mill ): for grinding crushed raw material to specific size powder

4.Classifying ( Spiral classifier): classifying the granule. The bigger granule will be send back to ball mill, and the suitable granule was sent to next step.

5.Iron removing separator (Magnetic separator): separating fine material from grinded raw material, this product is mainly used for removing iron or selecting iron from material.

6.Chemical separating (Flotation machine): separating fine material from grinded material. This product is used for selecting specific ore by using chemicals from raw material, such as gold, silver, copper, lead, zinc etc.

7.Drying equipment(Rotary dryer):drying material to dry powder
