Graphite ore processing equipment of flotation machine

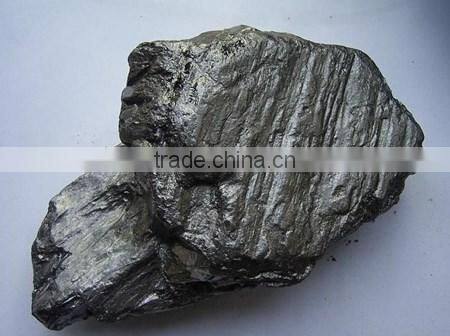

Graphite,archaically referred to as Plumbago, is a crystalline form of carbon, a semimetal, a native element mineral, and one of the allotropes of carbon. Graphite is the most stable form of carbon under standard conditions. Therefore, it is used in thermochemistry as the standard state for defining the heat of formation of carbon compounds. Graphite may be considered the highest grade of coal, just above anthracite and alternatively called meta-anthracite, although it is not normally used as fuel because it is difficult to ignite.
Graphite powder production line:
Crushing------grinding------flotation machine------ore concentrate drying------screening

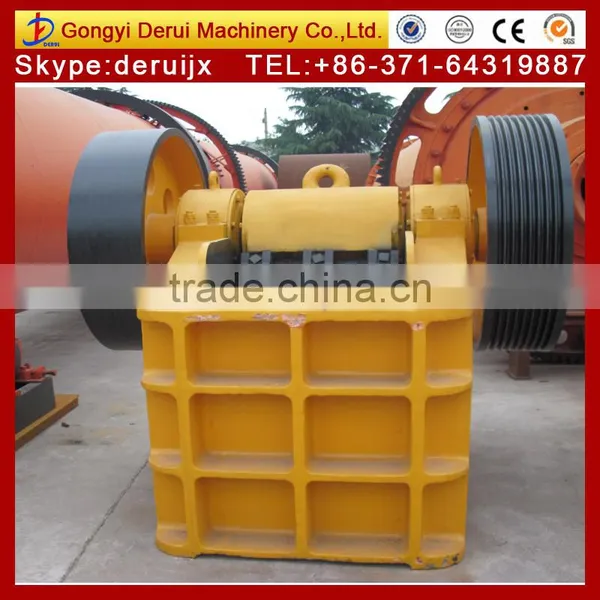

Jaw crusher used for crushing graphite ore:

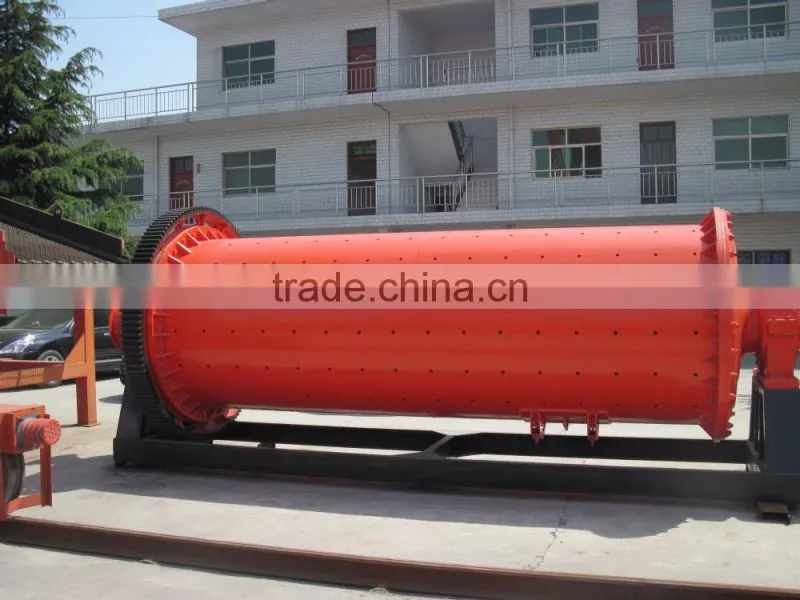

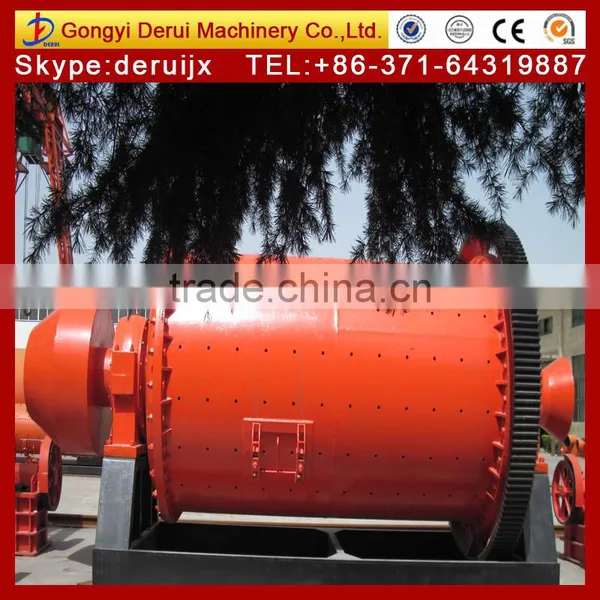

Ball mill used for grinding crushed graphite:

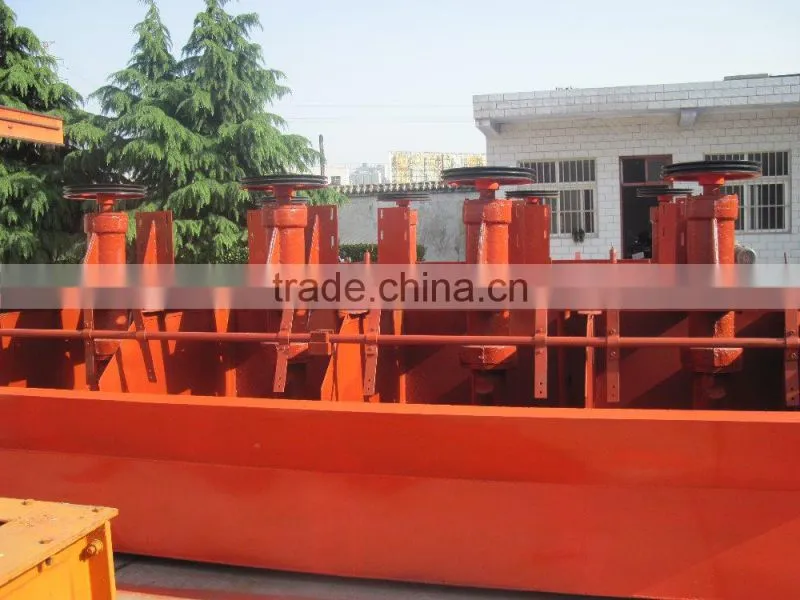

Flotation machine is also known as flotation cell and flotation tank, which is one kind of ore processing equipment mainly used to separate copper, zinc, lead, nickel, gold, silver, lead ,graphite and other non-ferrous metals.
Working Principle of SF flotation machine:
When it works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.

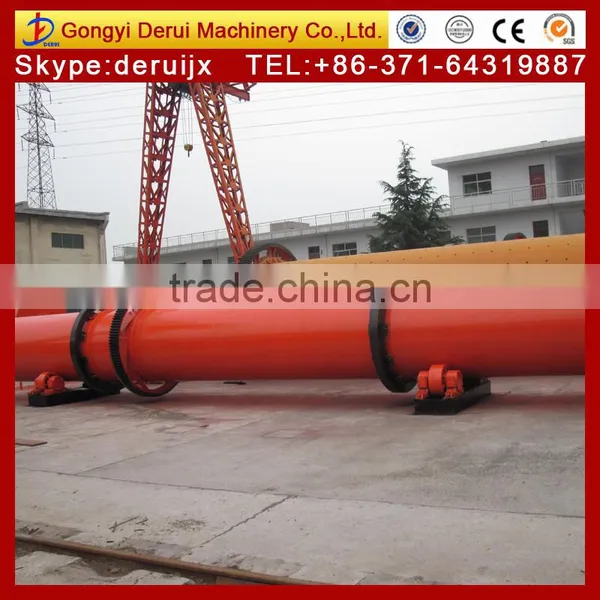

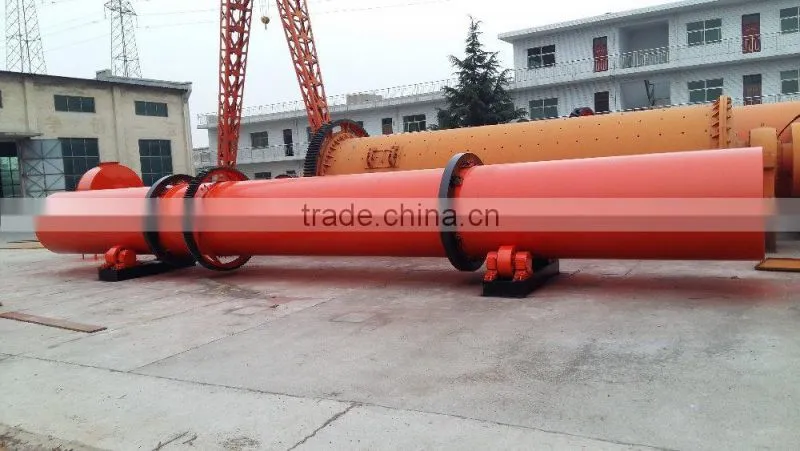

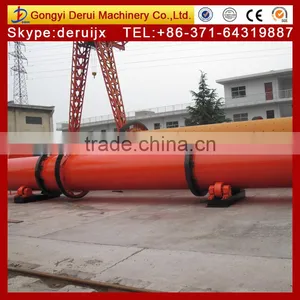

Last, using rotary dryer for drying wet graphite concentrate:
Technical parameter of SF flotation machine:
Model | SF0.37 | SF0.7 | SF1.2 | SF2.8 | SF4 |
Trough volume(m3) | 0.37 | 0.7 | 1.2 | 2.8 | 4 |
Impeller diameter(mm) | 300 | 350 | 450 | 550 | 650 |
capacity(m2/min) | 0.2-0.4 | 0.3-0.9 | 0.6-1.2 | 1.5-3.5 | 0.5-4 |
Impeller speed(r/min) | 352 | 400 | 312 | 268 | 238 |
Model of motor Power of motor(kw) dimensions(mm) single trough weight(kg) | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y180L-6 |
Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 | |
1.5 | 3 | 5.5 | 11 | 15 | |
1.1 | 1.1 | 1.1 | 1.1 | 1.5 | |
700X700X750 | 900X820X950 | 1100X1100X1100 | 1700X1600X1150 | 1850X2050X1200 | |
468 | 600 | 1373 | 2338 | 2660 |
XJF flotation machine:
| Model | Volume | Impeller dia(mm) | Capacity(m3/min) | Impeller speed(r/min) | Scraper speed(r/min) | Dimensions | Weight(t) |
| L*W*H(mm) | |||||||
| XJK-0.13(1A) | 0.13 | 200 | 0.05-0.16 | 600 | 17.5 | 2110*865*990 | 0.35 |
| XJK-0.23(2A) | 0.23 | 250 | 0.12-0.28 | 500 | 17.5 | 2625*1130*1290 | 0.42 |
| XJK-0.35(3A ) | 0.35 | 300 | 0.18-0.4 | 470 | 17.5 | 3012*1350*1327 | 0.45 |
| XJK-0.62(4A) | 0.62 | 350 | 0.3-0.9 | 400 | 26 | 3798*1464*1530 | 0.85 |
| XJK-1.1(5A) | 1.1 | 500 | 0.6-1.6 | 330 | 26 | 4679*1820*1942 | 1.24 |
| XJK-2.8(6A) | 2.8 | 600 | 1.5-3.5 | 280 | 26 | 7750*1600*1100 | 2.43 |
Flotation machine shipping:
How to visit us ?
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
