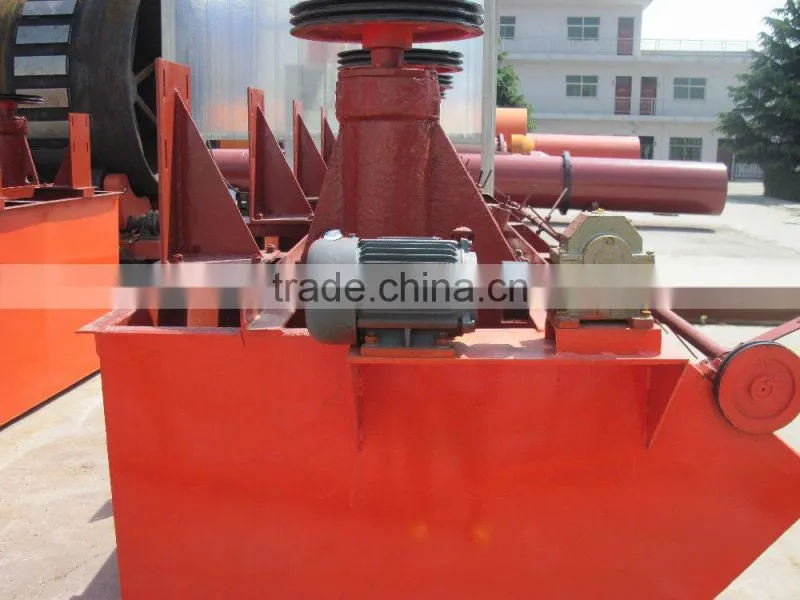

Gold recovery and recycling equipment of gold ore processing plant
Flotation machine is also known as flotation cell and flotation tank, which is one kind of ore processing equipment mainly used to separate copper, zinc, lead, nickel, gold, silver, lead and other non-ferrous metals. So, it is also called gold flotation machine and copper ore flotation machine.
Flotation machine is also suitable for separating ferrous metal, noble metal, chemical raw materials, non-metal minerals like coal, fluorite and talc. Besides, flotation machine also can be used to separate useful minerals.
Working Principle of SF flotation machine:
When it works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
Technical parameter of SF flotation machine:
Model |
SF0.37 |
SF0.7 |
SF1.2 |
SF2.8 |
SF4 |
Trough volume(m3) |
0.37 |
0.7 |
1.2 |
2.8 |
4 |
Impeller diameter(mm) |
300 |
350 |
450 |
550 |
650 |
capacity(m2/min) |
0.2-0.4 |
0.3-0.9 |
0.6-1.2 |
1.5-3.5 |
0.5-4 |
Impeller speed(r/min) |
352 |
400 |
312 |
268 |
238 |
|
Model of motor Power of motor(kw) dimensions(mm) single trough weight(kg) |
Y90L-4 |
Y100L2-4 |
Y132M2-6 |
Y160L-6 |
Y180L-6 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
|
1.5 |
3 |
5.5 |
11 |
15 |
|
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
|
700X700X750 |
900X820X950 |
1100X1100X1100 |
1700X1600X1150 |
1850X2050X1200 |
|
468 |
600 |
1373 |
2338 |
2660 |
XJF flotation machine:
| Model | Volume | Impeller dia(mm) | Capacity(m3/min) | Impeller speed(r/min) | Scraper speed(r/min) | Dimensions | Weight(t) |
| L*W*H(mm) | |||||||
| XJK-0.13(1A) | 0.13 | 200 | 0.05-0.16 | 600 | 17.5 | 2110*865*990 | 0.35 |
| XJK-0.23(2A) | 0.23 | 250 | 0.12-0.28 | 500 | 17.5 | 2625*1130*1290 | 0.42 |
| XJK-0.35(3A ) | 0.35 | 300 | 0.18-0.4 | 470 | 17.5 | 3012*1350*1327 | 0.45 |
| XJK-0.62(4A) | 0.62 | 350 | 0.3-0.9 | 400 | 26 | 3798*1464*1530 | 0.85 |
| XJK-1.1(5A) | 1.1 | 500 | 0.6-1.6 | 330 | 26 | 4679*1820*1942 | 1.24 |
| XJK-2.8(6A) | 2.8 | 600 | 1.5-3.5 | 280 | 26 | 7750*1600*1100 | 2.43 |
Flotation machine production line:
Feeder------Jaw crusher------Cone crusher------Elevator------Ball mill------Jigger machine------Concentrator------Ball mill------Flotation machine------Magnetic machine------Tailing recycling machine
Flotation machine shipping:
Flotation machine working site:
How to visit us ?
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
