2017 New Model Biochar Carbonization Furnace for Sawdust Carbon for Agricultural Use

 2017 new model biochar carbonization furnace for sawdust carbon for agricultural use

Carbonization furnace intorduction:

Carbonization furnace Working condition:
Moisture content no more than 15%

Carbonization furnace Applications:All kinds of biomass material: Fruit Husk,Wood Scraps and Crop Stalks,
Fruit Husk---Rice husk,Coconut shell, Peanut shell/Groundnut shell,Sunflower seed husk/shell,Palm kernel shell,Walnut shell,etc.
Wood Scraps---Wood sawdust,Wood shavings,Wood chips,Tree branch, Bamboo scraps,Waste from beer breweries,etc.
Crop Stalks---Plants straw,Crop residues,Soybean straw,Wheat straw,Cotton straw,Corn stalks,Maize Cob/Corncob,etc.

Carbonization furnace Materials requirements:

Particle size is less than 15 mm, water content <15% of biomass particles can feeding into the carbonization furnace directly, such as: sawdust, rice husk, palm shell, peanut shell, bamboo shavings, etc.;When you carbonize larger raw materials (Particle size more than 15 mm), raw materials need to be crushed into less than 15mm pieces firstly; If water content is more than 15%, using dryer for drying firstly, for fully carbonized and get high quality carbon.

Carbonization furnace consists of feeding system, carbonization  systems (hosts and coal discharging equipment),

purification systems, condensate systems, heating systems (gasifier),etc.

Carbonization furnace technical parameter:

Production capacity: 3-5t / d

Host Power: 3kw

Host feed power: 1.5kw × 2

The conveying power: 3kw

Coal discharing machine power: 3kw

Gasifier slag off power: 3kw

Carbon machine of gasifier power: 3kw

Floor space: 15m × 10m × 6m (L × W × H)

Wearing parts: 20 × 20 pure graphite parts , carbon discharging parts, feeding screw blades, burners.

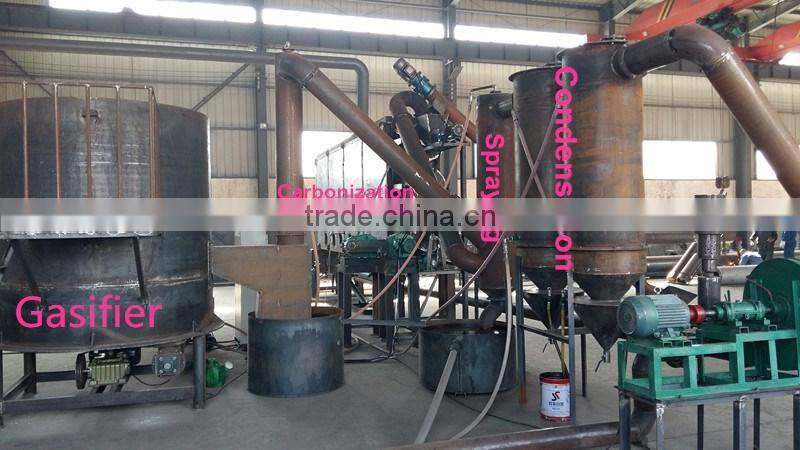

Gasifier diagram:

Working principle of carbonization equipment:

1.Agricultural and forestry waste enter into gasfier, produced flammable gas send by high pressure fan into spray filter,After cooling

 by condenser, then gonging to burner at the bottom of carbonization equipment.

2.When Pipe temperature reach the demand for carbonization, materials conveyed by feeding conveyor to top feeder , top feeder

carried materials into top high temperature tube for drying, by rotation tube and screw device inside tube, materials walking from

 one end to the other end, then middle feeder, middle high temperature pipe, bottom feeder, bottom high temperature pipe.

3.By using flammable gas produced during carbonization, heat source recycling(close gasfier ).

4.Carbon powder cooled by carbon-discharging machine, discharged from bottom, then send to warehouse.During carbonization, by using condenser for recycling

 wood vinegar fluid and wood tar oil.

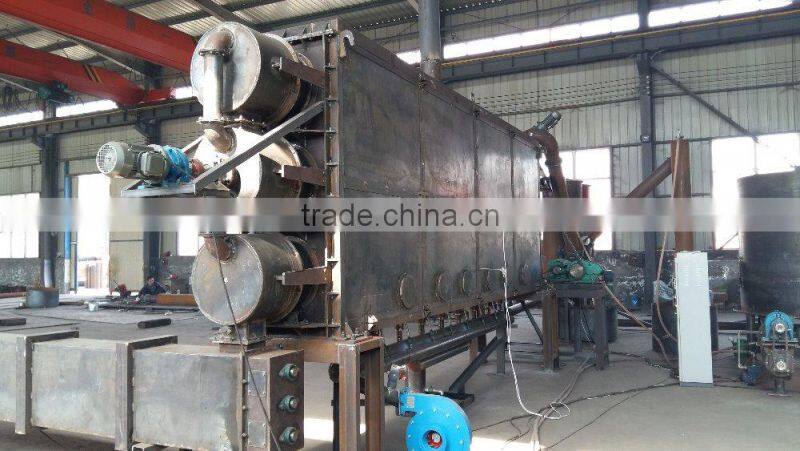

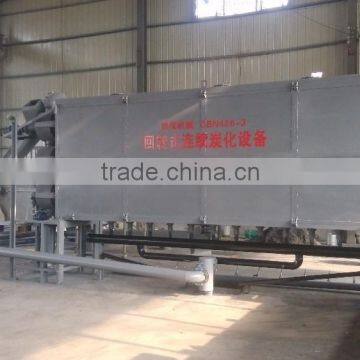

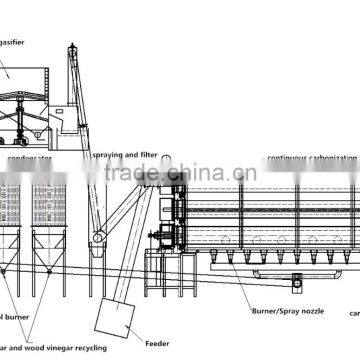

Carbonization furance diagram:

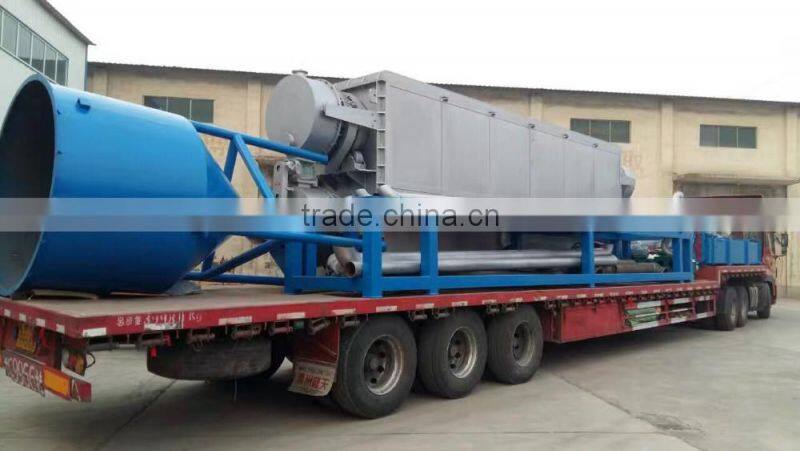

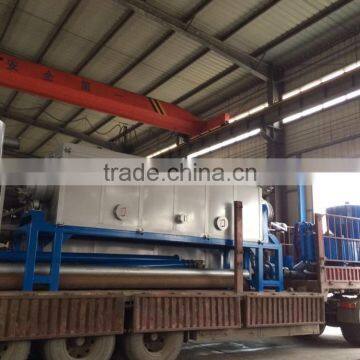

Carbonization furnace shipping:

Advantages of continuous carbonization equipment:

1. High pressure fan absorb carbon monoxide, mathane, oxygen for recycling.

2. Three layers integrated.

3. Under the function of heat preservation box, carbonization goes smoothly.

4.Combined chain wheel, chain rotation with reducer and adjustable-speed motor, carbonization equipment can work continuously. Adjustable-speed motor applied to different materials, ensure carbon powder quality.

5.Groove equipped with supporting wheel, offering power for continuous carbonization.

6.Screw device ensured materials conveyed from one end to the other end, screw height and screw pitch, ensured production and space for discharging of flammable gas and steam, solved problem of congestion. (Under high temperature, materials produce wood vinegar fluid gas, wood tar oil gas and steam, if it can not discharging in time, may jammed)

7.Screw device make materials heating uniform, continuous production, high quality carbon powder.

8.Sealed box and high temperature graphite fixed in sealed slot, by snap ring and screw bolt, adjust sealing clearance.

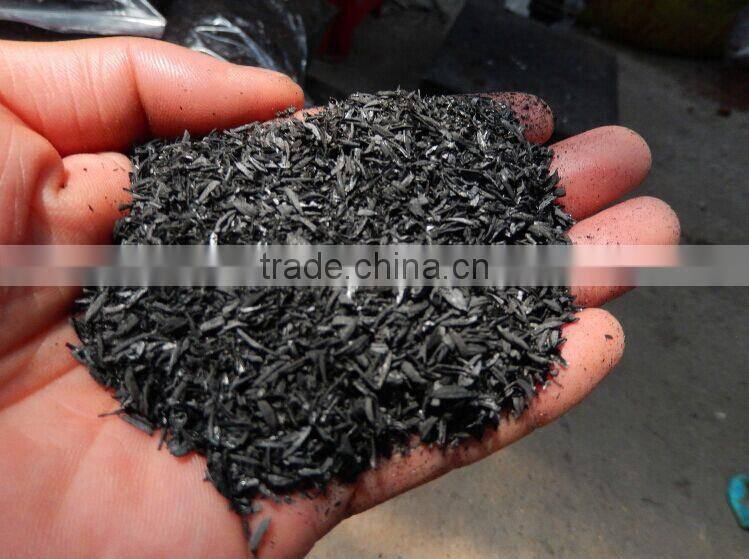

Application of carbonization furnace finial product:

Industrial areas:

metallurgy, suitable for the production of high quality steel.

Chemical

Medicine;

Cosmetics;

environmental protection.

The agricultural sector:

Increasing soil temperature, promote seed germination.

Keep the soil moisture.

As release agent for pesticide or fertilizer

The carbon can also change soil pH

Areas of daily life:

As fuel for heating, barbecue, hot pot

Charcoal can eliminate room odors and harmful substances.

Charcoal can also help preserve food, also as refrigerator deodorant
