Development prospect: According to statistics, agricultural and forestry waste(branch, sawdust, rice husk, straw, wood shaving, etc) is about 6-8 billion ton per year, using ratio is only 20%. With economic development, charcoal is needed for industry, agriculture, medicine and daily life. Carbonization equipment is a new kind and economic equipment, it can “turn waste into wealth”-----turn agriculture and forestry waste into coal, recycled by-product wood vinegar fluid and wood tar oil also brings economic value, improved profit. Biomass carbonization project is renewable resource recycling project which is supported by state, it is best choice for business.

sawdust carbonization stove working condition:
Moisture content no more than 15%

sawdust carbonization stove Applications:All kinds of biomass material: Fruit Husk,Wood Scraps and Crop Stalks,
Fruit Husk---Rice husk,Coconut shell, Peanut shell/Groundnut shell,Sunflower seed husk/shell,Palm kernel shell,Walnut shell,etc.
Wood Scraps---Wood sawdust,Wood shavings,Wood chips,Tree branch, Bamboo scraps,Waste from beer breweries,etc.
Crop Stalks---Plants straw,Crop residues,Soybean straw,Wheat straw,Cotton straw,Corn stalks,Maize Cob/Corncob,etc.

sawdust carbonization stove Materials requirements
Particle size is less than 15 mm, water content <15% of biomass particles can feeding into the carbonization furnace directly, such as: sawdust, rice husk, palm shell, peanut shell, bamboo shavings, etc.;When you carbonize larger raw materials (Particle size more than 15 mm), raw materials need to be crushed into less than 15mm pieces firstly; If water content is more than 15%, using dryer for drying firstly, for fully carbonized and get high quality carbon.

sawdust carbonization stove consists of feeding system, carbonization  systems (hosts and coal discharging equipment),

purification systems, condensate systems, heating systems (gasifier),etc.

sawdust carbonization stove technical parameter:

Production capacity: 3-5t / d

Host Power: 3kw

Host feed power: 1.5kw × 2

The conveying power: 3kw

Coal discharing machine power: 3kw

Gasifier slag off power: 3kw

Carbon machine of gasifier power: 3kw

Floor space: 15m × 10m × 6m (L × W × H)

Wearing parts: 20 × 20 pure graphite parts , carbon discharging parts, feeding screw blades, burners.

sawdust carbonization stove shipping:

Advantages of sawdust carbonization stove:
1. High pressure fan absorb carbon monoxide, mathane, oxygen for recycling.
2. Three layers integrated.
3. Under the function of heat preservation box, carbonization goes smoothly.
4.Combined chain wheel, chain rotation with reducer and adjustable-speed motor, carbonization equipment can work continuously. Adjustable-speed motor applied to different materials, ensure carbon powder quality.
5.Groove equipped with supporting wheel, offering power for continuous carbonization.
6.Screw device ensured materials conveyed from one end to the other end, screw height and screw pitch, ensured production and space for discharging of flammable gas and steam, solved problem of congestion. (Under high temperature, materials produce wood vinegar fluid gas, wood tar oil gas and steam, if it can not discharging in time, may jammed)
7.Screw device make materials heating uniform, continuous production, high quality carbon powder.
8.Sealed box and high temperature graphite fixed in sealed slot, by snap ring and screw bolt, adjust sealing clearance.

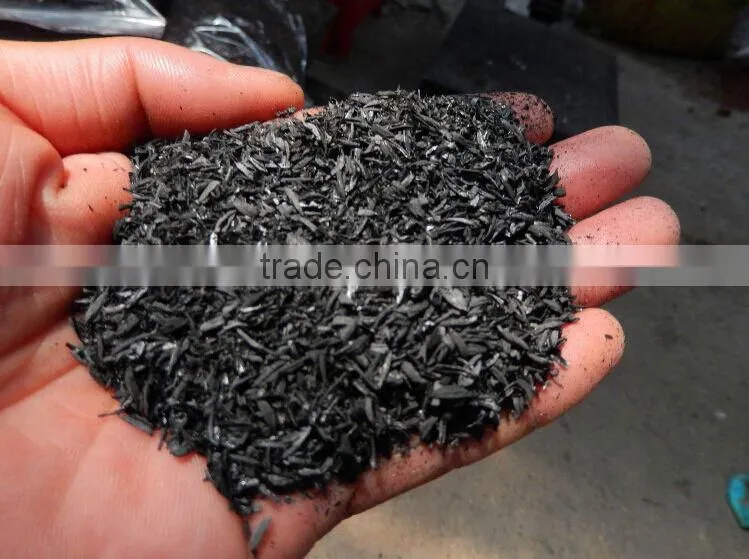

Application of sawdust carbonization stove finial product:

Industrial areas:

metallurgy, suitable for the production of high quality steel.

Chemical

Medicine;

Cosmetics;

environmental protection.

The agricultural sector:

Increasing soil temperature, promote seed germination.

Keep the soil moisture.

As release agent for pesticide or fertilizer

The carbon can also change soil pH

Areas of daily life:

As fuel for heating, barbecue, hot pot

Charcoal can eliminate room odors and harmful substances.

Charcoal can also help preserve food, also as refrigerator deodorant

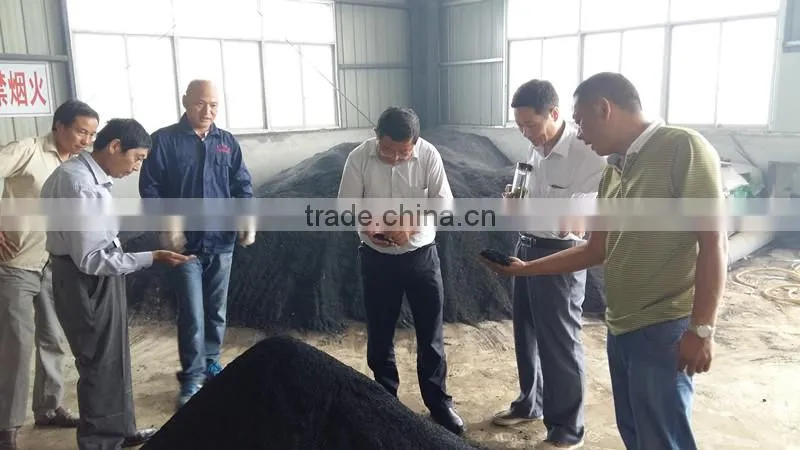

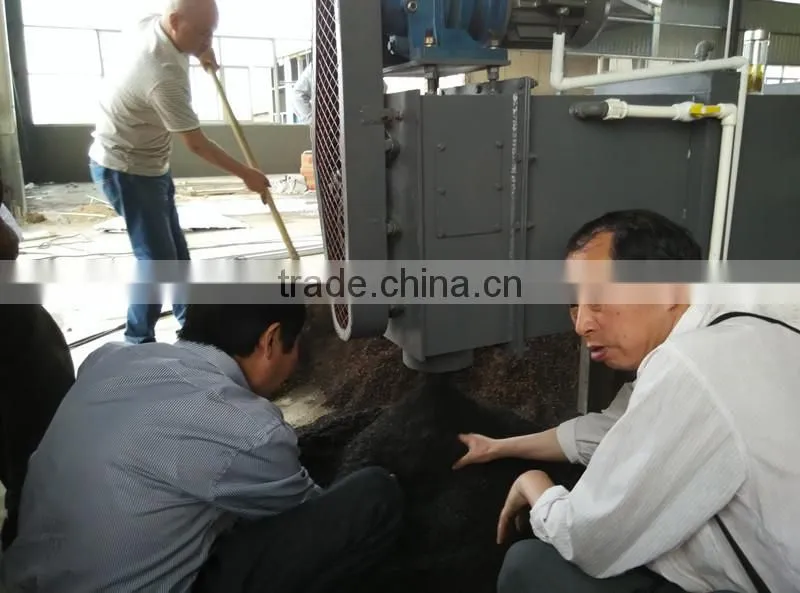

sawdust carbonization stove working site:
