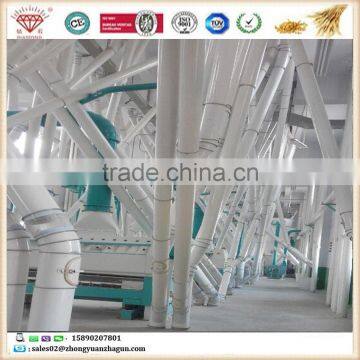

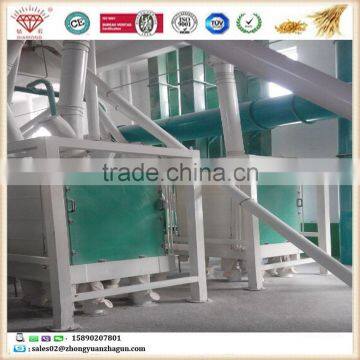

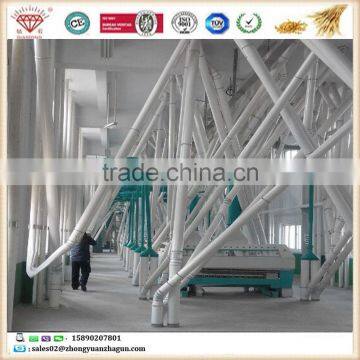

Fully Automatic All-purpose Wheat Flour Mill Production Line (50Ton per 24 Hour)

Pre-cleaning

In most cases, the raw materials delivered to the mills are not pure grains.

So we need clean the grain first use Cylinder pre-cleaner

 For the more dirty grain and the bigger capacity .

Cleaning section

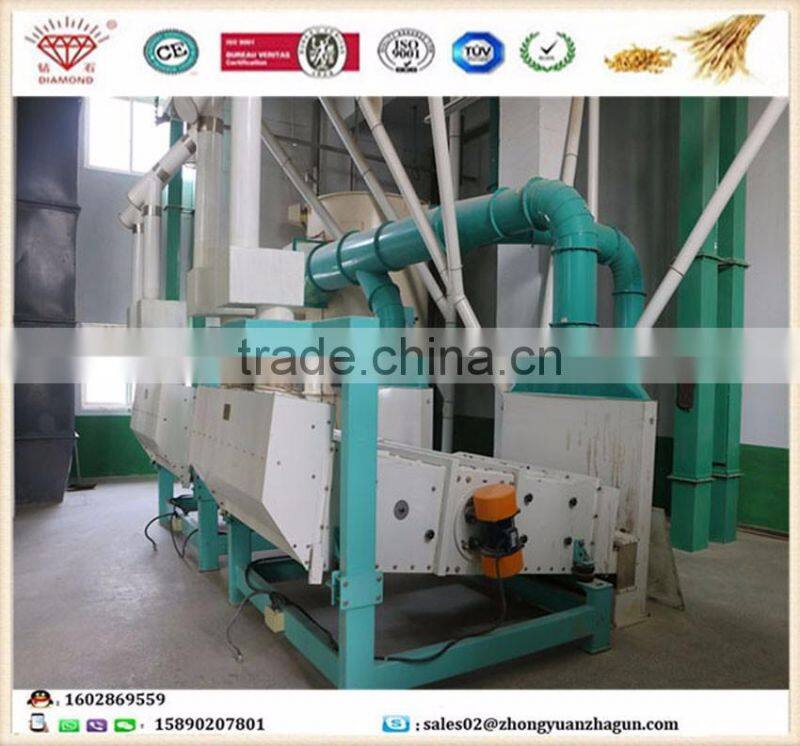

to clean out the middle and small impurity from grain , including Vibrating sieve, Magnetic separator, Wheat scourer, Gravity Classify Destoner, Plan-revolving sifter

Clean out impurities and protect the machinery as well

Dampening system

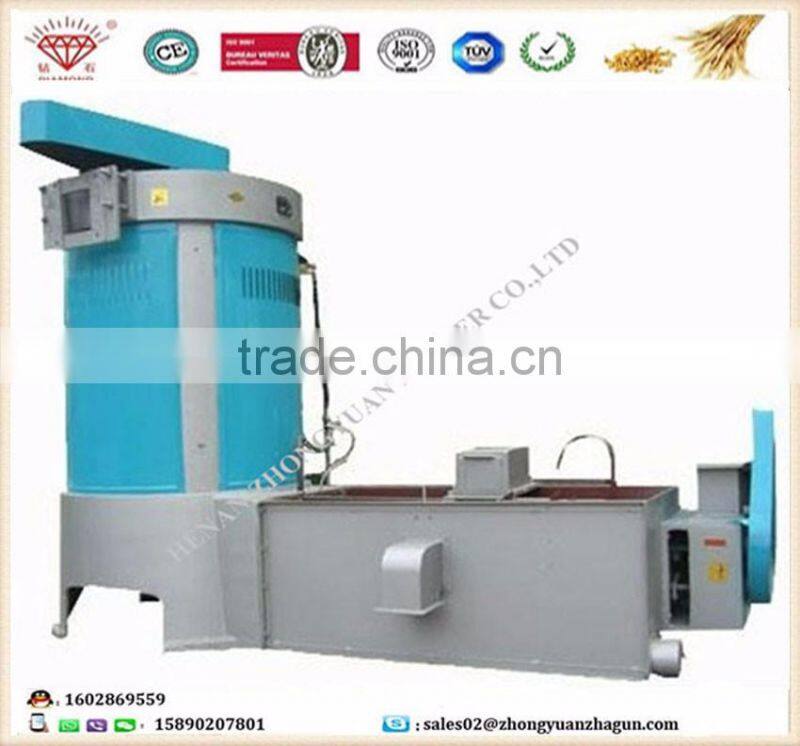

 We use Wheat Washer, Dampener  to give rich moisture to the grain for the next step milling .

1.Keep complete bran :remove the Endosperm from the bran.
Guarantee the flour quality and improve the flour extraction rate .
2. Easy milling : After water in the endosperm increases, its strength is reduced, moving the grinding consumption decreased and endosperm easily pulverized into a powder.
3. Easy separation: the bonding force between the bran and endosperm weakened, easy separation of the bran and endosperm

Mill

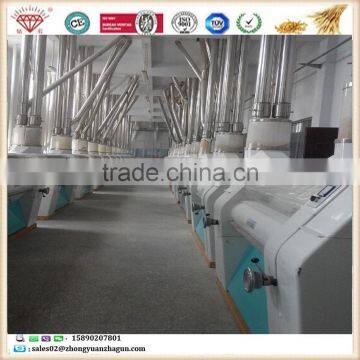

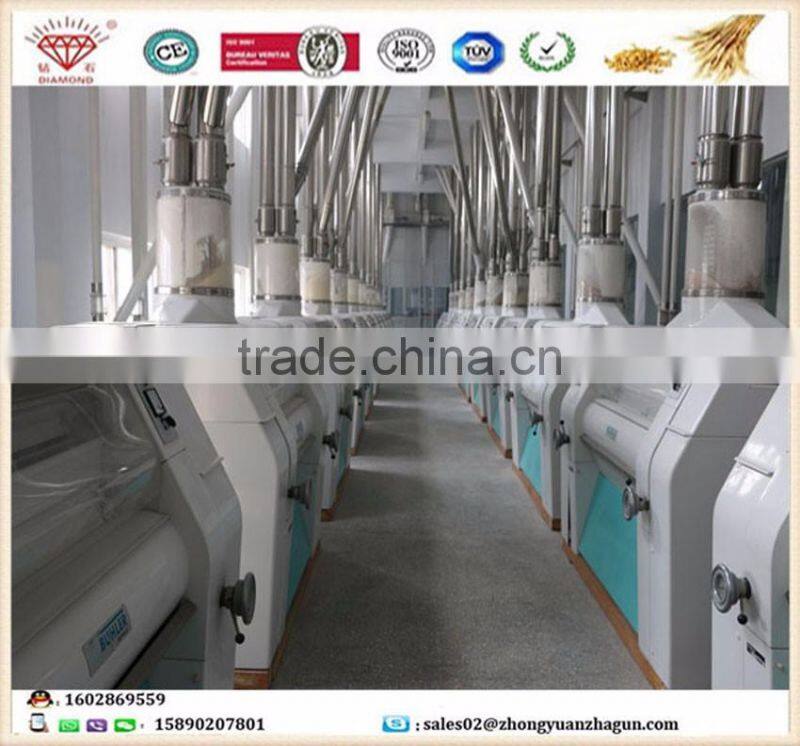

 Roller Mill Flaking

The roller mill is by far the most important grinding machine in a mill.

The endosperm is gradually reduced in particle size by running it between a series of pairs of rotating steel rollers, either corrugated or smooth, and is separated from the bran and germ by running it over sieves. All pairs of rollers in a roller mill have one slow mill and one fast one. The rolls turn in opposite directions, toward each other, pulling the stock between them.

Sifter

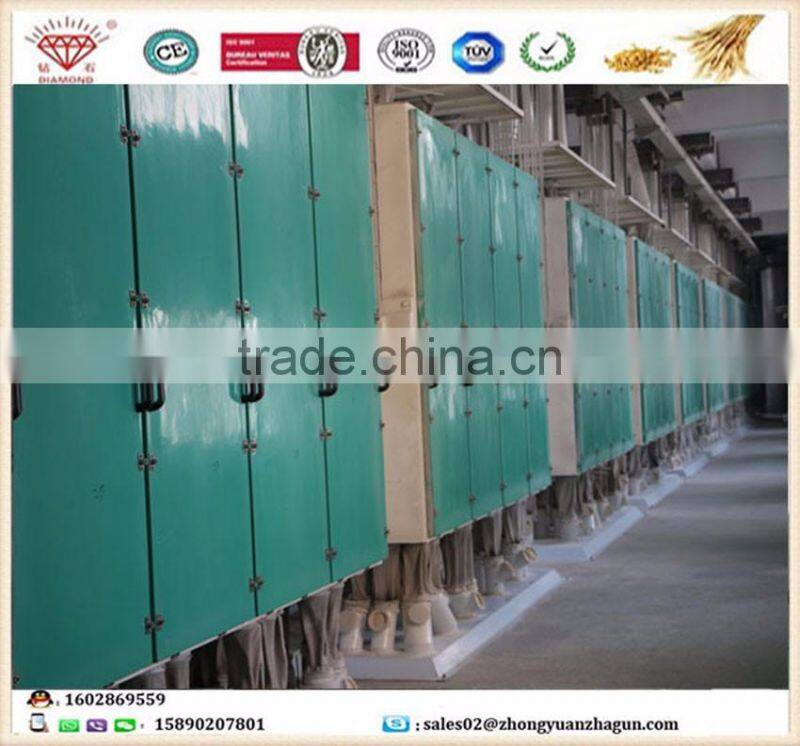

Double bin sifter

Square sifter

Flaking

to separate the flour and bran, also separate large size and small size to enssure flour quality..

The sifting principle is based on a circular movement of a sieve which separates small and light particles from small but heavy particles.

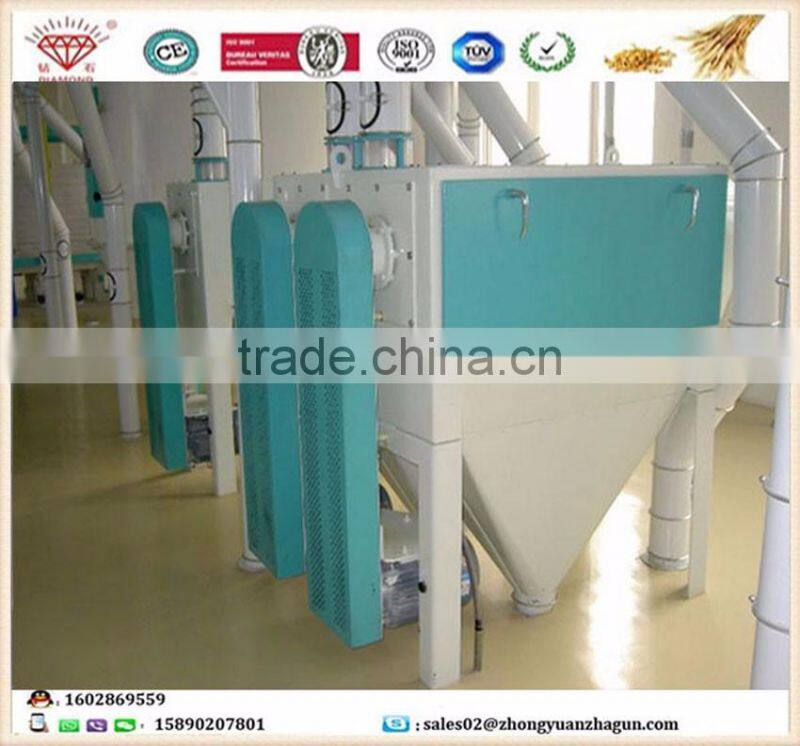

Purifier

 In a wheat mill, purification is achieved when fine bran and germ are separated from endosperm particles to increase the purity of coarse endosperm (farina or semolina).

Purification and Classification

This purification step allows the miller to maximize extraction of low ash, bright color flour.

Bran Brusher

Horizontal Wheat Bran Finisher

 Clean out the flour on the bran surface, increase the flour extraction rate and improve flour quality

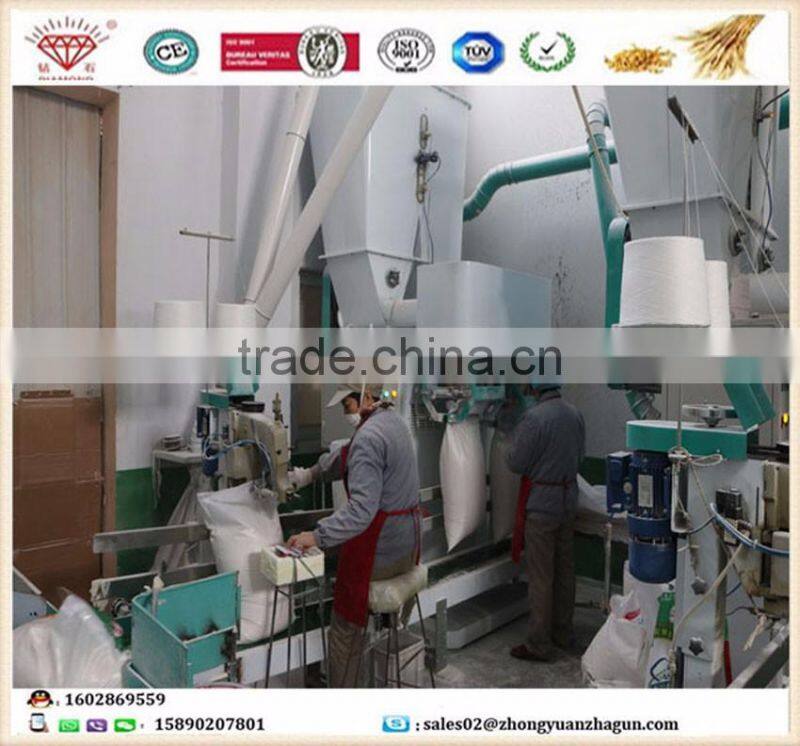

Automatic Packing machine

Automatic weighing and packing machine

The packing part can be manual one also can be auto one, this can be designed according to requirement and machine capacity.

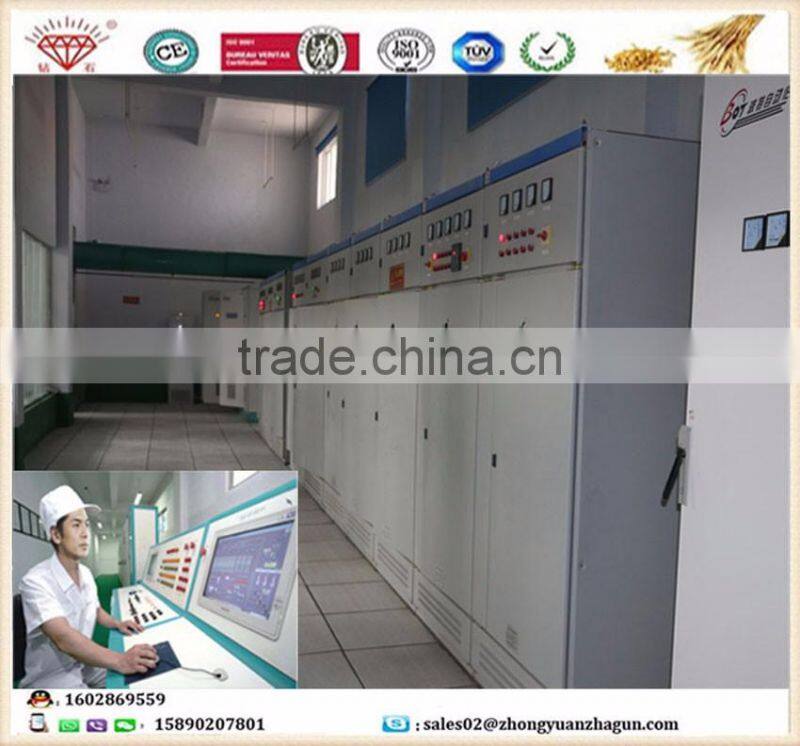

PLC   Controlling

PLC controlling system

 To controlling the whole set of machinery to work well and showing the process of working.

It makes the whole processing line smoothly and high efficient.
