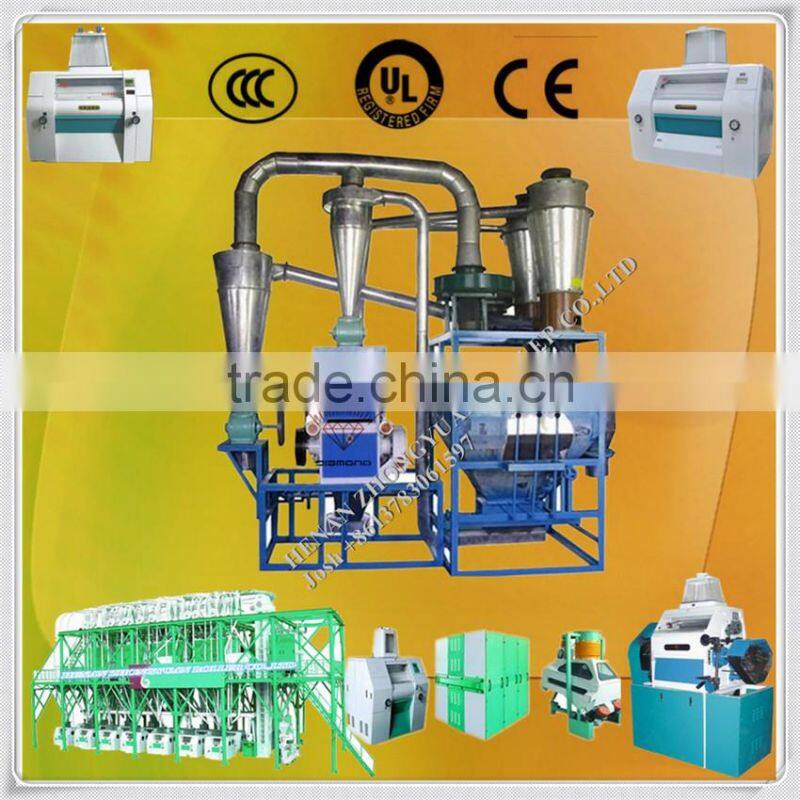

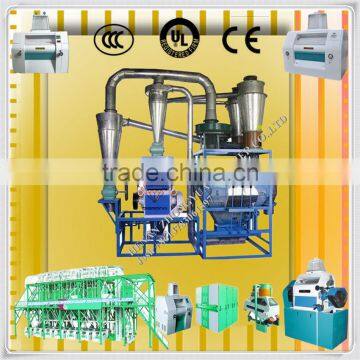

Small Wheat Flour Mill 10TPD Wheat Flour Mill Machines

Henan Zhongyuan Roller Co., Ltd.
Small Wheat Flour Mill 10TPD Wheat Flour Mill Machines thumbnail-1
Small Wheat Flour Mill 10TPD Wheat Flour Mill Machines thumbnail-2
Small Wheat Flour Mill 10TPD Wheat Flour Mill Machines thumbnail-3
Small Wheat Flour Mill 10TPD Wheat Flour Mill Machines thumbnail-4
Small Wheat Flour Mill 10TPD Wheat Flour Mill Machines thumbnail-5
Small Wheat Flour Mill 10TPD Wheat Flour Mill Machines thumbnail-6
Small Wheat Flour Mill 10TPD Wheat Flour Mill Machines photo-1
Small Wheat Flour Mill 10TPD Wheat Flour Mill Machines photo-2

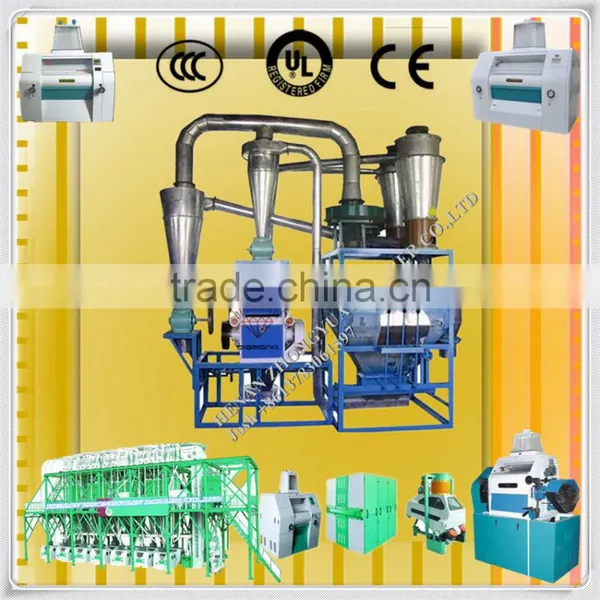

Small Wheat Flour Mill 10TPD Wheat Flour Mill Machines photo-3
Small Wheat Flour Mill 10TPD Wheat Flour Mill Machines photo-4
Small Wheat Flour Mill 10TPD Wheat Flour Mill Machines photo-5

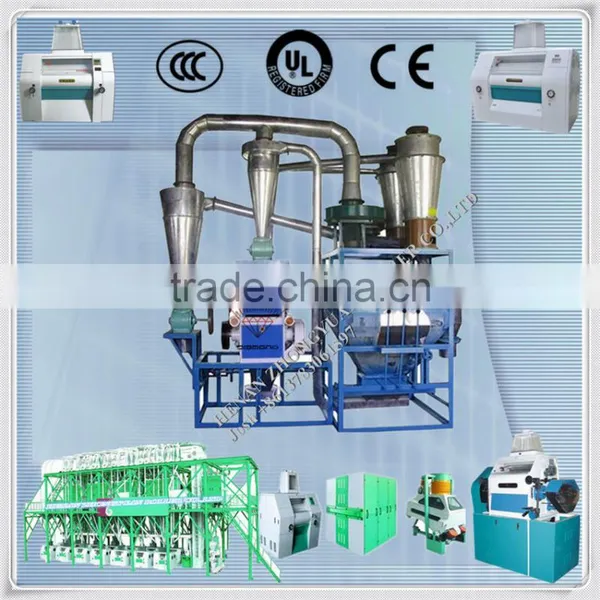

Small Wheat Flour Mill 10TPD Wheat Flour Mill Machines photo-6
US$ 6,500 - 9,000 MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Diamond Brand
Model Number:
J type flour mill
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name Diamond Brand
Model Number J type flour mill
Type Grain Processing Equipment
After-sales Service Provided Engineers available to service machinery overseas

2015  Alibaba  china Home flour mill machine

We can offer single flour milling machine from 7t/24hr to 18t/24hr.
This series includes 6FS-7A, 7B, 9A, 9B, 12A, 12B, 15A, 18A


About the Diamond  Brand



--- 65 years experience in flour mill industry

--- Best solution for wheat and maize processing system

--- The biggest flour mill machine manufacturer and exporter in China

--- Exporting to more than 40 countries with a presence world wide.

--- High quality and efficiency technology

The competitive advantage of product line:

Welcome OEM & ODM orders.

Production Capacity:

Product Line NameProduction Line CapacityActual Units Produced(Previous Year)
Grain Processing EquipmentWheat Milling Plant: 45 Sets / Year; Maize Milling Plant: 72 Sets / Year; Single Equipment:500 Sets / Yearconfidential

Export Market Distribution:

MarketRevenue(Previous Year)Total Revenue (%)
South Americaconfidential35.04
Eastern Europeconfidential1.39
Southeast Asiaconfidential0.57
Africaconfidential15.85
Mid Eastconfidential0.11
South Asiaconfidential4.98
Domestic Marketconfidential42.06

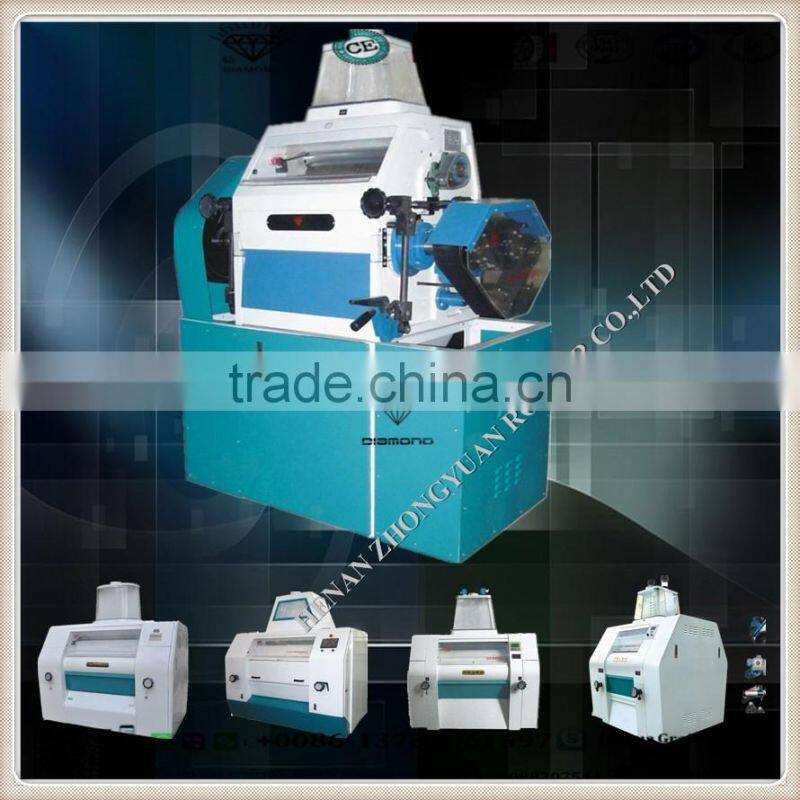

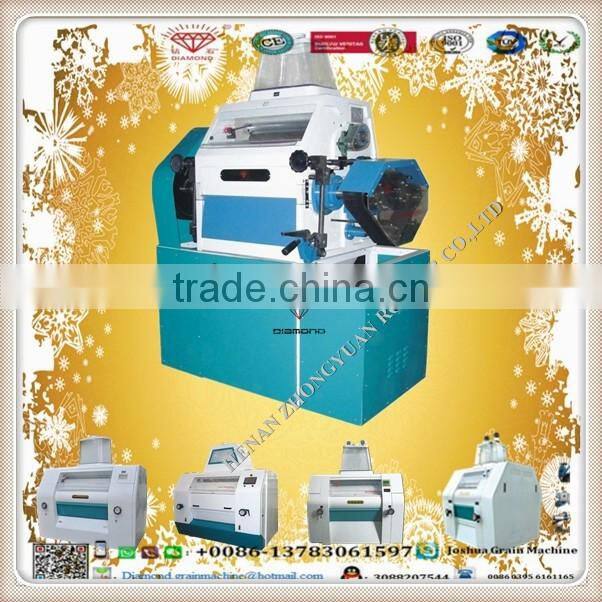

Application and Features of   wheat flour milling machine

This wheat flour milling machine   mainly uses in flour processing. This product strctures compact, design reasonable, contour artistic.

  • Computerized auto-control,you can also manual cotrol or remote control in front of the mill.
  • The rotate speed of feeding rollers will speed governing automaticly between 33r/min and 260r/min.
  • The horizontal rollers constitute separate self-maintaining institution with the damping girder.
  • Liquid crystal show the roll clearance,rotate speed of feeding rollers and percent of load power.
  • It is equipped with denti-wedge belt drive of slow and quick roller
  • The body of mill is welded with the high quality steel plate,sturdy and durable,beautiful apperance.
  • The main control element and bearing are adopted the famous brand at home and abroad

 Use reliable, smooth working, save power. Feeding series adopts double roller, and feeding uniformity, antomatism control, easy to operate, in the mill feed materials, resistance, It is a new equipment for wheat processing.

Technical data of  wheat flour milling machine







Project

Unit

specification

Type



FM30/1250

FM30/1000

FM25/800

Roller(diameter×long)

mm

Φ300×1250

Φ300×1000



Roller using range

mm

Φ300-Φ270

Fast roller speed

r/min

450-650

The fast and slow roller speed ratio



1.25:1  1.5:1   2:1  2.5:1

Feeding roller speed ratio



1:1  1.4:1  2:1

Half equipped with power

electromotor



6 level

Power

KW

37,30,22,18.5,15,11,7.5,5.5

Main driver wheel

diameter

mm

Φ360

Groove slot number





15N(5v)type  6 groove  4 groove

Pneumatic working pressure

Mpa

0.6

Shape dimension(Long x width x high)

mm

2060×1590×1914

1810×1590×1914

Weight (about)

Kg

4500

4000



 Small wheat flour mill 10TPD wheat flour mill machinesSmall wheat flour mill 10TPD wheat flour mill machinesSmall wheat flour mill 10TPD wheat flour mill machinesSmall wheat flour mill 10TPD wheat flour mill machinesSmall wheat flour mill 10TPD wheat flour mill machinesSmall wheat flour mill 10TPD wheat flour mill machinesSmall wheat flour mill 10TPD wheat flour mill machinesSmall wheat flour mill 10TPD wheat flour mill machines



Our Services

 Small wheat flour mill 10TPD wheat flour mill machinesSmall wheat flour mill 10TPD wheat flour mill machinesSmall wheat flour mill 10TPD wheat flour mill machinesSmall wheat flour mill 10TPD wheat flour mill machines

Company Information

 Small wheat flour mill 10TPD wheat flour mill machinesSmall wheat flour mill 10TPD wheat flour mill machines

FAQ

 Small wheat flour mill 10TPD wheat flour mill machines
