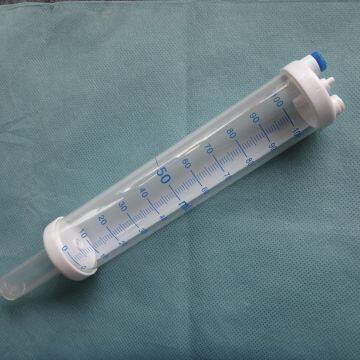

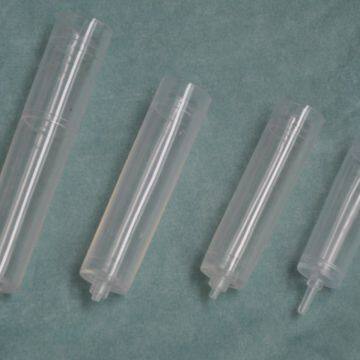

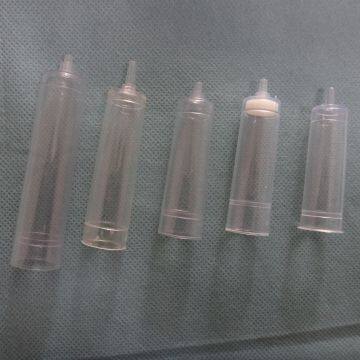

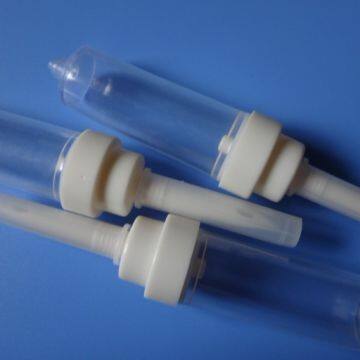

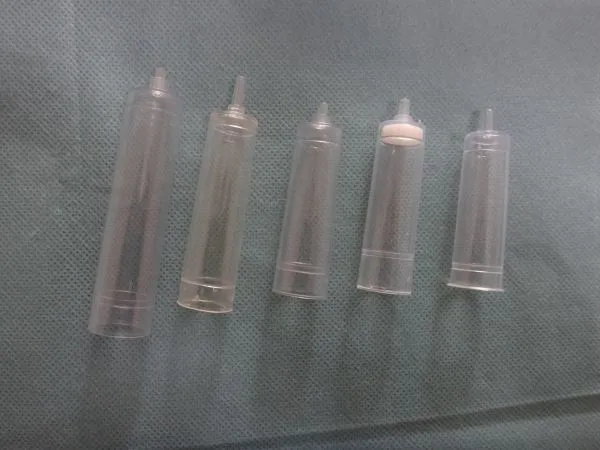

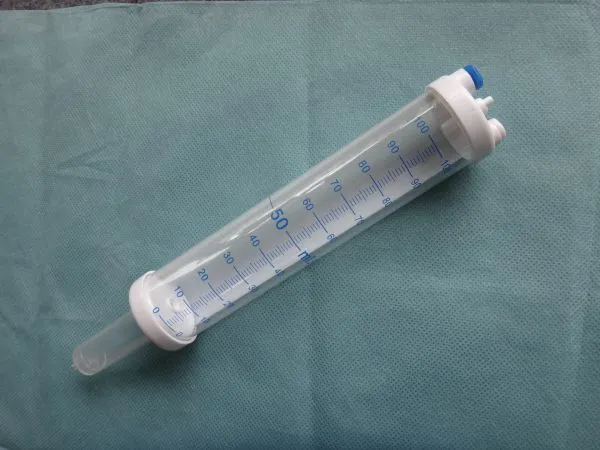

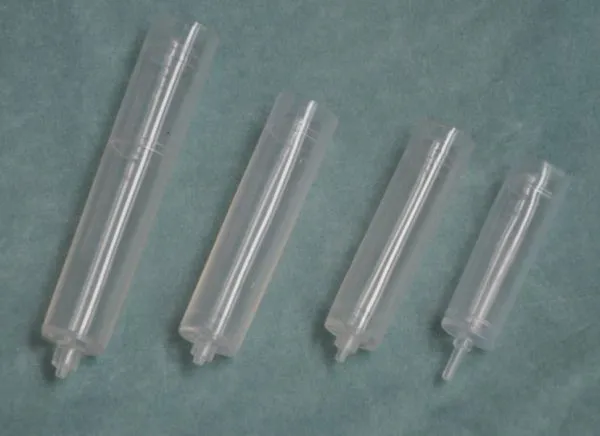

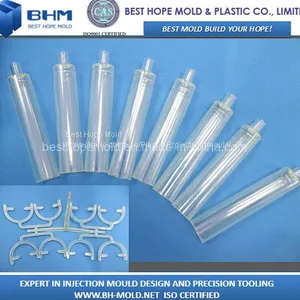

I. V. Drip Chamber Plastic Injection Mould for Medical Use
PVC chamber what we always do including following. 2 plate or 3 plate mold, feeding gate on top or edge all have experience, as well as how to control PVC soft production.
54mm IV drip chamber, 16 or 24 cavity.
62mm IV drip chamber, 16 or 24 cavity
67mm IV drip chamber, 16 or 24cavity
72mm IV drip chamber, 16 or 24 cavity
Blood transfusion chamber
98mm BTC chamber, 8 or 16cavity.
Blood line PVC chamber
Different size and design all is no problem, 8 or 16 cav.
BHM focus on high precision medical mold:
We have rich experience in below medical moulds, but not limited to those:
Molds for infusion set components: Spike, spike cover, drip chamber, female/male luer lock, clamps etc.
Molds for Blood Line components: Spike, chamber, clamp, dialyzer connector, injeciton site, pump connector...
Molds for suction tubes connectors, funnel connector
Molds for I. V. Cannula parts
Molds for 3 way stopcock
Molds for AV Fistula needle hub, wing and cover
Molds for respiratory and anesthesia parts, oxygen mask mold
Molds for vaginal speculum
Molds for umbilical cord clamp
| Name | Moulds for Drip Chamber |
| Part Material | soft PVC |
| Engineering | CAD, UG, ProE, CAD, Solidworks, Mastercam, Cimatron^ |
| Core/Cavity Steel | 1.2316, 1.2083, 1.2344, ASSAB S136 ESR, H13, hardening, HRC52-54 |
| Mold Base | LKM (or according to customer) |
| Mold Spare Parts | DME, HASCO, MISUMI, LKM ^standard |
| Cavity No. | Multi cavity: 16/24/32/48/64^ |
| Runner | Hot, Hot to Cold, Cold |
| Hot Runner Brand | Husky, YUDO, Mold Masters, Synventive, Mastip^ |
| Demoulding | Motor, oil cylinder, stripping plate, slides, angel pin, ejector sleeves ^ |
| Mold Life | 100, 000 - 5000, 000 shots |
| Lead Time | 3-10 weeks according to complexity of mold |
| Packaging | Fumigation-free wooden box |
