Specifications
Pellet forming machine:1.High density final briquettes;
2.100kg/ps strength for each briquettes;
3.97% complete rate
Energy saving biomass pellet forming machine
Why do customers choose Zhonghang?
Zhonghang pellet forming machine's specifications:
1.High density final briquettes;
2.100kg/ps strength for each briquettes;
3.97% complete rate;
4.Higher pressure and economic;
5.Free of smoke and peculiar smell.
Zhonghang pellet forming machine's application:
1.ZHONGHANG DYQ series coal briquette machine mainly used to press all kinds of coal
and mineral powder, metal powder, coal powder, coke powder and make them molded.
2.The products have the three high characteristics: high density, high strength and high hardness.
3.The local rolls are made of 650Mn hard materials with good wear resistance.
4.It is widely used in refractory,power plants,metallurgy,chemical,energy,transportation,
heating, etc.
Zhonghang pellet forming machine's working principles:
1.This series of briquette making machine will pass the power on to the two pressure roller
through the reducer.
2.The two sides and roll rotation,in both the rotating roll.
3.Natural materials to enter the ball roll mode,with the roll rotation, material pressure on a
small become larger.
4.When the material to the two rollers rotating line contact point,the pressure of materials
has reached the peak.
5.Tremendous pressure in the role of line,the materials become a finished product from the
powder ball.
Zhonghang pellet forming machine's parameters:
Model |
DYQ360 |
DYQ400 |
DYQ500 |
DYQ650 |
DYQ750 |
DYQ850 |
DYQ1000 |
|
Capacity |
Hour |
3-5T/h |
4-7T/h |
8-10T/h |
12-20T/h |
25-30T/h |
35-40T/h |
40-45T/h |
Year |
10000T |
20000T |
30000T |
50000T |
70000T |
100000T |
200000T |
|
Width of roller surface |
250mm |
280mm |
300mm |
336mm |
400mm |
500mm |
650mm |
|
Diameter of pressure roller |
360mm |
430mm |
500mm |
650mm |
750mm |
850mm |
1000mm |
|
Power |
7.5kw |
11kw |
15kw |
22kw |
30kw |
45kw |
130kw |
|
Reducer model |
ZQ350 |
ZQ400 |
ZQ500 |
ZQ650 |
ZQ750 |
ZQ850 |
ZQ1000 |
|
ZQ400 |
ZQ500 |
ZQ650 |
ZQ750 |
ZQ850 |
ZQ1000 |
ZQ1250 |
||
Pressure Method |
wedge block |
wedge block |
wedge block |
wedge block |
wedge block |
wedge block |
wedge block |
|
bearing bars |
bearing bars |
bearing bars |
hydraulic |
hydraulic |
hydraulic |
hydraulic |
||
Roller Material |
65Mn |
c |
65Mn |
65Mn |
65Mn |
65Mn |
65Mn |
|
9Cr2Mo |
9Cr2Mo |
9Cr2Mo |
9Cr2Mo |
9Cr2Mo |
9Cr2Mo |
9Cr2Mo |
||
|
Model of Bearing and number |
319*4 |
319*4 |
2097724*4 |
2097732*4 |
2097732*4 |
2097734*4 |
20977*44 |
|

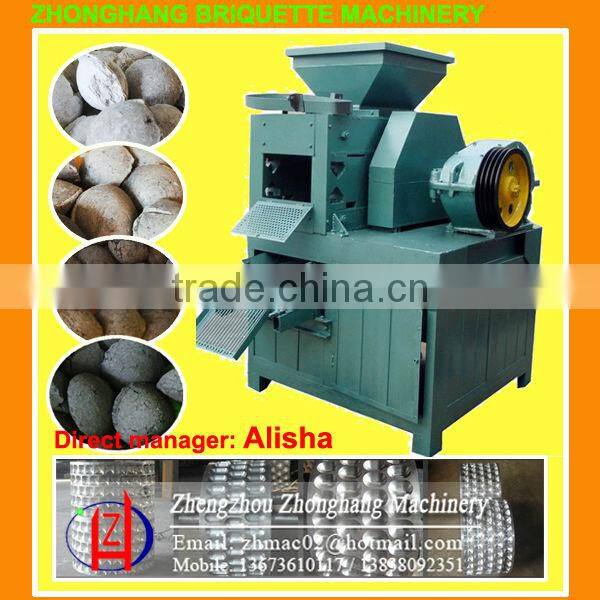

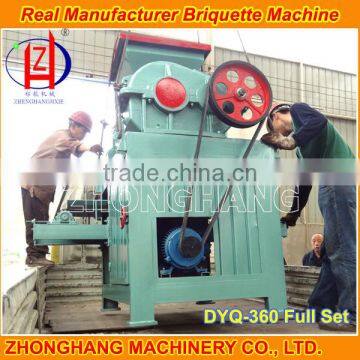

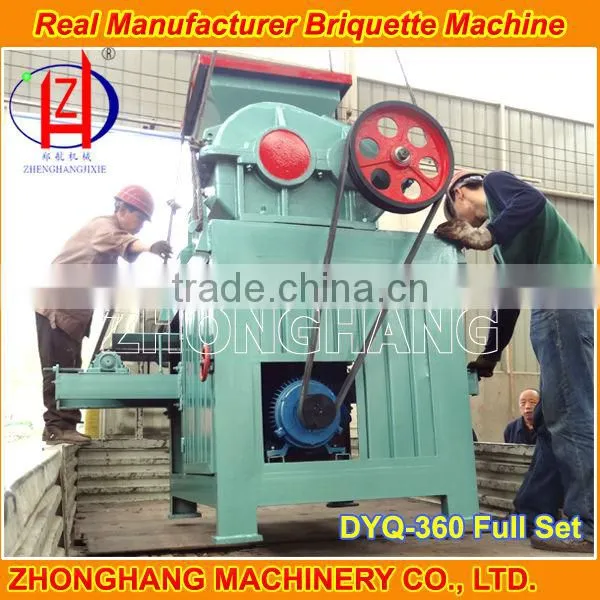

DYQ-650 briquette machine made by Zhonghang manufacturer.

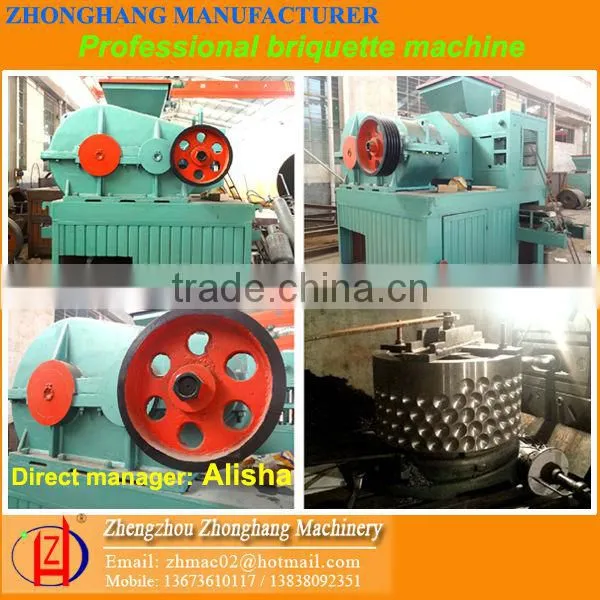

Ruducer well installed for DYQ-650 briquette machine in factory.
The bearing between host machine and reducer is manganese steel.
The back of DYQ-650 briquette machine
Raw materials of DYQ-650 briquette machine
The original structure of briquette machines.
Double rollers of briquette machines

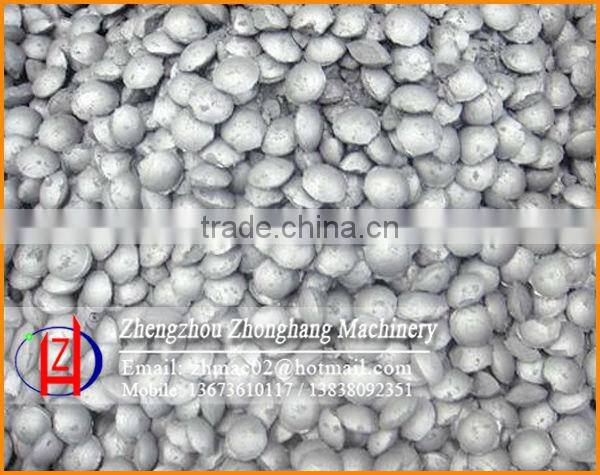

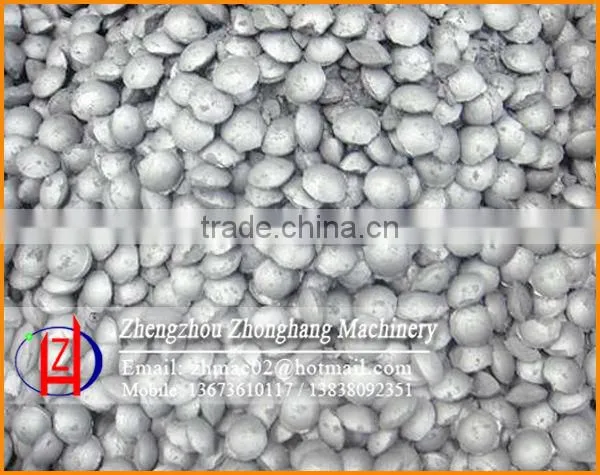

Final products made by DYQ serious briquette machines
Comfirmations:
In order to find the best suitable models and design of briquettte plant for you,
kindly please inform us the following informations:
1. Which kind of raw material you're going to press?
2. What's the input size of raw matrial? (In inch, centimeter or millimeter)
3. What's the size of the final products you need? (In milimeter,micron or mesh)
4. What's the production capacity per hour you want?
5. Do you need just one briquette machine or a complete production line?
