Hydraulic Briquette Machine for Sale

Specifications

Hydraulic briquette machine for sale:
1.High density briquettes;
2.100kg/ps strength for each briquettes;
3.98% complet rate.

Hydraulic briquette machine for sale





Why do customers choose Zhonghang?



Zhonghang briquette machine's specifications:
1.High density final briquettes;
2.100kg/ps strength for each briquettes;
3.97% complete rate;

4.Higher pressure and economic;
5.Free of smoke and peculiar smell.

Zhonghang briquette machine's application:

1.ZHONGHANG DYQ series coal briquette machine mainly used to press all kinds of coal

and mineral powder, metal powder, coal powder, coke powder and make them molded.

2.The products have the three high characteristics: high density, high strength and high hardness.

3.The local rolls are made of 650Mn hard materials with good wear resistance.

4.It is widely used in refractory,power plants,metallurgy,chemical,energy,transportation,

heating, etc.

Zhonghang briquette machine's working principles:

1.This series of  briquette making machine will pass the power on to the two pressure roller

through the reducer.

2.The two sides and roll rotation,in both the rotating roll.

3.Natural materials to enter the ball roll mode,with the roll rotation, material pressure on a

small become larger.

4.When the material to the two rollers rotating line contact point,the pressure of materials

has reached the peak.

5.Tremendous pressure in the role of line,the materials become a finished product from the

powder ball.

Zhonghang briquette machine's parameters:

Model		DYQ360	DYQ400	DYQ500	DYQ650	DYQ750	DYQ850	DYQ1000
Capacity	Hour	3-5T/h	4-7T/h	8-10T/h	12-20T/h	25-30T/h	35-40T/h	40-45T/h
	Year	10000T	20000T	30000T	50000T	70000T	100000T	200000T
Width of roller surface		250mm	280mm	300mm	336mm	400mm	500mm	650mm
Diameter of pressure roller		360mm	430mm	500mm	650mm	750mm	850mm	1000mm
Power		7.5kw	11kw	15kw	22kw	30kw	45kw	130kw
Reducer model		ZQ350	ZQ400	ZQ500	ZQ650	ZQ750	ZQ850	ZQ1000
		ZQ400	ZQ500	ZQ650	ZQ750	ZQ850	ZQ1000	ZQ1250
Pressure Method		wedge block	wedge block	wedge block	wedge block	wedge block	wedge block	wedge block
		bearing bars	bearing bars	bearing bars	hydraulic	hydraulic	hydraulic	hydraulic
Roller Material		65Mn	c	65Mn	65Mn	65Mn	65Mn	65Mn
		9Cr2Mo	9Cr2Mo	9Cr2Mo	9Cr2Mo	9Cr2Mo	9Cr2Mo	9Cr2Mo
Model  of Bearing and number		319*4	319*4	2097724*4	2097732*4	2097732*4	2097734*4	20977*44

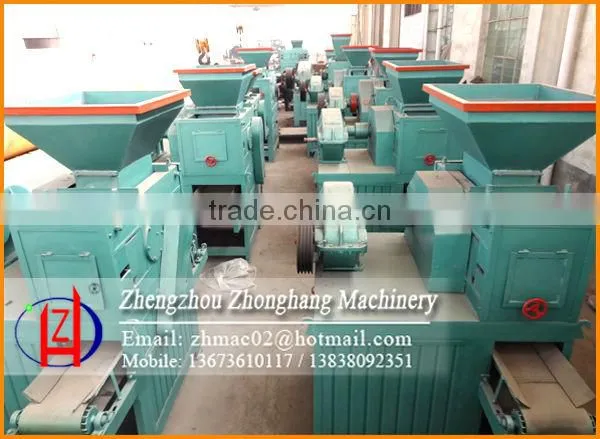

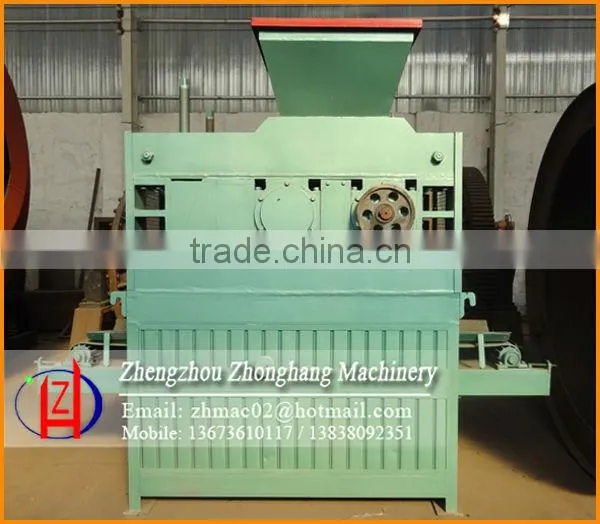

DYQ serious briquette machines in real Zhonghang factory.

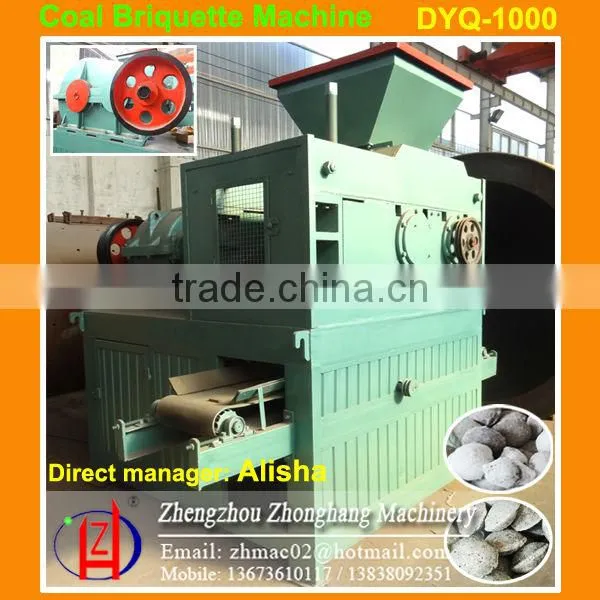

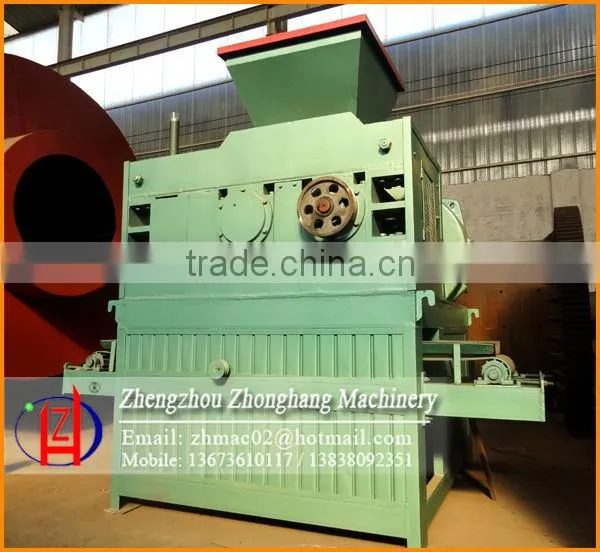

DYQ serious briquette machines made by Zhonghang manufacturer.

Raw materials of DYQ briquette machine

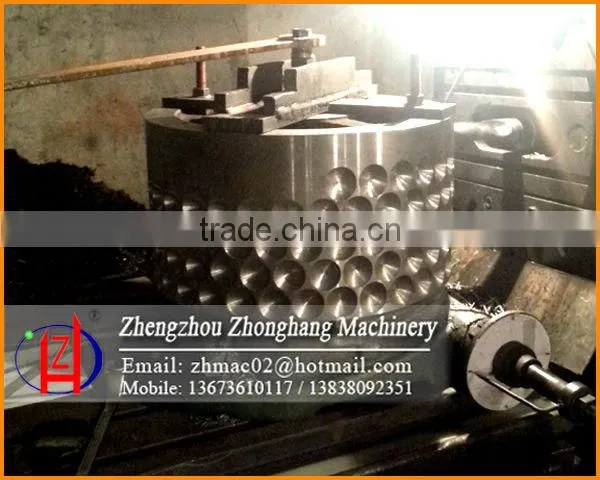

Nearly to check the double roller of machine is manganese steel

The original structure of briquette machines.

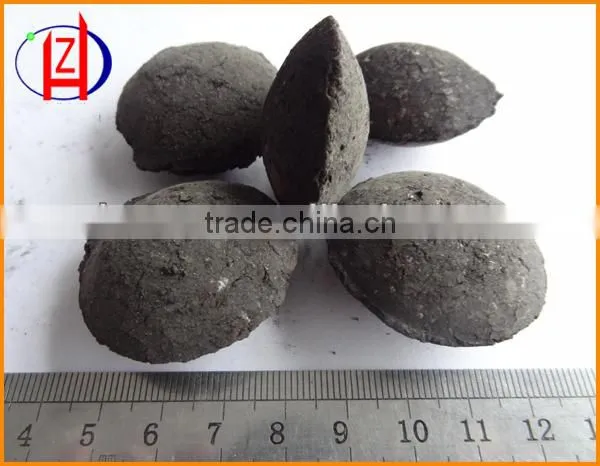

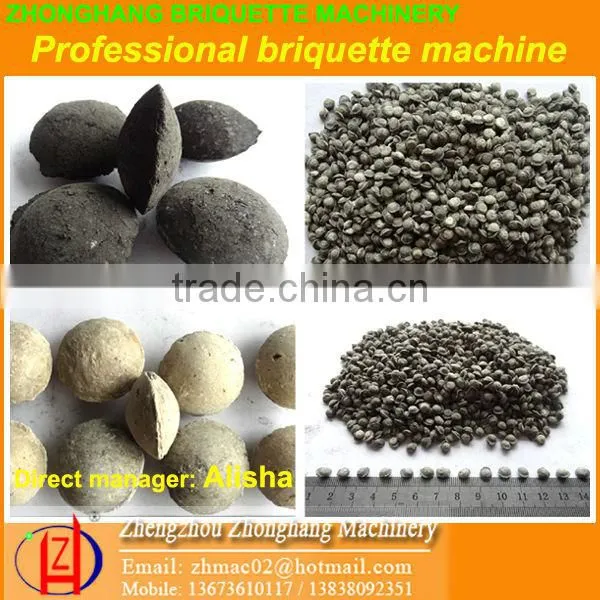

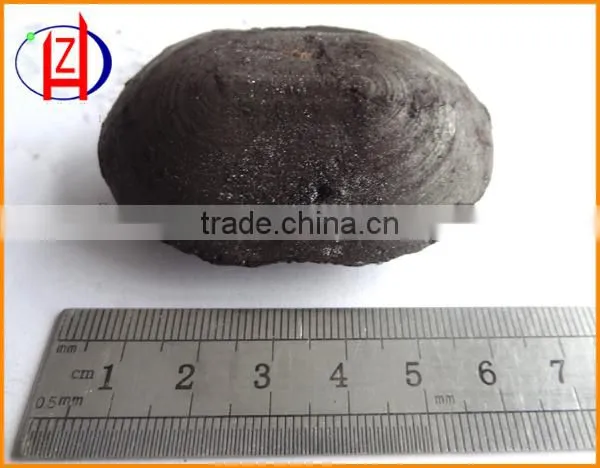

Final products made by DYQ serious briquette machines

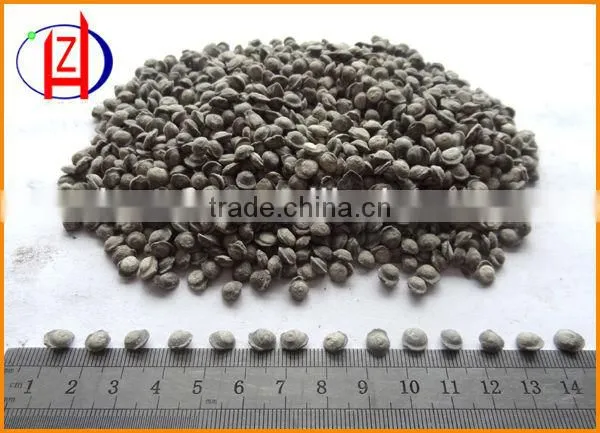

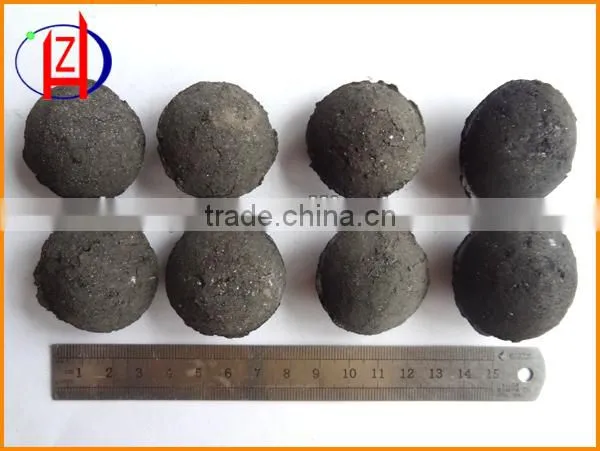

Nearly to see final products of briquette machines

Comfirmations:

In order to find the best suitable models and design of briquettte plant for you,

kindly please inform us the following informations:



1. Which kind of raw material you're going to press?

2. What's the input size of raw matrial?  (In inch, centimeter or millimeter)

3. What's the size of the final products you need? (In milimeter,micron or mesh)

4. What's the production capacity per hour you want?

5. Do you need just one briquette machine or a complete production line?
