Help CenterHigh Forming Rate Hydraulic Saw Dust Press Machine
Related Products
-
Real Supplier Top Briquetting Press PlantUS$ 600 - 60,000MOQ: 1 Set -
Energy Saving Biomass Pellet Forming MachineUS$ 600 - 16,000MOQ: 1 Set
-
Hydraulic Briquette Machine for SaleUS$ 600 - 60,000MOQ: 1 Set
-
Excellent Quality ISO & CE Client Highly Speaking Dry Powder Briquette MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
Widely-Used Automatic Ball Press Machine Production LineUS$ 10,000 - 100,000MOQ: 1 Set
Specifications
Hydraulic saw dust press machine:1.High density final briquettes
2.100kg/ps strength for each briquettes
3.98% complete rate
High forming rate hydraulic saw dust press machine
Why do customers choose Zhonghang?
Zhonghang press machine's specifications:
1.High density final briquettes;
2.100kg/ps strength for each briquettes;
3.97% complete rate;
4.Higher pressure and economic;
5.Free of smoke and peculiar smell.
Zhonghang press machine's application:
1.ZHONGHANG DYQ series coal briquette machine mainly used to press all kinds of coal
and mineral powder, metal powder, coal powder, coke powder and make them molded.
2.The products have the three high characteristics: high density, high strength and high hardness.
3.The local rolls are made of 650Mn hard materials with good wear resistance.
4.It is widely used in refractory,power plants,metallurgy,chemical,energy,transportation,
heating, etc.

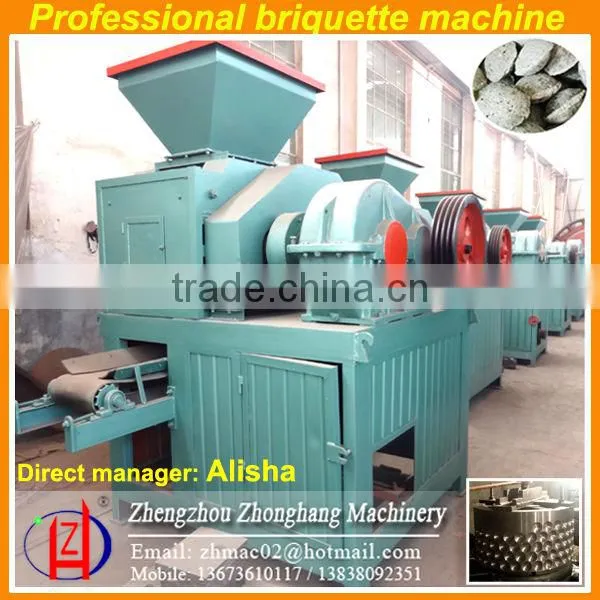

DYQ serious pellet machines in real Zhonghang factory.
Zhonghang press machine's working principles:
1.This series of briquette making machine will pass the power on to the two pressure roller
through the reducer.
2.The two sides and roll rotation,in both the rotating roll.
3.Natural materials to enter the ball roll mode,with the roll rotation, material pressure on a
small become larger.
4.When the material to the two rollers rotating line contact point,the pressure of materials
has reached the peak.
5.Tremendous pressure in the role of line,the materials become a finished product from the
powder ball.
Raw materials of DYQ pellet machine
Zhonghang press machine's parameters:
Model |
DYQ360 |
DYQ400 |
DYQ500 |
DYQ650 |
DYQ750 |
DYQ850 |
DYQ1000 |
|
Capacity |
Hour |
3-5T/h |
4-7T/h |
8-10T/h |
12-20T/h |
25-30T/h |
35-40T/h |
40-45T/h |
Year |
10000T |
20000T |
30000T |
50000T |
70000T |
100000T |
200000T |
|
Width of roller surface |
250mm |
280mm |
300mm |
336mm |
400mm |
500mm |
650mm |
|
Diameter of pressure roller |
360mm |
430mm |
500mm |
650mm |
750mm |
850mm |
1000mm |
|
Power |
7.5kw |
11kw |
15kw |
22kw |
30kw |
45kw |
130kw |
|
Reducer model |
ZQ350 |
ZQ400 |
ZQ500 |
ZQ650 |
ZQ750 |
ZQ850 |
ZQ1000 |
|
ZQ400 |
ZQ500 |
ZQ650 |
ZQ750 |
ZQ850 |
ZQ1000 |
ZQ1250 |
||
Pressure Method |
wedge block |
wedge block |
wedge block |
wedge block |
wedge block |
wedge block |
wedge block |
|
bearing bars |
bearing bars |
bearing bars |
hydraulic |
hydraulic |
hydraulic |
hydraulic |
||
Roller Material |
65Mn |
c |
65Mn |
65Mn |
65Mn |
65Mn |
65Mn |
|
9Cr2Mo |
9Cr2Mo |
9Cr2Mo |
9Cr2Mo |
9Cr2Mo |
9Cr2Mo |
9Cr2Mo |
||
|
Model of Bearing and number |
319*4 |
319*4 |
2097724*4 |
2097732*4 |
2097732*4 |
2097734*4 |
20977*44 |
|
Manganese steel double rollers of pellet machine (briquette machine) in factory.
Nearly to check the double roller of machine is manganese steel.

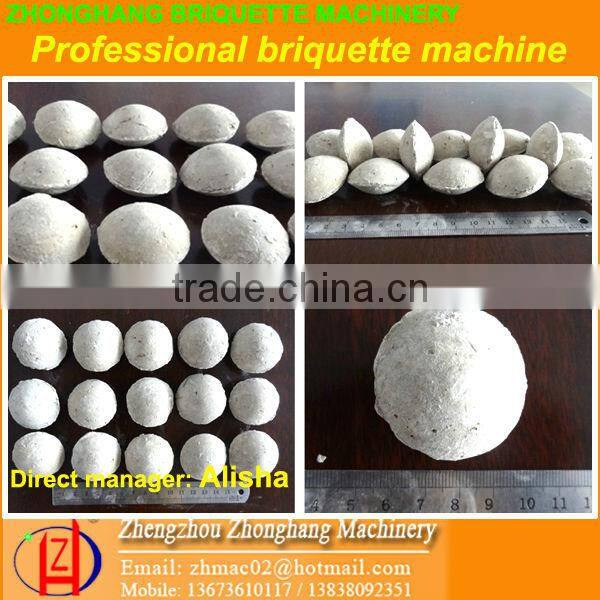

Final products made by DYQ serious pellet machines
Diameter within 5mm pellets made by Zhonghang pellet machine.
Comfirmations:
In order to find the best suitable models and design of pellet plant for you,
kindly please inform us the following informations:
1. Which kind of raw material you're going to press?
2. What's the input size of raw matrial? (In inch, centimeter or millimeter)
3. What's the size of the final products you need? (In milimeter,micron or mesh)
4. What's the production capacity per hour you want?
5. Do you need just one briquette machine or a complete production line?
