Multifunctional Double Effect Concentrator

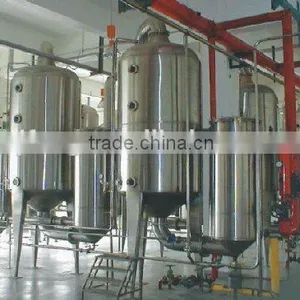

Multifunctional Double Effect Concentrator thumbnail-1
Multifunctional Double Effect Concentrator photo-1
US$ 1,000 - 100,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
JF
Contact Supplier Request Quote Chat Now
Jiangsu Jufeng Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name JF
Model Number SJNII
Processing Types Other, liquid
Voltage 380V
Power(W) according to capacity
Weight according to capacity
Dimension(L*W*H) according to capacity
Certification ISO9001
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

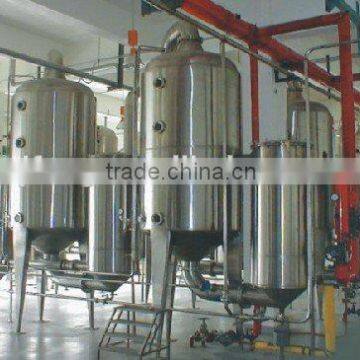

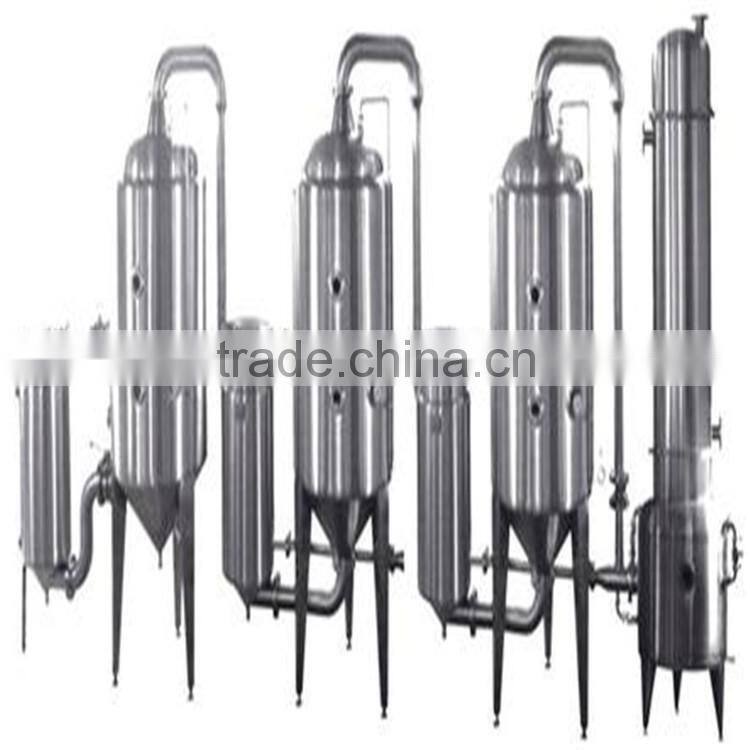

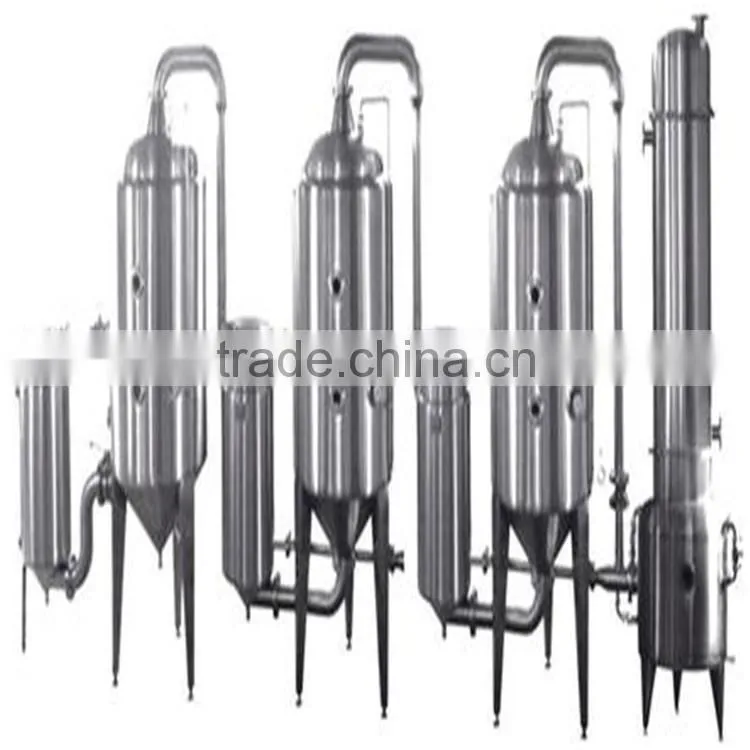

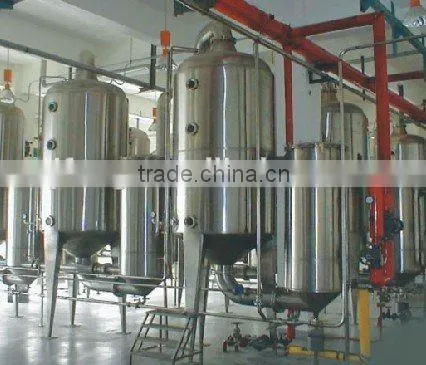

multiple  effect vacuum evaporator


Technology Features
  This concentrator is suitable for concentrating the fluid materials of traditional medicine,western medicine,glucose,starch,gourmet powder,food and milk products,chemical industry .It can be suitable for small batch and many varieties thermal sensitive low temperature concentration.



Features of Single and Double Effect Energy Saving Concentrator


  Alcohol recycling:It has strong recycling capacity,adopts vacuum operation way and improved the workmanship procedure of the equipment.The production ratio has been improved by 5 to 1 0 times compared with old types of the homogeneous equipments,and the recycling ratio can reach up to above 95%The consumption of alcohol is less than5%.And then it decreases the consumption by30%.It is a kind of energy-save equipment of small investment and high recycling profit.







  After the alcohol is recycled. The equipment adopts the way of external heating nature circulation and vacuum positive pressure evaporation with rapid vapor speed and large gravity of concentration.The liquid is concentrated in the full hermetic and non-bubble State.It does not need to process in the Heater when recycling cream close the upper and lower butterfly valves off the Herter,the recycling of cream can be processed at the bottom of the Heater,an the gravity can reach up to above.
  The equipment contact with liquid all made of stainless steel SUS304.Isolate with PU or EPE foam The surface is treated with sand grinding and surface polishing,meeting with the GMP standard.


  Features of Triple Effect Energy Saving Concentrator
  1 The reclaimable alcohol concentration is about 80%.
  2 The three-effect can concentrate three different materials.
  3 The single-effect,two-effect and three-effect can collect cream together time after time.
  4 The intermittent and continuous material feeding is available.
  5 The one-off cream formation is available.The material input is finished by the first effect and after the second and thirst effect.the finished cream is available one-off.
  The special structure of concentrator can bring the concentrated material thick taste and even cream quality.The concentration under the seal and non-bubble condition can prevent material from loss and pollution. The present material can be concentrated presently,which features immune to block and convenient cleaning which can be make just by opening the up and down covers and can be make by one person.
  The part inside of the concentrator in contact with the material is made with stainless steel SUS304.The thermal layer made with polyurethane is available at the heater and evaporator.The surface is treated with sand grinding and surface~polishing,meeting with the GMP standard.



Technical parameters of Double Effect Evaporator



Model Item

SJN II 500

SJN II 1000

SJN II 1500

SJN II 2000

Evaporation capacity (kg/h)

500

1000

1500

2000

Air consumption (kg/h)

<250

<500

<750

<1000

Overall dimension L*W*H(m)

4x1.5x3.3

5x1.6x3.5

6x1.6x3.7

6.5x1.7x4.3

Circulation water consumption (T/h)

6

12

15

18

Evaporating temperature (°C)

Single effect

80-90

Vacuum degree (Mpa)

Single effect

0.02-0.04

Double effect

55-70

Double effect

0.05-0.06

Steam pressure (Mpa)

<0.25

Concentration ratio

1.2-1.3







Note: we can design custom product according to customer's requirement.









Packaging & Shipping



Our Services



 Jufeng enterprise is a professional diversfied machinery manufacturer integrating design,  development,manufacturing,engineering installation,after-sales service,etc. The company took the lead among the industry in obtaining the National D-class "special equipment manufacturing license" and ISO9001:2000 international quality system certification.







Company Information



With the development of market demands and the improvement of production technology, the company is gradually increasing its business range, which includes fruit juice, beverage, dairy turn-key projects, biological engineering, pharmaceutical engineering, sanitary fluid fittings, etc. In August 2007, it was successfully renamed as Zhejiang Jufeng Machinery Factory and its trademark was changed into “Jufeng”. With the expansion of production scale, the company invested RMB 40 million Yuan in 2009 in establishing Jiangsu Jufeng Machinery Co., Ltd. That took an area of 35 Mu



Under the long-term objective of " serving the world ", the company has introduced a large contingent

of high-quality and well-trained professional talents, including 2 senior engineers of professor title,

6 senior engineers, and 20 technicians of intermediate titles.

The company has applied advanced management system to effectively organize,coordinate,standaraize

and control various resources of the company and the whole production and management process.Morever,

it has constantly made technical exchanges with relevant scientific research institutes and experienced experts

in the industry to continuously promote the scientific research and innovation ability, striving to further improve

Jufeng advantageous strength through "   advantageous talents,advantageous managemnet, advantageous technology and advantageous equipment"
