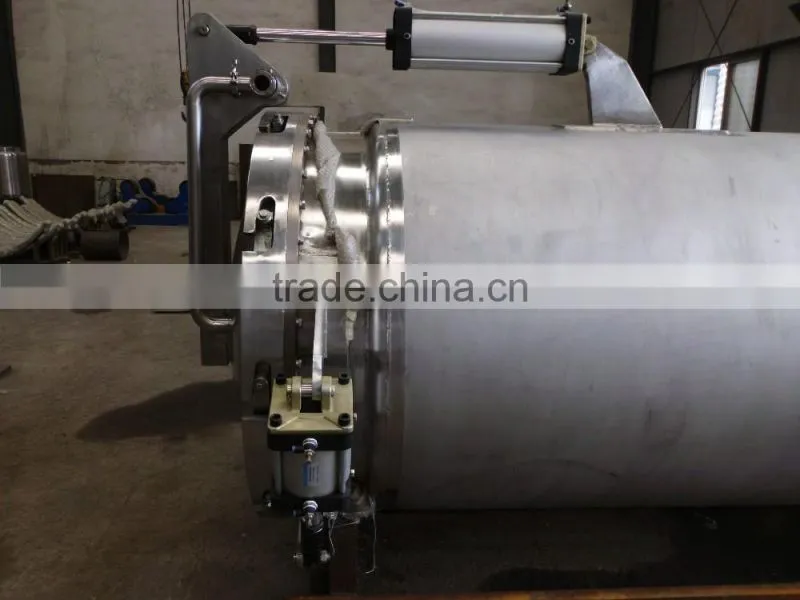

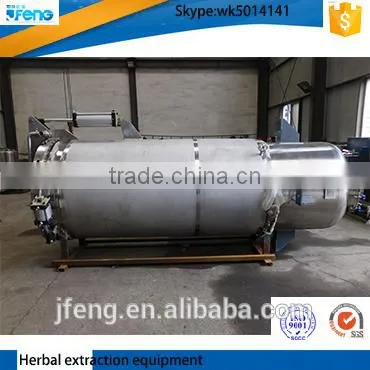

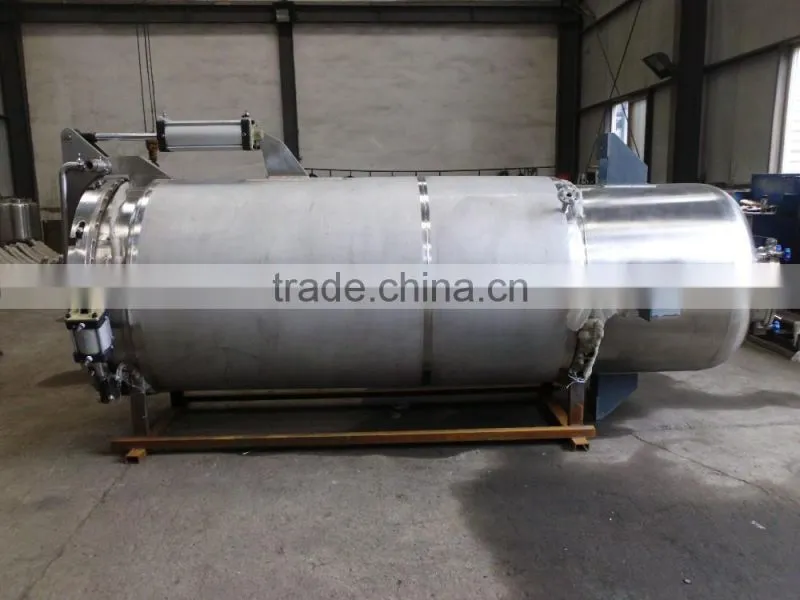

1000L TQ-Z Series herbal extraction equipment
- 30 Piece / Pieces per Month
- shanghai
- T/T D/P D/A
Product Details
Type: | Herbal Extract | Variety: | Other, Chicory Extract | Extraction Type: | Liquid-Solid Extraction |
Packaging: | Other, wooden case | Grade: | ISO9001 | Brand Name: | JFeng |
Model Number: | TQ_Z |
Product Description
TQ-Z Series multi-functional extracting tanks
Usage
Model and specification | TQ-Z-1 | TQ-Z-2 | TQ-Z-3 | TQ-Z-4 | TQ-Z-6 | TQ-Z-8 |
Volume | 1200 | 2300 | 3200 | 4300 | 6300 | 8500 |
Designed pressure inside pot(MPa) | 0.09 | |||||
Jacket design pressure(MPa) | 0.3 | |||||
Material imputting diameter(mm) | 400 | 400 | 400 | 500 | 500 | 500 |
heating area | 3 | 4.7 | 6.8 | 8 | 10 | 12 |
condensing area | 4 | 5.4 | 8 | 10 | 10 | 15 |
Cooling area | 1 | 1 | 1 | 1 | 2.2 | 2.2 |
Filtering area | 0.25 | 0.25 | 0.25 | 0.25 | 0.30 | 0.30 |
Residue exhausting diameter(mm) | 800 | 800 | 800 | 800 | 1000 | 1000 |
Steam cost(kg/h) | 285 | 346 | 570 | 660 | 718 | 903 |
Water cost(t/h) | 2.1 | 2.5 | 4.2 | 4.5 | 5.5 | 6.7 |
Heating steam orfice(mm) | 32 | 32 | 40 | 40 | 50 | 50 |
Gas exhausting orfice(mm) | 100 | 100 | 125 | 125 | 150 | 150 |
Cooling waterpipe atifice(mm) | 40 | 40 | 50 | 50 | 50 | 65 |
Motor power (KW) | 2 | 3 | 4 | 5.5 | 5.5 | 7.5 |
Agitating speed (r/min) | 24 | 24 | 24 | 36 | 36 | 36 |
The matching facilities include
Collecting machine, condenser,cooler, filter, oil-water separator and cylinder operating plate.
Jufeng enterprise is a professional diversfied machinery manufacturer integrating design, development,manufacturing,engineering installation,after-sales service,etc. The company took the lead among the industry in obtaining the National D-class "special equipment manufacturing license" and ISO9001:2000 international quality system certification.
Applications of our product:
About Delivery time
Q-----What’s the delivery term for making business with us?
A----- FOB, CFR & CIF optional; It’s mainly depend on client’s requirement;
About Lead Time
Q------What’s the lead time after placing order?
A------Usually it takes about 25~30 days after we received your deposit.
However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.
About Payment Term
Q------What’s the Payment Term?
A------ By T/T in Advance, or Irrevocable L/C at Sight.
Our equipments can be customized, leave an inquiry to know more details about price, packing, shipping and price.
